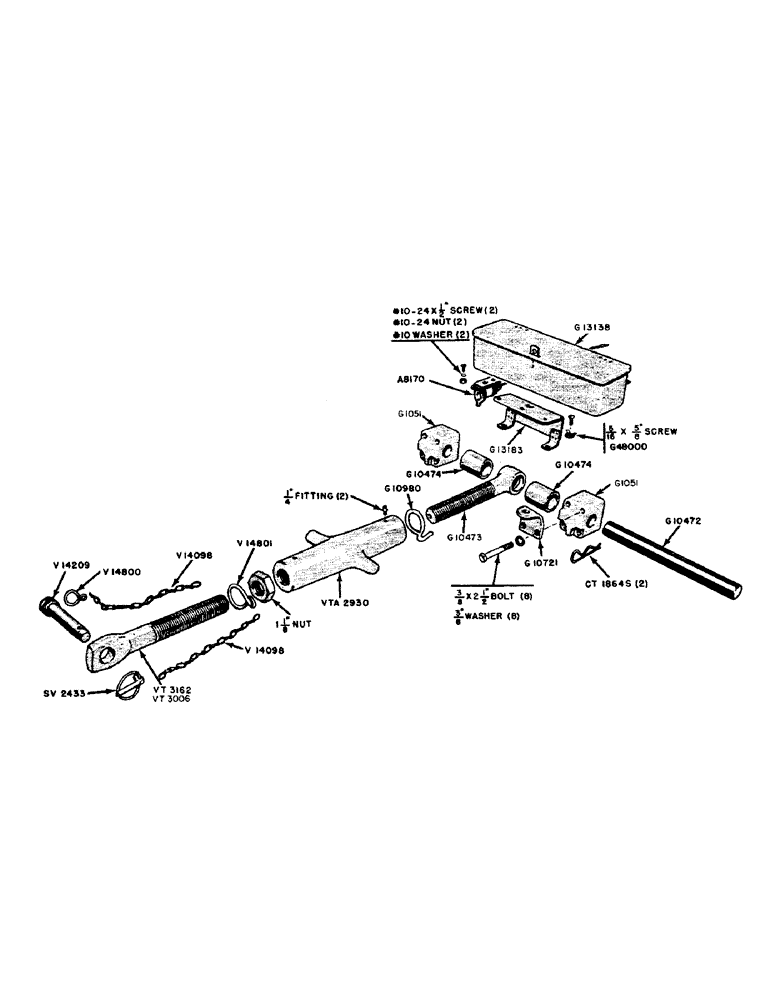

Запчасти Case IH 320 (102) - EAGLE HITCH TURNBUCKLE AND TOOL BOX (09) - CHASSIS/ATTACHMENTS

G1051

BRACKET - mounting, turnbuckle

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" hex. hd. bolt, UNC w/lockwasher

8шт.

G10472

SHAFT - turnbuckle pivot

1шт.

G10473

EYE - adjusting link, front

1шт.

G10474

SPACER

- pivot shaft (1-15/16" long)

1шт.

G10980

HOOK - turnbuckle carrying

1шт.

G13138

TOOL BOX

1шт.

G13183

BRACKET - tool box and link hook (w/E.H.)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/8" rd. hd. mach. screw N.C.

1шт.

G48000

X

NUT - tool box to bracket (5/16" cage nut)

1шт.

VT600

TURNBUCKLE (Use VTA2930)

1шт.

V14098

CHAIN - pin retaining (#4 Tenso, 9 links)

2шт.

V14209

X

PIN - mast

1шт.

V14800

"S" HOOK - small

1шт.

V14801

SET OF BELTS

"S" HOOK - large

1шт.

VT3006

EYE - rear adjusting

1шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.C. hex. nut

1шт.

VT3162

EYE - rear, long (Competitive implements)

1шт.

CT1864S

X

PIN - spring, pivot shaft retaining

2шт.

SV2433

X

RETAINING PIN AND RING ASSEMBLY (Klick pin)

1шт.

VTA2930

TURNBUCKLE WITH FITTINGS (Includes (2) 1/4" fitting straight drive Lincoln #5029)

1шт.
