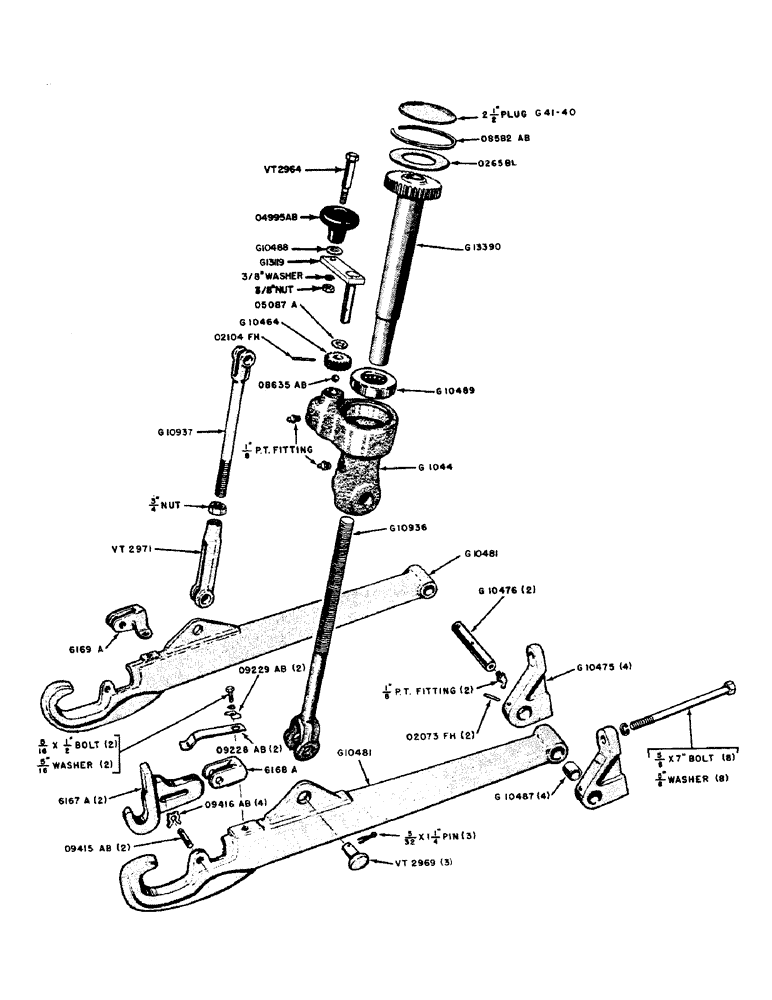

Запчасти Case IH 320 (098) - EAGLE HITCH DRAFT ARMS AND LIFT LINKS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
G1044
HOUSING - adjusting screw
1шт.
NSS
NOT SOLD SEPARAT
1/8" str. fitting (Lincoln #5000)
1шт.
NSS
NOT SOLD SEPARAT
1/8" str. safety vent fitting (Lincoln #5099)
1шт.
NSS
NOT SOLD SEPARAT
2-1/2" Welch plug
1шт.
G10464
GEAR - adjusting screw crank
1шт.
G10475
BRACKET
- draft arm mounting
4шт.
NSS
NOT SOLD SEPARAT
5/8" x 7" hex. hd. bolt, NC w/lockwasher
8шт.
G10476
PIN
- pivot, draft arm
2шт.
NSS
NOT SOLD SEPARAT
1/8" 67-1/2 degree fitting (Lincoln #5300)
2шт.
G10481
ARM - draft, includes 2 - G10487 bushings
2шт.
G10487
BUSHING
- draft arm pivot
4шт.
G10488
WASHER - thrust, adjusting crank
1шт.
G10489
THRUST BEARING
BEARING - thrust (Schotz #1219)
1шт.
G10936
YOKE
LINK - lift, adjusting screw, R.H.
1шт.
G10937
X
LINK - lift, L.H.
1шт.
G13119
CRANK - adjusting screw
1шт.
G13390
TUBE
GEAR - adjusting screw, w/tube
1шт.
6167A
X
LATCH - Eagle hitch
2шт.
6168A
X
LOCK - Eagle hitch latch, RH
1шт.
6169A
X
LOCK - Eagle hitch latch, LH
1шт.
O5087A
X
WASHER - thrust, crank gear
1шт.
O4995AB
X
KNOB - hand spinner, adjusting crank
1шт.
O8582AB
X
SNAP RING - upper housing
1шт.
O8635AB
X
BALL - crank bearing
1шт.
O9228AB
X
SPRING - latch, Eagle hitch
2шт.
O9229AB
X
RETAINER - latch spring
2шт.
NSS
NOT SOLD SEPARAT
5/16" x 1/2" hex. hd. bolt, NC w/lockwasher
2шт.
O9415AB
X
PIN - latch, draft arm
2шт.
O9416AB
X
SNAP RING - retainer, latch pin
4шт.
O265BL
WASHER - adjusting screw gear (2-1/2" OD x 1-15/16" ID #14 Ga.) See 10785K
1шт.
O2073FH
X
ROLL PIN - pivot pin retaining (1/4" x 2-1/4")
4шт.
O2104FH
X
ROLL PIN - crank gear (5/32" x 7/8")
1шт.
VT2964
BOLT - spinner knob
1шт.
NSS
NOT SOLD SEPARAT
3/8" hex. nut, NC and lockwasher
1шт.
VT2969
X
PIN - yoke, lift link
3шт.
NSS
NOT SOLD SEPARAT
5/32" x 1-1/4" cotter pin
3шт.
VT2971
YOKE - lift link
1шт.
NSS
NOT SOLD SEPARAT
3/4" N.F. hex. jam nut
1шт.
Выбрано товаров: 38
