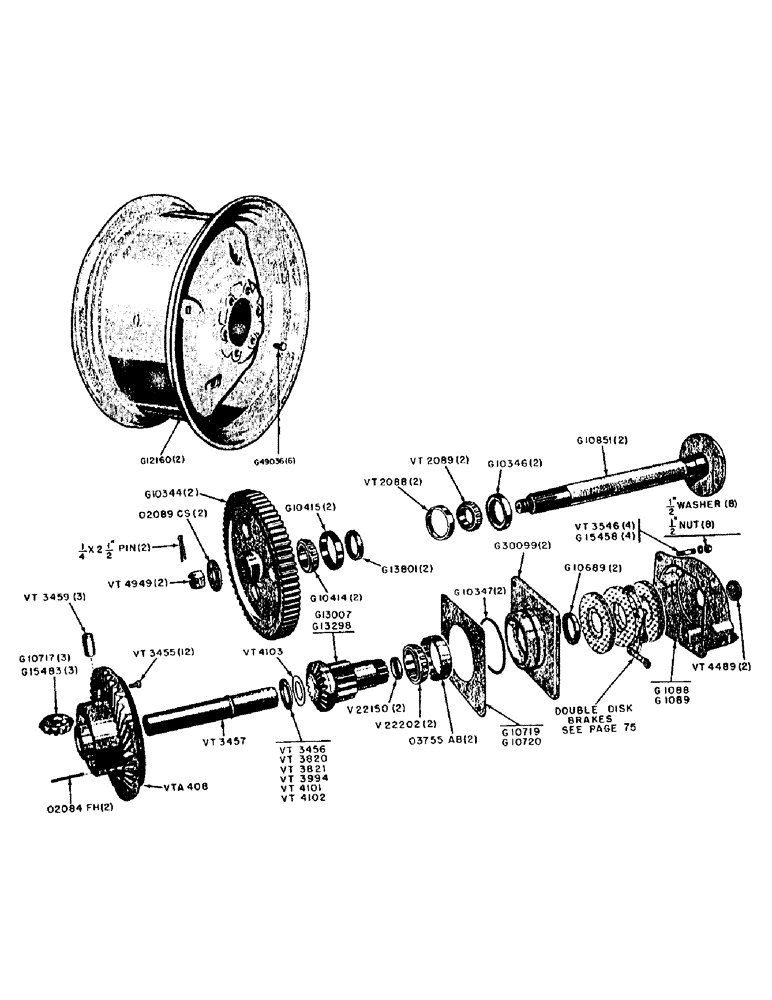

Запчасти Case IH 320 (072) - DIFFERENTIAL AND FINAL DRIVE (06) - POWER TRAIN

G1070

CARRIER - differential bearing (Use G30009)

1шт.

G1088

COVER - brake, RH

1шт.

G1089

COVER - brake, LH

2шт.

G10344

GEAR - final drive (66T)

2шт.

G10346

OIL SEAL

OIL SEAL - outer, rear axle

2шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier (5-1/4" dia.)

2шт.

G10414

ROLLER BEARING

CONE - inner bearing, rear axle (Timken #388A)

2шт.

G10415

BEARING CUP

CUP - inner bearing, rear axle (Timken #383A)

2шт.

G10689

SEAL

OIL SEAL - bearing carrier

2шт.

G10717

GEAR - pinion, differential (Before tractor #6098668) see G15483

3шт.

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

G10851

AXLE - rear, flanged

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 2-1/2" cotter pin

2шт.

G13007

GEAR - differential side, includes plug (Before tractor #6098668) see G13298

2шт.

G13298

GEAR - side (Tractor #6098668 and after) see G13007

2шт.

G13801

OIL SEAL

OIL SEAL - housing inner

2шт.

G15458

STUD

- brake cover to transmission (1/2" x 4-1/2")

4шт.

NSS

NOT SOLD SEPARAT

1/2" hex. nut, NF and lockwasher

4шт.

G15483

GEAR

- pinion (Tractor #6098668 and after) see G10717

3шт.

G30099

CARRIER - differential bearing (Includes O3755AB bearing cup)

2шт.

VT211

WHEEL - center (Use VTA408)

1шт.

O3755AB

X

CUP - bearing, carrier (Timken #394A)

2шт.

O2089CS

X

WASHER - axle take-up inner

2шт.

O2084FH

X

ROLL PIN - differential pinion shaft (3/16" x 1-7/8")

3шт.

V22150

CAP

PLUG - differential side gear

2шт.

V22202

BELLCRANK

CONE - bearing, carrier (Timken #390)

2шт.

VT2088

X

CUP - outer bearing, axle (Timken #28920)

2шт.

VT2089

X

CONE - outer bearing, axle (Timken #28985)

2шт.

VT3455

RIVET - ring gear

12шт.

VT3456

X

WASHER - thrust, center wheel (.094")

1шт.

VT3457

SHAFT - differential cross

1шт.

VT3459

SHAFT - differential pinion gear

3шт.

VT3546

X

STUD - brake cover to transmission (1/2" x 2-1/2")

4шт.

NSS

NOT SOLD SEPARAT

1/2" hex. nut, NF and lockwasher

4шт.

VT3820

WASHER - thrust, center wheel (.099")

1шт.

VT3821

WASHER - thrust, center wheel (.104")

1шт.

VT3994

WASHER - thrust, center wheel (.089")

1шт.

VT4101

WASHER - thrust, center wheel (.109")

1шт.

VT4102

X

WASHER - thrust, center wheel (.119")

1шт.

VT4103

WASHER

SHIM - thrust washer (.010")

1шт.

VT4489

X

PLUG - button, brake cover

2шт.

VT4949

X

NUT - axle (1-1/2" NF hex. slotted)

2шт.

VTA408

RING GEAR AND CENTER WHEEL ASSEMBLY

1шт.

G1118

WEIGHT - rear wheel (75 lbs.) see G12071M and G12072M

2шт.

G12071M

WEIGHT - wheel (Set of 2 w/bolts) (Mchy. item), rear

1шт.

G12072M

WEIGHT - wheel (Set of 2 w/long bolts for use as second pair) (Mchy. item), rear

1шт.

G12160

WHEEL - rear, complete with rim (13" x 24" tire)

2шт.

G49036

WHEEL BOLT

BOLT - wheel to hub, rear

12шт.
