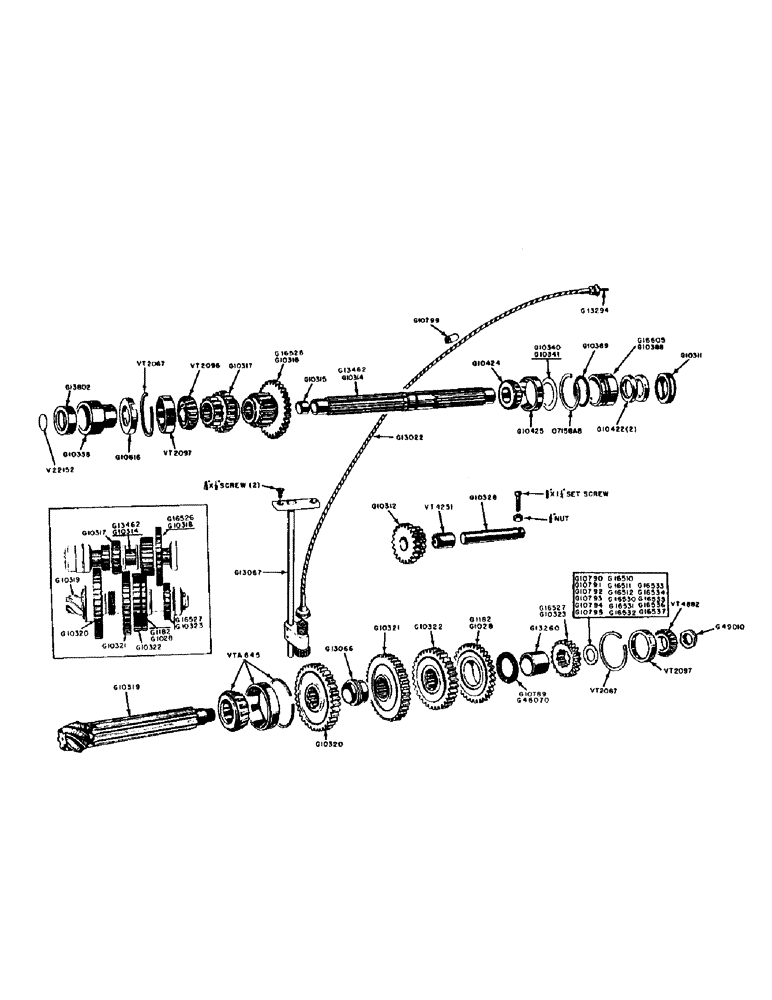

Запчасти Case IH 320 (070) - TRANSMISSION SHAFT AND GEARS (06) - POWER TRAIN

G1182

X

GEAR - countershaft, oil slinger (38T)

1шт.

G10311

COLLAR

- cover pilot, w/4 speed transmission

1шт.

G10312

GEAR

- reverse idler w/bushing (Not used w/shuttle)

1шт.

G10314

SHAFT - main drive, includes G10315 bushing (See G13462)

1шт.

G10315

BUSHING

- mainshaft rear

1шт.

G10317

GEAR WHEEL

GEAR - mainshaft, 1st (16T), 2nd (21T)

1шт.

G10319

COUNTERSHAFT AND DRIVE PINION

1шт.

G10320

X

GEAR - countershaft, 1st speed (47T)

1шт.

G10321

GEAR WHEEL

GEAR - countershaft, 2nd speed (42T)

1шт.

G10322

GEAR

- countershaft, 3rd speed (38T)

1шт.

G10328

SHAFT

- reverse idler gear (Not used w/shuttle)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" set screw, sq. hd. dog point UNC w/lockout

1шт.

G10338

HOUSING

- mainshaft rear oil seal

1шт.

G10340

SHIM,.007" Thk

Bearing adjusting .007" Thk

1шт.

G10341

SHIM,.005" Thk

Bearing adjusting .005" Thk

1шт.

G10388

HOUSING - mainshaft oil seal (Front) (See G16605)

1шт.

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

"O" RING - oil seal carrier (2-7/8" O.D.)

1шт.

G10422

OIL SEAL

OIL SEAL - combination

2шт.

G10424

CONE

- bearing (Timken #18587)

1шт.

G10425

CUP

- bearing (Timken #18520)

1шт.

G10616

CUP

- mainshaft oiling

1шт.

G10790

SPACER

- selective gear (.164")

1шт.

G10791

SPACER

- selective gear (.174")

1шт.

G10792

SPACER

- selective gear (.184")

1шт.

G10793

SPACER

- selective gear (.194")

1шт.

G10794

SPACER

- selective gear (.204")

1шт.

G10795

SPACER

- selective gear (.214")

1шт.

G10799

SEAL

SEAL - speedometer cable

1шт.

G13022

CABLE

HOUSING - speedometer drive, includes cable

1шт.

G13066

GEAR - speedometer drive and spacer, assembly

1шт.

G13067

DRIVE - speedometer assembly

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" flat head Phillips screw UNC

2шт.

G13260

BUSHING

SPACER - gear (2-1/8" O.D. x 1-1/4")

1шт.

G13294

X

CABLE - speedometer drive

1шт.

G13462

SHAFT

- main drive, includes G10315 bushing (w/shuttle transmission)

1шт.

G13802

OIL SEAL

OIL SEAL - mainshaft rear

1шт.

G16510

SPACER

- selective gear (.224")

1шт.

G16511

SPACER

- selective gear (.234")

1шт.

G16512

SPACER

- selective gear (.244")

1шт.

G16526

GEAR WHEEL

GEAR - mainshaft, 3rd (25T), 4th (44T)

1шт.

G16527

GEAR

- countershaft, 4th speed (19T)

1шт.

G16530

SPACER

- selective gear (.169")

1шт.

G16531

SPACER

- selective gear (.179")

1шт.

G16532

SPACER

- selective gear (.189")

1шт.

G16533

SPACER

- selective gear (.199")

1шт.

G16534

X

SPACER - selective gear (.209")

1шт.

G16535

SPACER

- selective rear (.219")

1шт.

G16536

SPACER

- selective gear (.229")

1шт.

G16537

X

SPACER - selective gear (.239")

1шт.

G16605

HOUSING

- mainshaft oil seal (Front)(w/shuttle transmission)

1шт.

G46070

WASHER

- retaining, oil slinger (2-3/8" OD x 1-5/16" ID x 1/8")

1шт.

G49010

LOCK NUT

- countershaft adjsuting

1шт.

O7158AB

X

SNAP RING - oil seal housing, front

1шт.

V22152

CAP

PLUG - expansion (1-1/2" dia.)

1шт.

VT2067

X

SNAP RING

2шт.

VT2096

X

CONE - bearing (Timken #14137-A)

2шт.

VT2097

X

CUP - bearing (Timken #14276)

2шт.

VT4251

X

BUSHING - reverse idler (See G10312) (Not used w/shuttle)

1шт.

VT4882

X

CONE - bearing (Timken #14116)

1шт.

VTA645

X

BEARING - countershaft, rear (Includes cup, cone and snap ring)

1шт.
