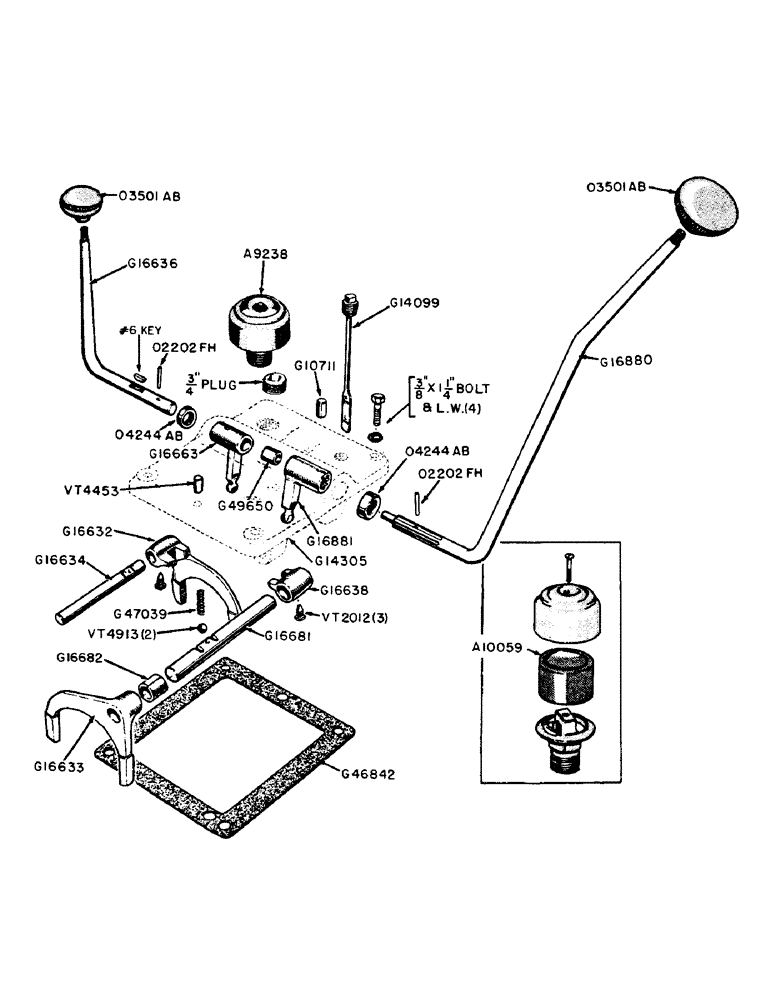

Запчасти Case IH 320 (062) - SHUTTLE TRANSMISSION CONTROL COVER (06) - POWER TRAIN

A9238

BREATHER

- oil, control cover

1шт.

A10059

FILTER, ELEMENT

ELEMENT - A9238 breather

1шт.

G1207

COVER - (Use G14305)

1шт.

G1257

COVER - (Use G14305)

1шт.

G10711

PIN

- dowel, rear of control cover (1/2" x 3/4")

1шт.

G14099

TUBE,1.5, 3.562" L

DIPSTICK - oil level

1шт.

G14305

COVER - control (Includes G49650 bushing and 1/8" pipe plug)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" NC hex. hd. bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/4" ctsk. hd. pipe plug

1шт.

G16632

FORK

- shift, low and direct range

1шт.

G16633

FORK

- shift, shuttle

1шт.

G16634

RAIL

- shift, low and direct range

1шт.

G16636

LEVER - shift control, low range

1шт.

NSS

NOT SOLD SEPARAT

#6 Woodruff key

1шт.

G16638

LUG

- shuttle shift lever rail

1шт.

G16663

LEVER - shift fork, low range (Also used with shuttle control lever having keyway)

1шт.

G16681

X

RAIL - shift, shuttle (See kits listed below)

1шт.

G16682

X

SPACER - shift rail, shuttle

1шт.

G16880

LEVER - shift rail, shuttle (See G14327 and G14328 kits listed below)

1шт.

G16881

LEVER - shift fork, shuttle (See G16663)

1шт.

G46842

GASKET

- control cover to torque tube

1шт.

G47039

SPRING

- shift rail detent

2шт.

G49650

BUSHING - control lever, splined

1шт.

O3501AB

X

KNOB - control lever

2шт.

O4244AB

OIL SEAL - control lever

2шт.

O2202FH

X

ROLL PIN - control lever (3/32" x 1")

1шт.

VT2012

X

SCREW - lock, shift fork and lug

3шт.

VT4453

X

PIN - dowel, front of control cover (3/8" x 3/4")

1шт.

VT4913

X

BALL - detent, shift rail interlock

2шт.

G14327

KIT - shuttle shift control lever (Contains G16880 control lever, G16881 fork shift lever and G49650 bushing) see note

1шт.

G14328

KIT - shuttle shift control lever (Contains G16880 control lever, G16881 fork shift lever, G49650 bushing, G16681 shift rail and G16682 shift rail spacer) see note

1шт.
