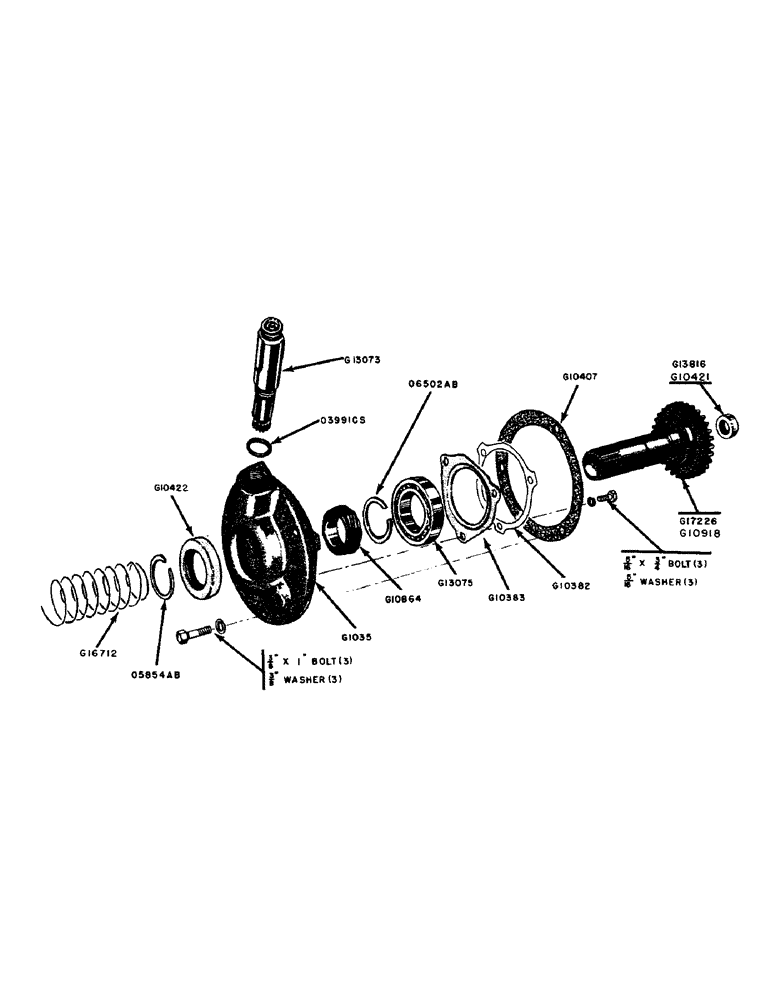

Запчасти Case IH 320 (059) - HYDRAULIC PUMP AND TACHOMETER DRIVE HOUSING (06) - POWER TRAIN

G1035

HOUSING - hydraulic pump and tachometer drive

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" UNC hex. bolt and lockwasher

3шт.

G10382

LOCK

- bearing retainer bolt

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" UNC hex. bolt w/lockwasher

3шт.

G10383

BEARING CAP

CAP - bearing retainer

1шт.

G10407

GASKET

- pump drive housing

1шт.

G10421

OIL SEAL

- hydraulic, drive gear (Before tractor #6097696) see G13816

1шт.

G10422

OIL SEAL

OIL SEAL - drive housing

1шт.

G10864

GEAR - tachometer drive

1шт.

G10918

GEAR - hydraulic pump drive (Before tractor #6097696) see G17226

1шт.

G13073

TACHOMETER DRIVE SLEEVE AND GEAR ASSEMBLY

1шт.

G13075

BEARING, BALL

BEARING - hydraulic, drive gear (N.D. 3L07)

1шт.

G13816

OIL SEAL

OIL SEAL - hydraulic drive gear (Tractor #6097696 and after) see G10421

1шт.

G16712

VALVE SPRING

SPRING - release bearing carrier

1шт.

G17226

GEAR WHEEL

GEAR - hydraulic pump drive (Tractor #6097696 and after) see G10918

1шт.

O5854AB

X

SNAP RING

1шт.

O6502AB

RING, SNAP

SNAP RING

1шт.

O3991CS

X

"O" RING - tachometer drive sleeve seal

1шт.
