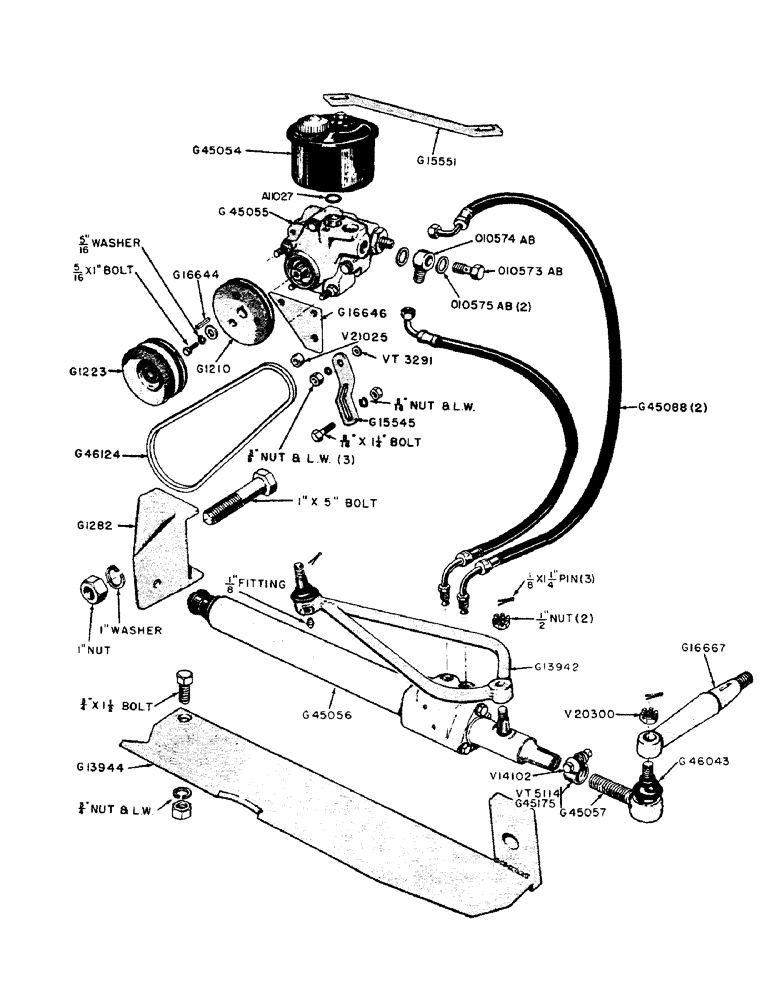

Запчасти Case IH 320 (084) - POWER STEERING ATTACHMENT DIESEL ENGINE (05) - STEERING
№
Артикул
Название
Примечание
Количество
A8248
PLATE - name (Under steering wheel nut)
1шт.
A11027
GASKET
"O"RING -, Serial Range: reservoir-pump
2шт.
G1210
BULB
PULLEY - hydraulic pump
1шт.
NSS
NOT SOLD SEPARAT
5/16" x 1" NC hex. hd. bolt w/lockwasher and plain washer
1шт.
G1223
PULLEY - double, generator
1шт.
G1282
BRACKET - mounting, cylinder assembly
1шт.
NSS
NOT SOLD SEPARAT
1" x 5" NF hex. hd. bolt w/hex. nut and lockwasher
1шт.
G13942
DRAG LINK - center steering, Serial Range: arm-cylinder
1шт.
NSS
NOT SOLD SEPARAT
1/8" str. fitting (Lincoln #5000)
1шт.
NSS
NOT SOLD SEPARAT
1/8" x 1-1/4" cotter pin
1шт.
NSS
NOT SOLD SEPARAT
1/2" NF slotted hex. nut
1шт.
G13944
GUARD - cylinder and valve
1шт.
NSS
NOT SOLD SEPARAT
3/4" x 1-1/2" NC hex. hd. bolt w/hex. nut and lockwasher
1шт.
G15545
STRAP - pump adjusting
1шт.
NSS
NOT SOLD SEPARAT
3/8" NF hex. nut and lockwasher
1шт.
NSS
NOT SOLD SEPARAT
5/16" x 1-1/4" NC hex. hd. bolt w/lockwasher
1шт.
G15551
BRACE - pump
1шт.
G16644
KEY -, Serial Range: pulley-pump
1шт.
G16646
PLATE - mounting, hydraulic pump
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1-3/4" NF hex. hd. bolt w/hex. nut and lockwasher
1шт.
G16667
X
ARM - steering, tie rod end to LH spindle
1шт.
G45054
RESERVOIR
- oil, power steering
1шт.
G45055
PUMP - hydraulic, power steering
1шт.
G45056
CYLINDER
AND VALVE - hydraulic, power steering
1шт.
G45057
X
END - tie rod, cylinder to LH steering arm
1шт.
NSS
NOT SOLD SEPARAT
1/8" str. fitting (Lincoln #5000)
1шт.
NSS
NOT SOLD SEPARAT
1/8" x 1-1/4" cotter pin
1шт.
G45088
TUBE ASSY.
HOSE - pump to cylinder valve (54" long)
2шт.
G45175
CLAMP
- tie rod end to cylinder (1-1/4" I.D.) (Includes 1/2" x 2-1/4" NF hex. hd. bolt w/hex. nut and lockwasher
1шт.
G46043
COVER
- dust, tie rod end
1шт.
G46124
V-BELT,0.40" W x 6.00" L
Drive, Power Steering Pump 0.40" W x 6.00" L
1шт.
O10573AB
BOLT - hose to pump fitting
1шт.
O10574AB
FITTING - pump hose
1шт.
O10575AB
WASHER - hose fitting
2шт.
V14102
SEAL KIT
BOLT - for VT5114 clamp
1шт.
NSS
NOT SOLD SEPARAT
5/16" NF hex. nut and lockwasher
1шт.
V20300
OPERATOR MANUAL
NUT - tie rod end
1шт.
V21025
SPACER
- adjusting strap and mounting plate
1шт.
VT3291
X
WASHER - spacer, brace and adjusting strap
1шт.
VT5114
CLAMP
- tie rod end to cylinder (7/8" I.D.) See G45175
1шт.
Выбрано товаров: 40
