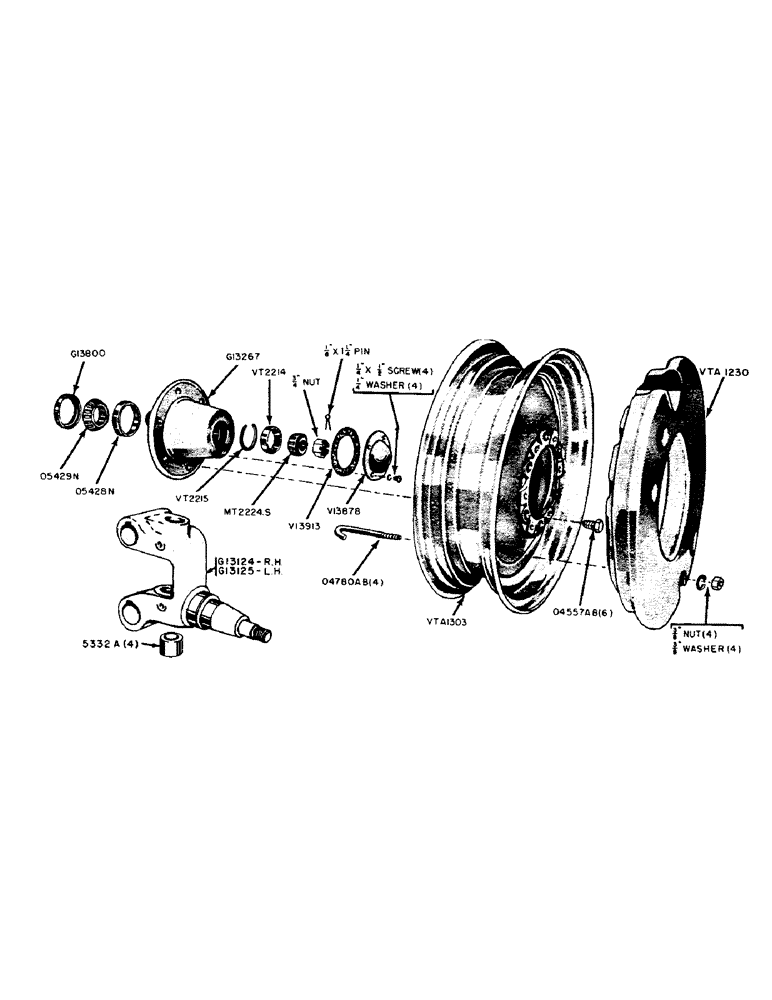

Запчасти Case IH 320 (082) - FRONT WHEEL, HUB AND SPINDLE, STANDARD (05) - STEERING

G13124

SPINDLE

- R.H. wheel (Includes 2-5332A bushings)

1шт.

NSS

NOT SOLD SEPARAT

1/8" 45 degree fitting (Lincoln #5200)

2шт.

NSS

NOT SOLD SEPARAT

3/4" NF slotted hex. nut

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

G13125

SPINDLE - L.H. wheel (Includes 2-5332A bushings)

1шт.

NSS

NOT SOLD SEPARAT

1/8" 45 degree fitting (Lincoln #5200)

2шт.

NSS

NOT SOLD SEPARAT

3/4" NF slotted hex. nut

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

G13267

HUB - front wheel (Includes bearing cups and snap rings)

2шт.

G13800

SEAL

- inner, wheel hub

2шт.

5332A

X

BUSHING - king pin

4шт.

O4557AB

BOLT -, Serial Range: wheel-hub

12шт.

O4780AB

BOLT - hook, wheel weight

8шт.

NSS

NOT SOLD SEPARAT

3/8" NC hex. nut and lockwasher

8шт.

O5428N

X

CUP - inner bearing (Timken #13621)

2шт.

O5429N

X

CONE - inner bearing (Timken #13685)

2шт.

V13878

CAP - wheel hub

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" NC rd. hd. mach. screw w/lockwasher

8шт.

V13913

X

GASKET - hub cap

2шт.

VT546

HUB (Use G13267)

1шт.

VT624

WEIGHT - wheel (Use VTA1230)

1шт.

VT2214

X

CUP - outer bearing (Timken #O9195)

2шт.

VT2215

X

SNAP RING - wheel hub

2шт.

VTA1230

WEIGHTS - wheel (Set of 2 w/bolts)

1шт.

VTA1303

X

WHEEL FRONT (6.00 x 16 tires)

2шт.

MT2224S

X

CONE - outer bearing (Timken #O9081)

2шт.
