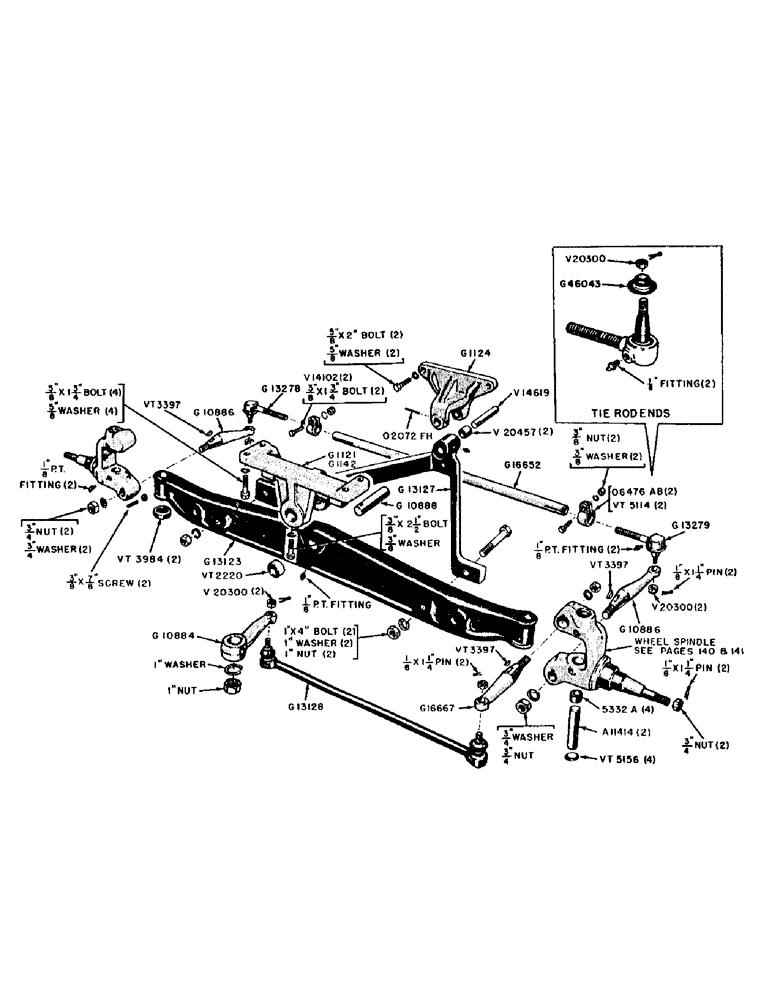

Запчасти Case IH 320 (080) - HEAVY DUTY FRONT AXLE (05) - STEERING

A11414

AXLE PIN,25.02mm OD x 152.4mm L

KING PIN - wheel spindle

2шт.

G1121

SUPPORT - front pivot (See G1142) (Gasoline)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" NC hex. hd. bolt w/lockwasher

4шт.

G1124

BRACKET - rear pivot, radius rod

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" NC hex. hd. bolt w/lockwasher

2шт.

G1142

SUPPORT - front (Diesel)

1шт.

G10884

ARM - center steering -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

G10886

ARM

- tie rod, Serial Range: ends-spindles

2шт.

NSS

NOT SOLD SEPARAT

3/4" NF hex. jam nut

2шт.

G10888

PIN

- axle pivot

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" NC hex. hd. bolt w/lockwasher

1шт.

G13123

AXLE - front (Includes VT2220 pivot bushing)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 7/8" NC headless set screw w/hex. jam nut

2шт.

G13127

RADIUS ROD (Includes 2-V20457 pivot bushings)

1шт.

NSS

NOT SOLD SEPARAT

1" x 4" NF hex. hd. bolt w/hex. nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

G13128

X

DRAG LINK - center arm to LH spindle arm (23-1/4)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

2шт.

G13278

X

END - RH, tie rod

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

G13279

X

END - LH, tie rod

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

G16652

TUBE - tie rod 1" OD x 38.375" L

1шт.

G16667

X

ARM - drag link to LH spindle

1шт.

G46043

COVER

SEAL - dust, drag link and tie rod ends

4шт.

5332A

X

BUSHING - king pin, wheel spindle

4шт.

O6476AB

X

CLAMP - tie rod end (For 1" dia. tie rod) see VT5114

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NF hex. hd. bolt w/hex. nut and lockwasher

2шт.

O2072FH

X

ROLL PIN - radius rod pivot pin V14619 (1/4" x 2)

1шт.

V14102

SEAL KIT

BOLT - VT5114 clamp

2шт.

NSS

NOT SOLD SEPARAT

5/16" NF hex. nut and lockwasher

2шт.

V14619

PIN - pivot, radius rod rear

1шт.

V20300

OPERATOR MANUAL

NUT - drag link and tie rod ends

4шт.

V20457

X

BUSHING - pivot, radius rod

2шт.

VT2220

X

BUSHING - axle pivot

1шт.

VT3397

KEY - steering arm to wheel spindle

3шт.

VT3984

X

BEARING - thrust, wheel spindle (Timken #T-101)

2шт.

VT5114

CLAMP

- tie rod end (For 7/8" dia. tie rod) See O6476AB

2шт.

VT5156

PLUG - king pin, wheel spindle

4шт.
