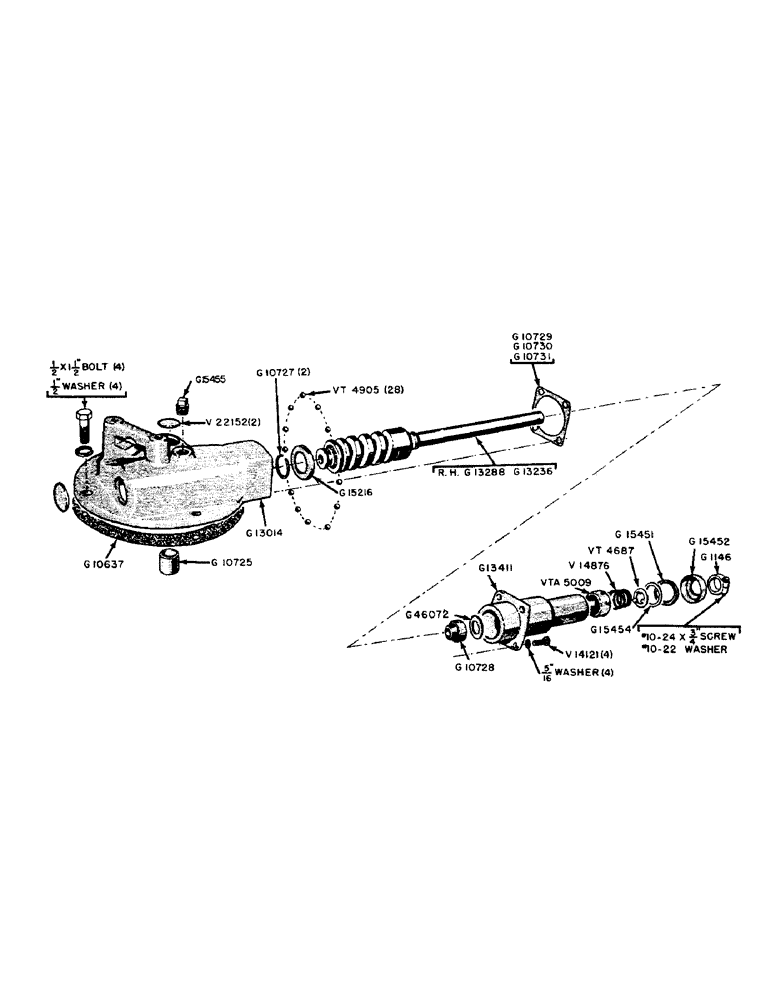

Запчасти Case IH 320 (077) - STEERING GEAR, CAM AND LEVER HOUSING (05) - STEERING

G1055

HOUSING (Use G13014)

1шт.

G1146

CLAMP - retaining, steering shaft

1шт.

NSS

NOT SOLD SEPARAT

#10-24 x 3/4" filister hd. mach. screw w/#1022 lockwasher

1шт.

G10637

GASKET

- steering housing

1шт.

G10725

BUSHING

- steering housing

1шт.

G10727

RING

- retaining, bearing cup

2шт.

G10728

SEAL

OIL SEAL - steering cam shaft (See G13411)

1шт.

G10729

SHIM,.003" Thk

Housing cover .003" Thk

1шт.

G10730

SHIM,.010" Thk

Housing cover .010" Thk

1шт.

G10731

SHIM,.002" Thk

Housing cover .002" Thk

1шт.

G13014

HOUSING - steering, includes G10725 bushing

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" hex. hd. bolt, NC w/lockwasher

1шт.

G13236

X

STEERING CAM AND SHAFT (For 2 stud lever)

1шт.

G13288

CAM

STEERING CAM AND SHAFT (For 3 stud lever)

1шт.

G13411

COVER - housing, steering shaft, includes G10728 oil seal, tube and gasket

1шт.

G15216

CUP ASSY.

CUP - bearing, steering cam

2шт.

G15451

FELT

SEAL - felt, outboard bearing

1шт.

G15452

CUP ASSY.

CUP - felt seal

1шт.

G15454

WASHER

- protective, G15451 felt seal

1шт.

G15455

PLUG - vented, steering housing (3/8" P.T.)

1шт.

G46072

GASKET

GASKET - for G10728 oil seal

1шт.

V14121

SPRING

BOLT - housing cover (5/16" x 3/4" NC)

4шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher

4шт.

V14876

ARM

SPRING - bearing, steering shaft

1шт.

V22152

CAP

PLUG - expansion (1-1/2" dia.)

2шт.

VT4687

WASHER

SEAT - spring, steering shaft bearing

1шт.

VT4905

X

BALL - cam bearing (5/16")

28шт.

VTA5009

X

BEARING ASSEMBLY - steering shaft

1шт.
