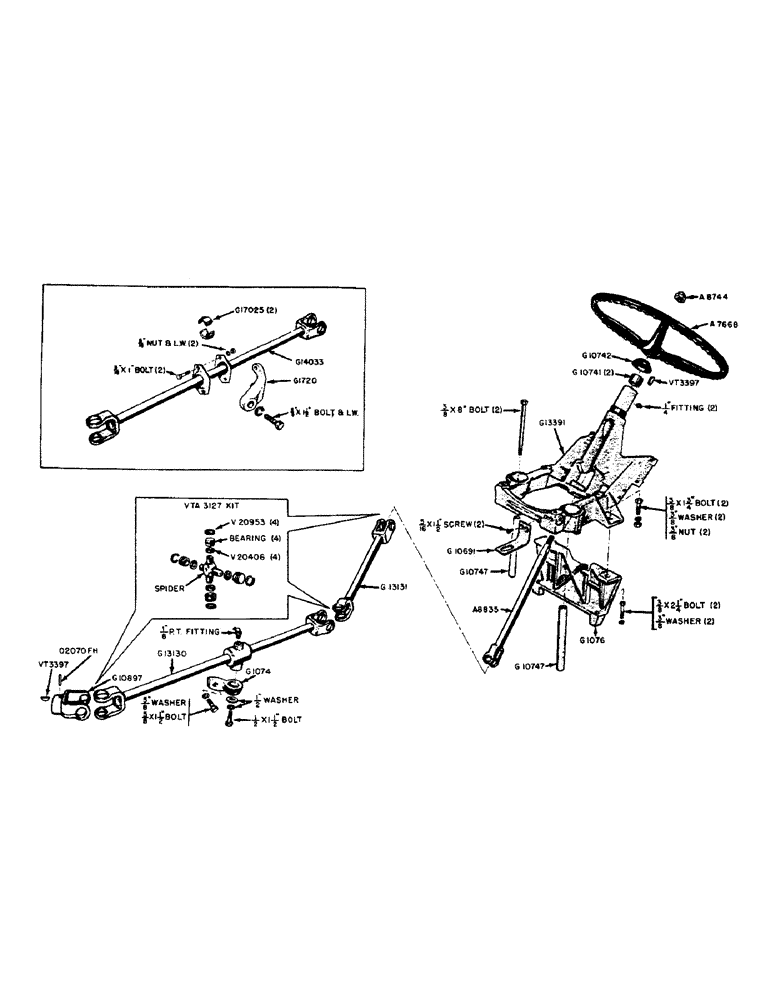

Запчасти Case IH 320 (076) - STEERING WHEEL SHAFTS AND UNIVERSALS (05) - STEERING

A7668

WHEEL

- steering (17-3/8" O.D.)

1шт.

A8248

PLATE - name (Power steering)

1шт.

A8744

NUT

- steering, Serial Range: wheel-shaft

1шт.

A8835

SHAFT - upper, includes yokes

1шт.

G1074

SUPPORT - bearing, lower shaft (Before tractor #6108203)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" NC hex. hd. bolt w/lockwasher

1шт.

G1075

SUPPORT (Use G13391)

1шт.

G1076

BRACKET - rear mounting, steering support

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/4" NC hex. hd. bolt w/hex. nut and lockwasher

2шт.

G1184

SUPPORT (Use G13391)

1шт.

G1720

SUPPORT - bearing, lower shaft (Tractor #6108203 and after)

1шт.

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- steering shaft

2шт.

G10742

SEAL

DUST SEAL - upper steering shaft

1шт.

G10747

PIPE - front support 0.75" OD x 7.375" L

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 8" NC hex. hd. bolt

2шт.

G10897

YOKE

- front universal joint

1шт.

G13130

SHAFT - lower, includes yokes and bearing (Before tractor #6108203)

1шт.

NSS

NOT SOLD SEPARAT

1/8" 45 degree fitting (Lincoln #5200)

1шт.

G13131

SHAFT - intermediate, includes yokes

1шт.

G13391

SUPPORT - steering shaft (Includes 2-G10741 bushings)

1шт.

NSS

NOT SOLD SEPARAT

1/4" Str. fitting (Lincoln #5013)

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NF hex. hd. bolt w/hex. nut and lockwasher

2шт.

G14033

SHAFT - lower, includes yokes and bearing holders (Tractor #6108203 and after)

1шт.

G17025

CYLINDER END CAP

BEARING HALF - G14033 shaft (Tractor #6108203 and after)

2шт.

O2070FH

X

ROLL PIN - front universal yoke (1/4" x 1-1/2")

1шт.

V20406

BUSHING

WASHER - cork (See VTA3127)

12шт.

V20953

ROD

SNAP RING (See VTA3127)

12шт.

VT3397

KEY (Woodruff) wheel and, Serial Range: yoke-shaft

2шт.

VTA3127

X

Universal joint and spider kit (Includes spider, 4-bearings, 4-V20406 washers and 4-V20953 snap rings)

3шт.
