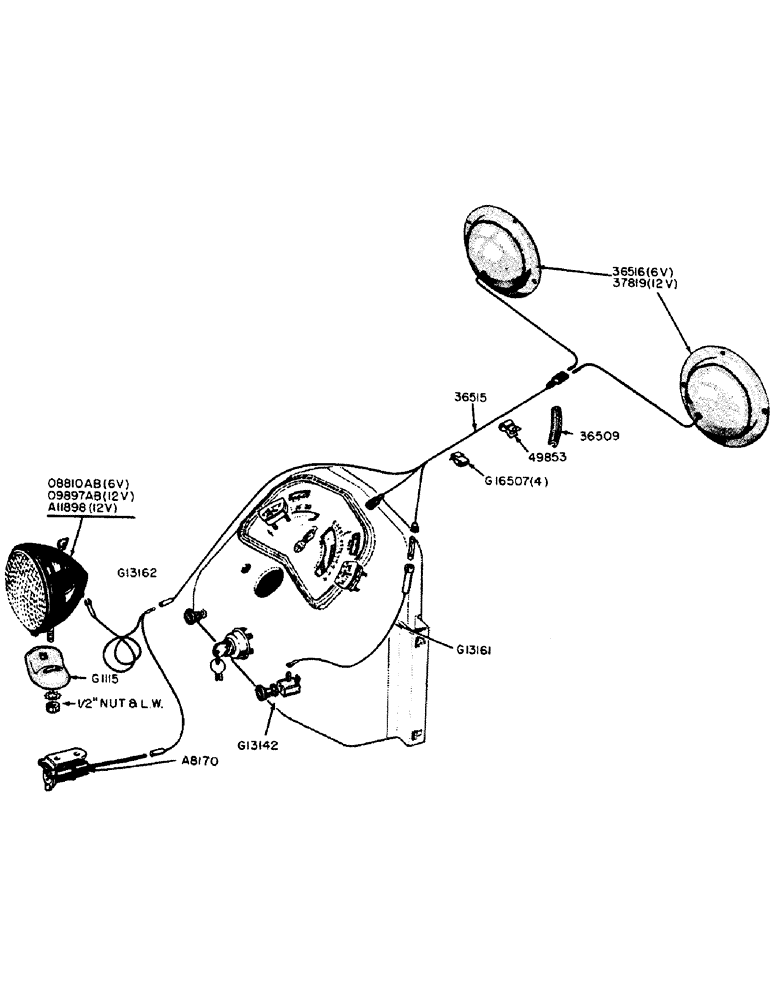

Запчасти Case IH 320 (050) - ELECTRIC LIGHTING (04) - ELECTRICAL SYSTEMS

36509

MOLDING - rubber, shroud baffle

LID

1шт.

36515

SPARE PART

CABLE - extension, head lamp (Includes snap coupler)

1шт.

36516

X

LAMP - head, R.H. and L.H. (6 volt)

2шт.

37819

LAMP - head, R.H. and L.H. (12 volt)

2шт.

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

CLIP - extension cable to hood

1шт.

A8170

SOCKET

- electrical outlet

1шт.

NSS

NOT SOLD SEPARAT

#10 - 24 x 1/2" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

A11898

X

LAMP - combination flood and tail (12 volt) see 09897AB (See Figures 52 and 53 for difference)

1шт.

NSS

NOT SOLD SEPARAT

1/2" NC hex. nut and lockwasher

1шт.

G1115

BRACKET

- flood and tail lamp

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" carriage bolt w/hex. nut and lockwasher

1шт.

G13142

IGNITION SWITCH

SWITCH - light

1шт.

G13161

CABLE - light switch to extension cables

1шт.

G13162

CABLE - tail lamp and outlet socket

1шт.

G16587

CLIP - lamp cables

4шт.

O8810AB

LAMP

- combination flood and tail (6 volt)

1шт.

NSS

NOT SOLD SEPARAT

1/4" NC hex. nut and lockwasher

1шт.

O9897AB

X

LIGHT - combination flood and tail (12 volt) see A11898 (See Figures 52 and 53)

1шт.
