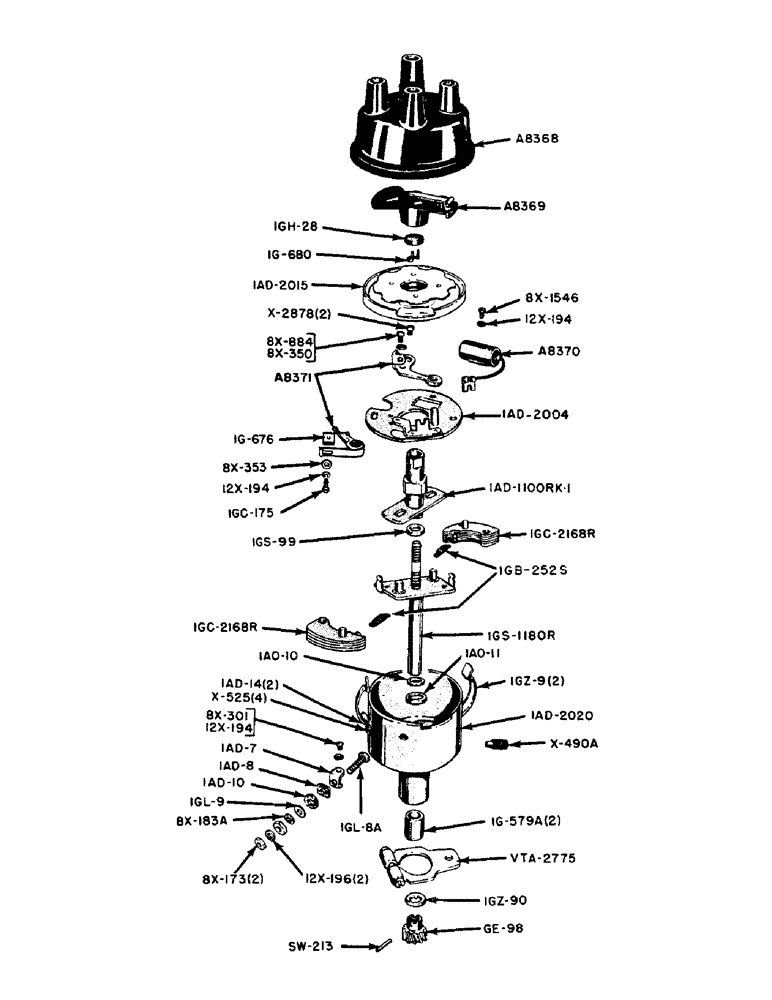

Запчасти Case IH 320 (048) - G11051 DISTRIBUTOR, AUTO-LITE #IAD-6003-2J (04) - ELECTRICAL SYSTEMS

A8368

CAP

ASSEMBLY - distributor (Auto-Lite no. IG-1324D)

1шт.

All part numbers except A8368, A8369, A8370, A8371, must be obtained from an Auto-Lite service station.

1шт.

A8369

ROTOR

- distributor (Auto-Lite no. IG-1657R)

1шт.

All part numbers except A8368, A8369, A8370, A8371, must be obtained from an Auto-Lite service station.

1шт.

A8370

PACKAGE

CONDENSER (Auto-Lite no. IBB-204255-1)

1шт.

All part numbers except A8368, A8369, A8370, A8371, must be obtained from an Auto-Lite service station.

1шт.

A8371

X

CONTACT SET - breaker points (Auto-Lite no. IGP-3028FS)

1шт.

All part numbers except A8368, A8369, A8370, A8371, must be obtained from an Auto-Lite service station.

1шт.

GE-98

GEAR - follower

1шт.

IAD-7

CONNECTOR - terminal stud

1шт.

IAD-8

INSULATION - terminal stud, inner

1шт.

IAD-9

BRACKET - breaker plate mounting

2шт.

IAD-10

BUSHING - insulation terminal stud

1шт.

IAD-12

CONNECTOR - terminal

1шт.

IAD-14

BRACKET - cap spring

2шт.

IAD-1004

PLATE - breaker (Use IAD-2004)

1шт.

IAD-1100RK-1

CAM AND STOP PLATE, 4 cyl., RH

1шт.

IAD-2004

PLATE ASSEMBLY - breaker

1шт.

IAD-2015

PLATE ASSEMBLY - dust seal

1шт.

IAD-2020

BASE ASSEMBLY - distributor

1шт.

IAO-10

WASHER - drive shaft, inner thrust, upper

1шт.

IAO-11

WASHER - drive shaft, outer thrust, upper

1шт.

IG-94

TERMINAL - high tension wire

5шт.

IG-514

CONTACT - plunger

1шт.

IG-515A

SPRING - contact

1шт.

IG-579A

BEARING - drive shaft, bronze

2шт.

IG-676

CLIP - contact arm spring

1шт.

IG-680

SNAP RING - cam retaining

1шт.

IGB-252S

SPRING - governor weight, set of 2

1шт.

IGC-175

SCREW - spring clamp (No. 6-32 x 5/16")

1шт.

IGC-2168R

WEIGHT - governor

2шт.

IGH-28

WICK - cam sleeve, felt

1шт.

IGL-8A

STUD - primary terminal

1шт.

IGL-9

WASHER - insulated terminal stud

1шт.

IGS-32

PLUG - vent hole, rubber

1шт.

IGS-99

SPACER - cam

1шт.

IGS-117

WICK - felt

1шт.

IGS-1180R

SHAFT - distributor drive

1шт.

IGT-70

SPRING - anti-rattle

1шт.

IGZ-9

SPRING - distributor cap clamp

2шт.

IGZ-90

WASHER - drive shaft thrust, lower

1шт.

SW-213

RIVET - drive gear

1шт.

8X-173

NUT - hex., terminal stud (No. 10-32)

1шт.

8X-183A

WASHER - plain terminal stud, no. 10

1шт.

12X-194

LOCKWASHER - clamp securing, no.6

3шт.

12X-196

LOCKWASHER - terminal stud, no. 10

2шт.

8X-301

SCREW - connector, round head, no. 6-32 x 3/16"

1шт.

8X-350

WASHER - lock, plain contact, Sc. no. 8

1шт.

8X-353

WASHER - plain, clamp, Sc. no. 6

1шт.

X-490A

OILER - distributor shaft bearing

1шт.

X-525

RIVET - clamp spring, tubular

4шт.

8X-884

SCREW - breaker contact lock, fil. head, no. 8-32 x 3/16"

1шт.

8X-1546

SCREW - condenser mounting, fil. head, no. 6-32 x 5/32"

1шт.

X-2878

SCREW - breaker plate mounting, fil. head, no. 10-32 x 5/16"

2шт.
