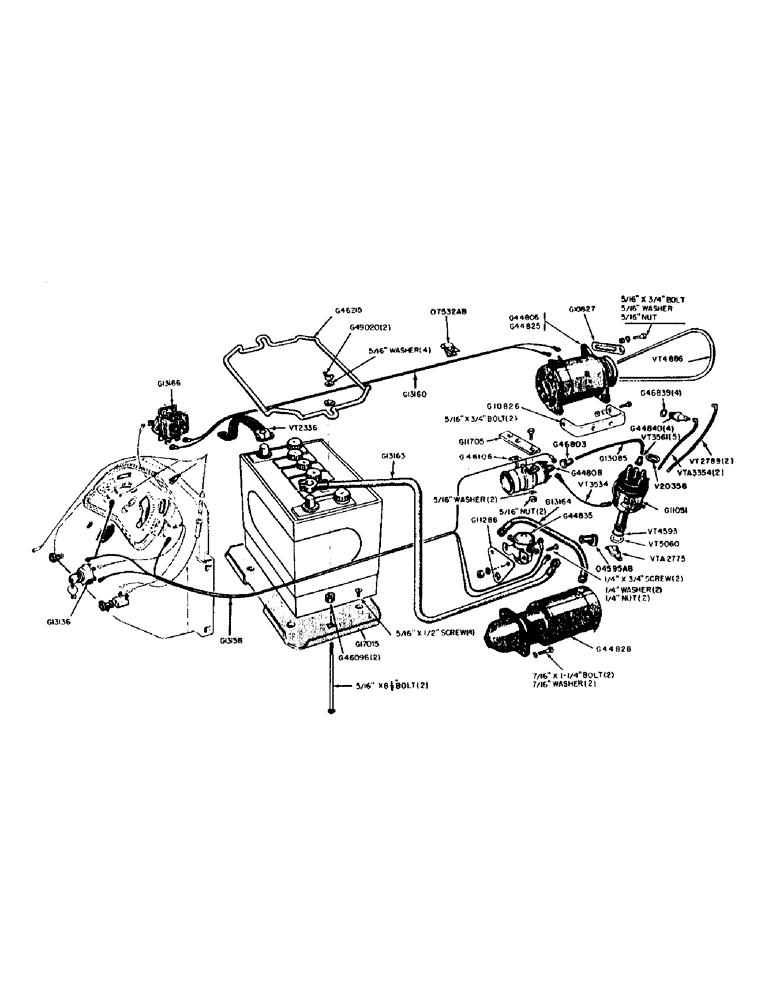

Запчасти Case IH 320 (046) - ELECTRICAL SYSTEM 12 VOLT, BATTERY, GENERATOR, IGNITION AND STARTING MOTOR (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

BATTERY - storage, 12 volt (Exide #2SM-50)

1шт.

Battery not furnished by J.I. Case Co.

1шт.

G13163

CABLE -, Serial Range: battery-solenoid

1шт.

G17015

X

PAN - battery base

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" flat hd. mach. screw (Spin-lock)

4шт.

G46096

RETAINER

BUSHING, rubber, battery frame bolt

2шт.

G46215

X

FRAME - battery hold down

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 8-1/2" carriage bolt

2шт.

G49020

NUT

- wing, battery frame bolt (5/16" NC)

2шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher and plain washer

2шт.

VT2336

X

STRAP -, Serial Range: battery-ground

1шт.

G10826

BRACKET - generator mounting, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

3/8" NC hex. nut and lockwasher, generator, 12 volt

2шт.

G10827

STRAP - adjusting, generator belt, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" NF hex. hd. bolt w/hex. nut and lockwasher, generator, 12 volt

2шт.

G13160

CABLE - generator to voltage regulator, 12 volt

1шт.

G13166

X

REGULATOR - voltage (Auto-Lite #VRT-4105), generator, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw w/hex. nut anf lockwasher, generator, 12 volt

3шт.

G44806

GENERATOR w/pulley (Auto-Lite #GHD-6002A) See G44825, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" NF hex. hd. bolt w/hex. nut, lockwasher and plain washer, generator, 12 volt

2шт.

G44825

GENERATOR (w/o pulley for power steering) (Auto-Lite #GHH 6002S). Can use G44806 minus pulley, 12 volt

1шт.

G46083

V-BELT,0.42" W x 7.50" L

Fan, Generator and Power Steering Pump Drive, See VT4886, 12 Volt 0.42" W x 7.50" L

1шт.

O7532AB

CLIP - G13160 cable to engine, generator, 12 volt

1шт.

VT4886

X

"V" BELT - fan and generator drive (See G46083), 12 volt

1шт.

G11051

DISTRIBUTOR

(Auto-Lite #IAD-6003-2J), ignition and starting motor, 12 volt

1шт.

G11286

BRACKET - solenoid mounting, ignition and starting motor, 12 volt

1шт.

G11705

BRACKET

- coil mounting, ignition and starting motor, 12 volt

1шт.

G13085

ELECTRICAL WIRE

CABLE - distributor to coil, ignition and starting motor, 12 volt

1шт.

G13136

IGNITION SWITCH

SWITCH - ignition and starting, w/key, motor, 12 volt

1шт.

G13158

CABLE - ignition switch to solenoid, coil, ammeter and fuel gage, and starting motor, 12 volt

1шт.

G13164

CABLE - solenoid to starter (9" long), ignition and starting motor, 12 volt

1шт.

G44808

X

COIL - ignition (Includes G46106 clamp w/screw) (Auto-Lite #CAG-4002A), and starting motor, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" NF hex. hd. bolt w/hex. nut and lockwasher, ignition and starting motor, 12 volt

2шт.

G44828

MOTOR - starting (Auto-Lite #MDL-6019), and ignition, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 1-1/4" NC hex. hd. bolt w/lockwasher, ignition and starting motor, 12 volt

2шт.

G44835

SOLENOID

- starter switch, ignition and starting motor, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" NC rd. hd. mach. screw w/hex. nut and lockwasher, ignition and starting motor, 12 volt

2шт.

G44840

SPARK PLUG

PLUG - spark, includes gasket (Champion #D16-18MM), ignition and starting motor, 12 volt

4шт.

G46106

BRACKET

CLAMP - coil, ignition and starting motor, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

#10-32 x 1-1/2" rd. hd. mach. screw, ignition and starting motor, 12 volt

1шт.

G46803

BOOT

NIPPLE - rubber, cable to coil, ignition and starting motor, 12 volt

1шт.

G46839

GASKET

- spark plug, ignition and starting motor, 12 volt

4шт.

A21753

CAP

NIPPLE - rubber, starter and solenoid terminals, ignition and starting motor, 12 volt

3шт.

V14662

SEAL - felt, starting motor, and ignition, 12 volt

1шт.

V20356

NUT

WASHER - rubber, spark plug wires, ignition and starting motor, 12 volt

1шт.

VT2879

X

WIRE - no. 1 and no. 4 spark plugs (10-1/2" long), ignition and starting motor, 12 volt

2шт.

VT3534

X

CABLE - coil to distributor (11" long), ignition and starting motor, 12 volt

1шт.

VT3561

X

NIPPLE - rubber, spark plug wire and coil cable, ignition and starting motor, 12 volt

5шт.

VT4593

X

"O" RING - distributor to block, ignition and starting motor, 12 volt

1шт.

VT5060

X

WASHER - thrust, distributor advance arm, ignition and starting motor, 12 volt

1шт.

VTA2775

X

ADVANCE ARM - distributor (Auto-Lite #IG-1860-A1), ignition and starting motor, 12 volt

1шт.

VTA3354

X

WIRE - no. 2 and no. 3 spark plugs (8-1/2" long), ignition and starting motor, 12 volt

2шт.
