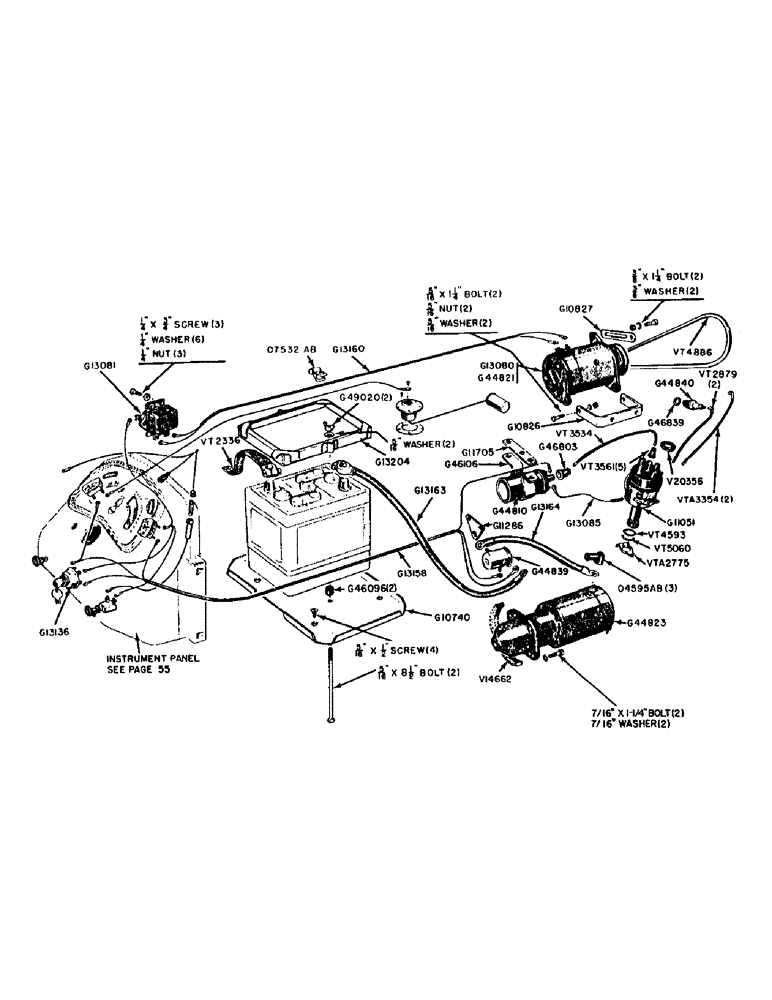

Запчасти Case IH 320 (044) - ELECTRICAL SYSTEM 6 VOLT, BATTERY, GENERATOR, IGNITION AND STARTING MOTOR (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

BATTERY - storage, 6 volt (Exide #151). Not furnished by J. I. Case Company

1шт.

G10740

X

PAN - battery base

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" flat hd. mach. screw (Spin-lock)

4шт.

G13163

CABLE -, Serial Range: battery-solenoid

1шт.

G13204

FRAME - battery hold down

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 8-1/2" carr. bolt

2шт.

G46096

RETAINER

BUSHING - rubber, battery pan bolt

2шт.

G49020

NUT

- wing, battery frame bolts

2шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher and plain washer

2шт.

VT2336

X

STRAP -, Serial Range: battery-ground

1шт.

G10826

BRACKET - generator mounting, 6 volt

1шт.

NSS

NOT SOLD SEPARAT

3/8" hex. nut, UNC w/lockwasher, generator, 6 volt

2шт.

G10827

STRAP - generator belt adjusting, 6 volt

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" hex. hd. bolt, UNF w/hex. nut and lockwasher, generator, 6 volt

2шт.

G13080

GENERATOR - w/pulley (Auto-Lite #GHD-6002A) (See G44821), 6 volt

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" hex. hd. bolt, UNF w/hex. nut and lockwasher, generator, 6 volt

2шт.

NSS

NOT SOLD SEPARAT

5/16" plain washer, generator, 6 volt

2шт.

G13081

X

REGULATOR - voltage (Auto-Lite #VRR-4105A), generator, 6 volt

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw, UNC w/hex. nut and lockwasher, generator, 6 volt

3шт.

G13160

CABLE - generator to voltage regulator, w/harness assembly, 6 volt

1шт.

G44821

GENERATOR (w/o pulley, for power steering) (Auto-Lite #GHD-6002) (Can use G13180 minus pulley), 6 volt

1шт.

O7532AB

CLIP - G13160 cable to engine, generator, 6 volt

1шт.

VT4886

X

"V" BELT - fan and generator drive, 6 volt

1шт.

G11051

DISTRIBUTOR

(Auto-Lite #IAD-6003-2J), ignition and starting motor

1шт.

G11286

BRACKET - solenoid mounting, ignition and starting motor

1шт.

G11705

BRACKET

- coil mounting, ignition and starting motor

1шт.

G13085

ELECTRICAL WIRE

CABLE - distributor to coil, ignition and starting motor

1шт.

G13136

IGNITION SWITCH

SWITCH - ignition and starting (Includes key), motor

1шт.

G13158

CABLE - ignition switch to solenoid, coil, ammeter and fuel gage, and starting motor

1шт.

G13164

CABLE - solenoid to starter (9" long), ignition and starting motor

1шт.

G44810

X

COIL - ignition (Includes G46106 clamp w/screw) (Auto-Lite #CAL-4001A), and starting motor

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" NF hex. hd. bolt w/hex. nut and lockwasher, ignition and starting motor

2шт.

G44823

MOTOR - starting (Auto-Lite #MGB-4105), and ignition

1шт.

G44839

SOLENOID

- starter switch, ignition and starting motor

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher, ignition and starting motor

2шт.

G44840

SPARK PLUG

PLUG - spark (Includes gasket) Champion #D16-18MM, ignition and starting motor

4шт.

G46106

BRACKET

CLAMP - coil, ignition and starting motor

1шт.

NSS

NOT SOLD SEPARAT

#10-32 x 7-1/2" rd. hd. mach. screw, ignition and starting motor

1шт.

G46803

BOOT

NIPPLE - rubber, cable to coil, ignition and starting motor

1шт.

G46839

GASKET

- spark plug, ignition and starting motor

4шт.

A21753

CAP

NIPPLE - rubber, starter and solenoid terminals, and ignition motor

3шт.

V14662

SEAL - felt, starting motor, and ignition

1шт.

V20356

NUT

WASHER - rubber, spark plug wires, ignition and starting motor

1шт.

VT2879

X

WIRE - no. 1 and no. 4 spark plugs (10-1/2" long), ignition and starting motor

2шт.

VT3534

X

CABLE - coil to distributor (11" long), ignition and starting motor

1шт.

VT3561

X

NIPPLE - rubber, spark plug wires and coil cable, ignition and starting motor

5шт.

VT4593

X

"O" RING - distributor to block, ignition and starting motor

1шт.

VT5060

X

WASHER - thrust, distributor advance arm, ignition and starting motor

1шт.

VTA2775

X

ADVANCE ARM - distributor (Auto-Lite #IG-1860 A1), ignition and starting motor

1шт.
