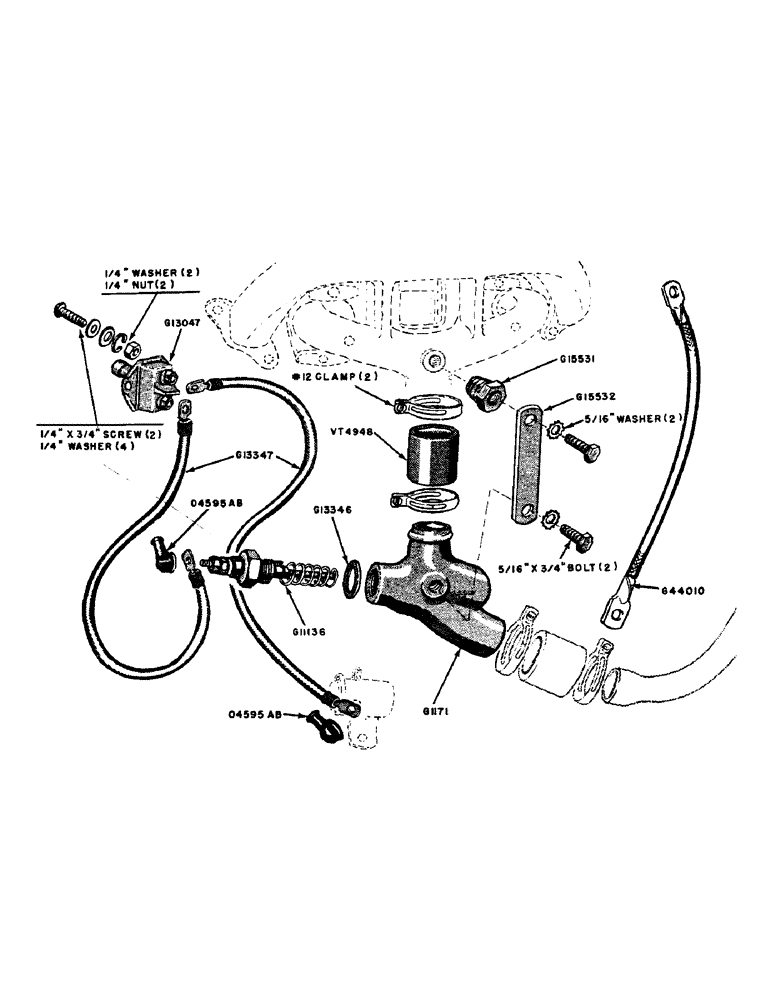

Запчасти Case IH 320 (040) - DIESEL ENGINE, MANIFOLD HEATING UNIT (03) - FUEL SYSTEM

G1171

HOUSING - heating unit

1шт.

G11136

UNIT HEATER

UNIT - heating manifold (Auto-Lite #9000006-00)

1шт.

G13047

SWITCH

- starter, heating unit

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/4" plain washer

4шт.

G13346

GASKET - heating unit

1шт.

G13347

CABLE - solenoid to starter switch to heating unit

2шт.

G15531

PLUG - ground, Serial Range: strap-manifld

1шт.

G15532

STRAP - ground (See G44010)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" hex. hd. bolt, NC w/Shakeproof lockwasher (ET #1118)

2шт.

G44010

CABLE - ground (Replaces G15532 w/starting fluid att.)

1шт.

A21753

CAP

NIPPLE - heating unit terminal

2шт.

VT4948

X

HOSE - heating unit housing to manifold (1-3/4" O.D.)

1шт.

NSS

NOT SOLD SEPARAT

#12 hose clamp

2шт.
