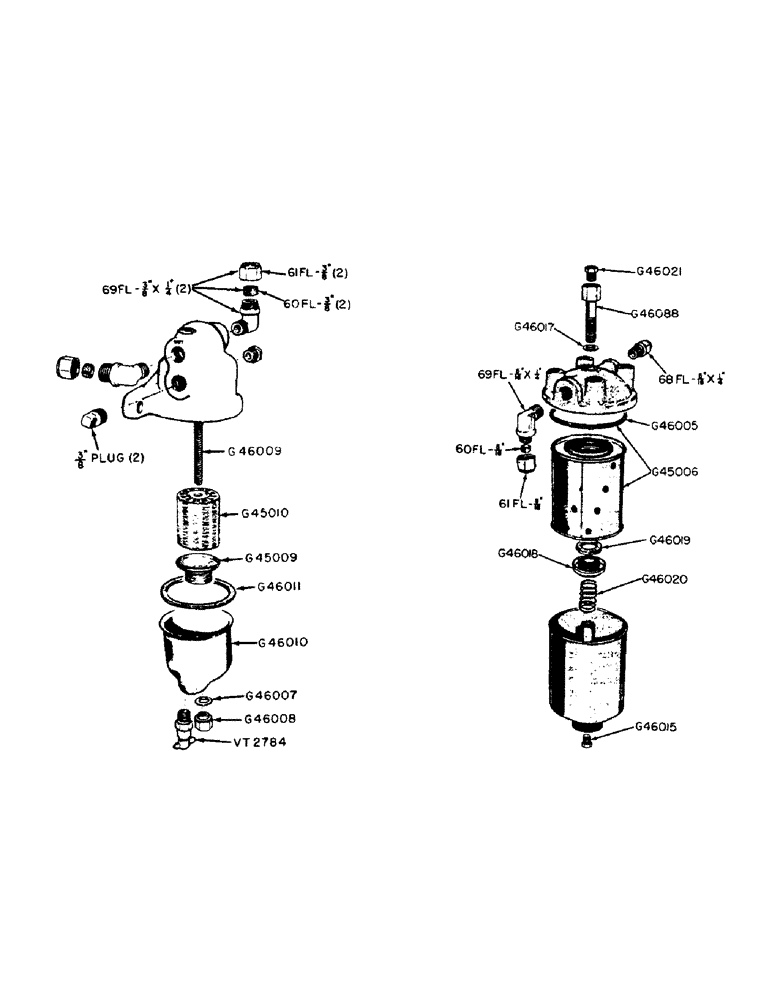

Запчасти Case IH 320 (038) - DIESEL ENGINE, FUEL FILTERS, PARTS FOR G13316 FIRST STAGE FILTER AND G11067 SECOND STAGE FILTER (03) - FUEL SYSTEM

G13316

FILTER COMPLETE

1шт.

NSS

NOT SOLD SEPARAT

3/8" sq. hd. pipe plug

2шт.

NSS

NOT SOLD SEPARAT

69FL - 3/8" x 1/4" elbow, includes 60FL - 3/8" sleeve and 61FL - 3/8" nut

2шт.

G45009

NUT - element stud

1шт.

G45010

ELEMENT - filter

1шт.

G46007

GASKET - bowl nut

1шт.

G46008

NUT - bowl

1шт.

G46009

STUD - element

1шт.

G46010

BOWL

1шт.

G46011

GASKET - filter, Serial Range: head-bowl

1шт.

VT2784

X

PLUG - drain

1шт.

G11067

FILTER

COMPLETE, parts for G11067 second stage

1шт.

NSS

NOT SOLD SEPARAT

68FL-5/16" x 1/4" connector, includes 60FL - 5/16" sleeve and 61FL - 5/16" nut, parts for G11067 second stage filter

1шт.

NSS

NOT SOLD SEPARAT

69FL-5/16" x 1/4" elbow, includes 60FL - 5/16" sleeve and 61FL - 5/16" nut, parts for G11067 second stage filter

1шт.

G45006

FILTER, ELEMENT

FILTER CARTRIDGE ASSEMBLY, includes head gasket, parts for G11067 second stage

1шт.

G46005

GASKET

- head, parts for G11067 second stage filter

1шт.

G46015

PLUG - drain and bleeder, parts for G11067 second stage filter

2шт.

G46017

GASKET - capscrew, parts for G11067 second stage filter

1шт.

G46018

PLATE - sealing, parts for G11067 second stage filter

1шт.

G46019

GROMMET - sealing plate, parts for G11067 second stage filter

1шт.

G46020

SPRING, parts for G11067 second stage filter

1шт.

G46088

CAPSCREW, parts for G11067 second stage filter

1шт.
