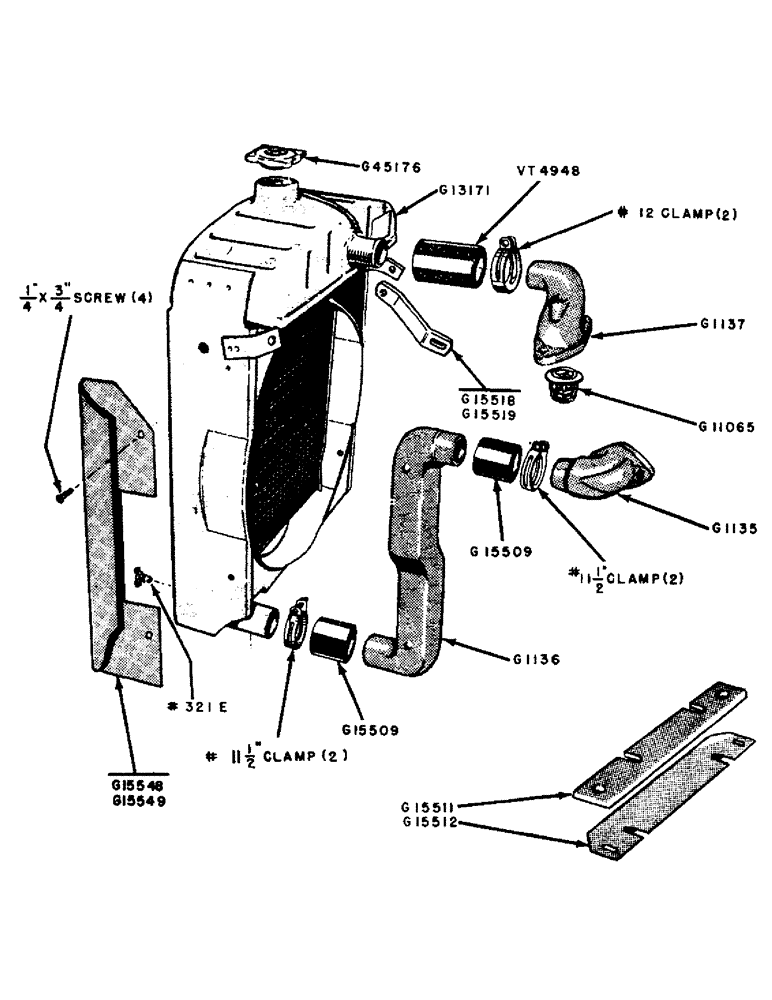

Запчасти Case IH 320 (033) - DIESEL ENGINE, RADIATOR AND CONNECTIONS (02) - ENGINE

G1135

ELBOW - inlet, water pump side

1шт.

G1136

PIPE - inlet, radiator to water pump

1шт.

G1137

ELBOW - outlet, water pump top

1шт.

G11065

CASE

THERMOSTAT - radiator (177 degrees to 182 degrees F)

1шт.

G11202

GASKET - inlet elbow to water pump

1шт.

G11206

GASKET - outlet elbow to water pump

1шт.

G13171

RADIATOR - less cap

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting drain valve (Imperial Brass #321E)

1шт.

G15509

HOSE - engine and radiator to G1136 pipe (1-5/8" I.D. x 1-7/8" long)

2шт.

NSS

NOT SOLD SEPARAT

#11-1/2" hose clamp

4шт.

G15511

STRAP - radiator mounting

1шт.

G15512

BAFFLE - lower, radiator air

1шт.

NSS

NOT SOLD SEPARAT

3/8" hex. nut NC and lockwasher

2шт.

G15518

BRACE - radiator, R.H.

1шт.

G15519

BRACE - radiator, L.H.

1шт.

G15548

BAFFLE - radiator air recirculation, R.H.

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. mach. screw, NC

2шт.

G15549

BAFFLE - radiator air recirculation, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw, NC

2шт.

G45176

CAP

- radiator (4 lb. pressure valve type)

1шт.

VT4948

X

HOSE - upper, Serial Range: engine-radiator

1шт.

NSS

NOT SOLD SEPARAT

#12 hose clamp

2шт.
