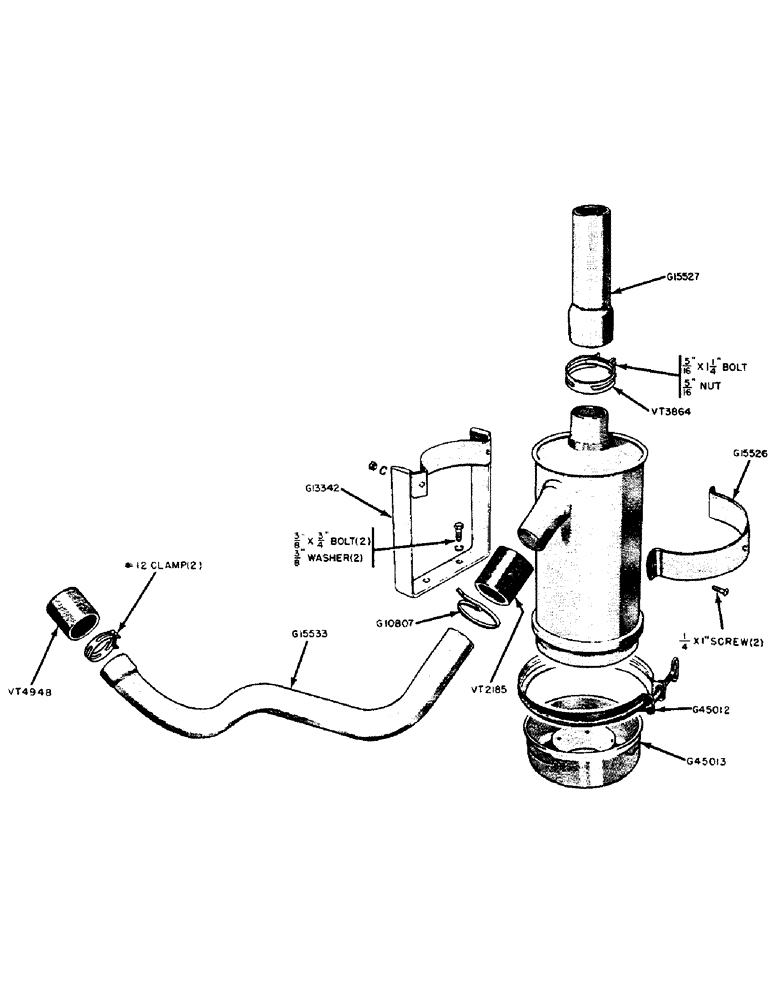

Запчасти Case IH 320 (031) - DIESEL ENGINE, AIR CLEANER (02) - ENGINE

G10807

CLAMP

- wire hose, Serial Range: cleaner-tube

2шт.

G13341

AIR CLEANER COMPLETE

1шт.

G13925

SUPPORT - air cleaner

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" hex. hd. bolt, NC w/lockwasher

2шт.

G15526

BAND - air cleaner mounting

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

G15526

TUBE - extension, air cleaner

1шт.

G15527

TUBE - air cleaner to heating unit housing

1шт.

G45012

CLAMP - oil cup retaining

1шт.

G45013

CUP - oil

1шт.

G46085

HOSE - cleaner to tube (1-1/2" I.D. x 6" long)

1шт.

VT3812

X

CAP

1шт.

VT3864

X

CLAMP - extension pipe to air cleaner

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" rd. hd. mach. screw w/hex. nut and lockwasher

1шт.

VT4948

X

HOSE - tube to heating unit housing (1-3/4" I.D. x 2" long)

1шт.

NSS

NOT SOLD SEPARAT

#12 hose clamp

2шт.
