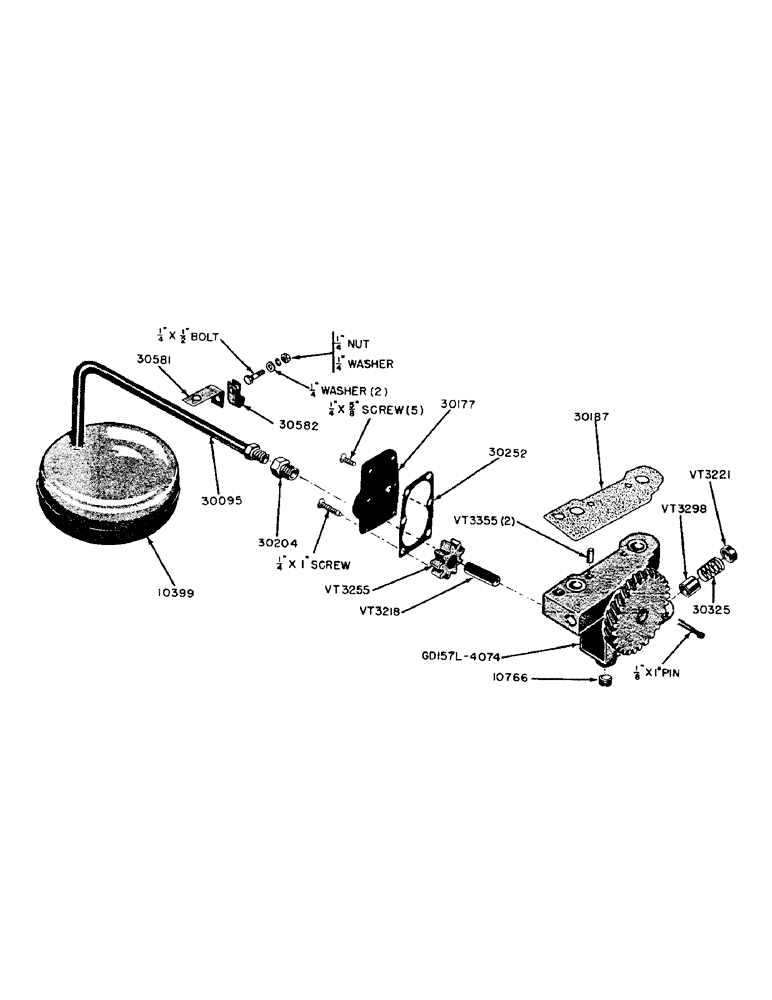

Запчасти Case IH 320 (028) - DIESEL ENGINE, ENGINE OIL PUMP AND STRAINER (02) - ENGINE

10399

SCREEN ASSEMBLY - oil strainer

1шт.

A10766

BODY

PLUG - pipe, oil pump body

1шт.

30095

TUBE - suction (Includes screen)

1шт.

30177

SHAFT

COVER - oil pump

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" flat hd. mach. screw

5шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" flat hd. mach. screw

1шт.

30187

SIEVE

SHIM - oil pump to bearing cap

1шт.

30204

FITTING - inlet, Serial Range: tube-pump

1шт.

30252

TOOL KIT

GASKET - cover to body, oil pump

1шт.

30325

SPRING - relief valve

1шт.

30581

SHAFT SEAL

BRACKET - suction tube

1шт.

30582

CLIP - suction, Serial Range: tube-bracket

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" NF hex. hd. bolt w/hex. nut and lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/4" plain washer

2шт.

GD157L-4074

OIL PUMP BODY (Includes inserts, plugs and drive gears)

1шт.

VT3218

STUD - idler gear

1шт.

VT3221

X

RETAINER - spring, relief valve

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

VT3255

X

GEAR - idler, oil pump (9T)

1шт.

VT3298

X

VALVE - relief, oil pressure

1шт.

VT3355

PIN - dowel, pump to bearing cap

2шт.
