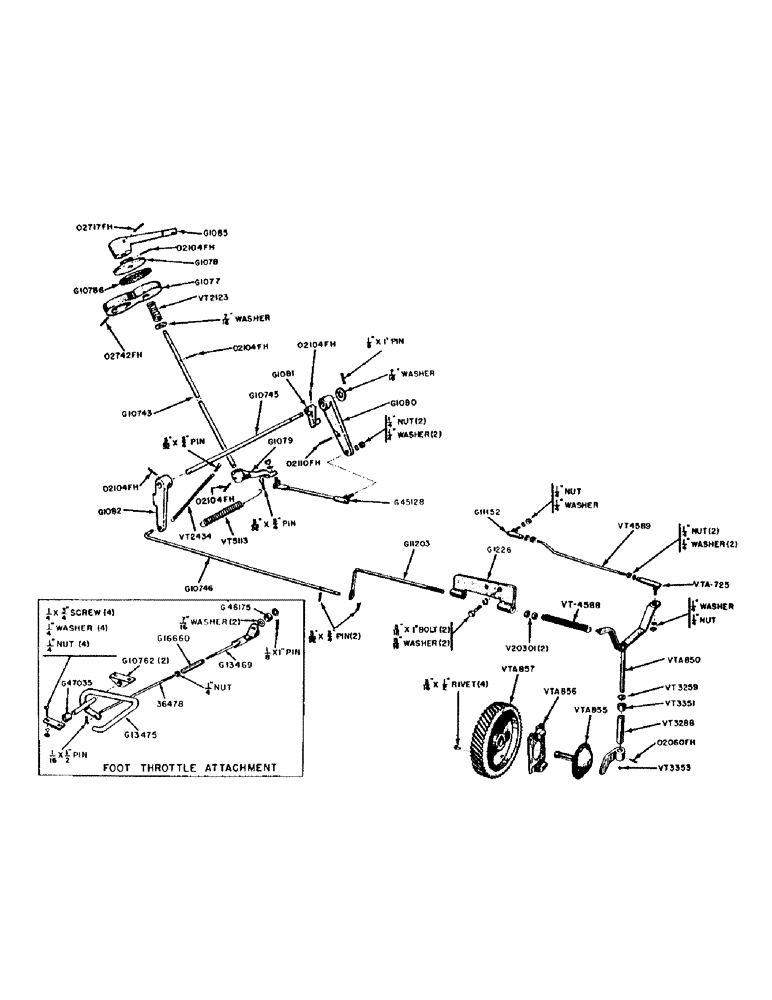

Запчасти Case IH 320 (020) - GOVERNOR AND THROTTLE CONTROL (02) - ENGINE

G1077

SUPPORT - friction plate and hand throttle

1шт.

G1078

PLATE

- friction, hand lever

1шт.

G1079

LEVER

- lower, hand throttle shaft

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

G1080

LEVER - actuating, throttle cross shaft

1шт.

G1081

LEVER - cross shaft

1шт.

G1082

LEVER

- governor control rod

1шт.

G1085

LEVER

HANDLE - throttle

1шт.

G1226

GUIDE - governor control rod

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" hex. head bolt UNC w/lockwasher

2шт.

G10743

SHAFT - hand throttle

1шт.

NSS

NOT SOLD SEPARAT

7/16" plain washer, SAE, std.

1шт.

G10745

SHAFT - cross, governor control

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

G10746

LINK - connecting, throttle

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

2шт.

G10876

GASKET

FRICTION DISK - throttle, cork

1шт.

G11152

X

BALL AND SOCKET ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

1/4" hex. nut UNF and lockwasher

1шт.

G11203

ROD - governor control

1шт.

G45128

LINK

BALL AND SOCKET (double) G1079 lever to G1080 lever

1шт.

O2060FH

X

ROLLPIN - (1/8" x 3/4") use with VTA850

1шт.

O2104FH

X

ROLLPIN - (5/32" x 7/8")

5шт.

O2110FH

X

ROLLPIN - (3/16" x 3/4") pivot, for G1080 and G1081 levers

1шт.

O2717FH

X

ROLLPIN - (5/32" x 1-5/8") for G1085 handle

1шт.

O2742FH

X

ROLLPIN - (1/4" x 3/4"), Serial Range: G1077-G1075

2шт.

V20301

LOCK WASHER

NUT - governor rod adjusting

2шт.

VT540

GEAR (Use VTA857)

1шт.

VT2123

X

SPRING - hand throttle shaft tension

1шт.

VT2434

X

SPRING - control rod lever

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

VT3259

X

SEAL - dust, felt governor shaft

1шт.

VT3288

X

SPACER - thrust, governor shaft

1шт.

VT3351

X

BEARING - governor shaft (Torrington #B610)

1шт.

VT3353

X

BALL - governor arm thrust (3/16" dia.)

1шт.

VT4588

X

SPRING - governor speed control

1шт.

VT4589

ROD - carburetor throttle

1шт.

NSS

NOT SOLD SEPARAT

1/4" hex. nut UNF and Shakeproof washer I.T.

4шт.

VT5113

X

SPRING - hand throttle shaft lever

1шт.

VTA725

BALL JOINT

BALL AND SOCKET ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

1/4" hex. nut UNF with lockwasher

1шт.

VTA850

X

LEVER AND ARM ASSEMBLY - governor

1шт.

VTA855

X

GOVERNOR SHAFT ASSEMBLY

1шт.

VTA856

GOVERNOR WEIGHT ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1/2" round head rivet

4шт.

VTA857

X

GOVERNOR WEIGHT AND TIMING GEAR ASSEMBLY

1шт.

36478

ROD - actuating, foot, Serial Range: throttle-bellcrank

1шт.

NSS

NOT SOLD SEPARAT

1/16" x 1/2" cotter pin, foot throttle

1шт.

NSS

NOT SOLD SEPARAT

1/4" hex. jam nut, foot throttle

1шт.

G10762

BRACKET - pivot, foot throttle pedal

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" NC rd. hd. mach. screw w/hex. nut and lockwasher, foot throttle

4шт.

G13469

BELLCRANK - foot throttle rod to governor control rod lever

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin, foot throttle

1шт.

NSS

NOT SOLD SEPARAT

7/16" plain washer, foot throttle

2шт.

G13475

PEDAL - foot throttle

1шт.

G16660

TURNBUCKLE - actuating rod to bellcrank, foot throttle

1шт.

G46175

SPACER - bellcrank to cross shaft (3/8" O.D. x 3/8"), foot throttle

1шт.

G47035

SPACER - foot throttle pedal to pivot bracket

1шт.
