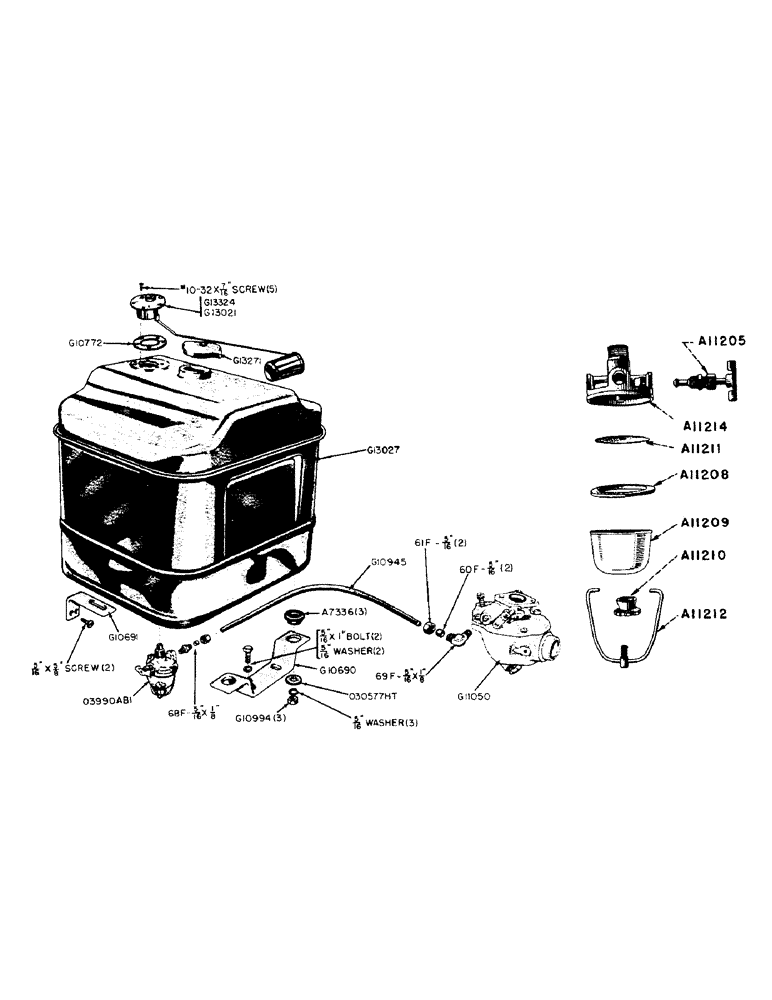

Запчасти Case IH 320 (017) - FUEL TANK (02) - ENGINE

A7336

CUSHION

BUSHING - rubber, fuel tank support

3шт.

G10690

SUPPORT - front, fuel tank

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" hex. hd. bolt, NC w/lockwasher

2шт.

G10691

SUPPORT - rear, fuel tank

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" flat hd. mach. screw

2шт.

G10772

GASKET

- fuel gage sender

1шт.

G10945

LINE - fuel, Serial Range: tank-carburetor

1шт.

NSS

NOT SOLD SEPARAT

68F-5/16" x 1/8" connector, includes 60F-5/16" sleeve and 61F-5/16" nut

1шт.

NSS

NOT SOLD SEPARAT

69F-5/16" x 1/8" elbow, includes 60F-5/16" sleeve and 61F-5/16" nut

1шт.

G10994

X

NUT - lock, fuel tank stud

3шт.

G11050

X

CARBURETOR (Marvel-Schebler #10-3882 Model TSX-635)

1шт.

G13021

SENDER - fuel gage (6 volt)

1шт.

NSS

NOT SOLD SEPARAT

#10-32 x 7/16" rd. hd. self-tapping screw (Philips hd.)

5шт.

G13027

TANK - fuel

1шт.

G13087

CABLE PULLING GRIP

CABLE - fuel tank to fuel gage

1шт.

G13271

CAP

- fuel tank

1шт.

G13324

SENDER UNIT

SENDER - fuel gage (12 volt)

1шт.

O3990AB1

X

STRAINER - complete full

1шт.

O30577HT

X

WASHER - fuel tank support (1-3/8" O.D. x 13/32" I.D. #18 ga.)

3шт.

A11205

VALVE

- fuel strainer, shutoff, filter, 03990AB1

1шт.

A11208

GASKET

- fuel strainer, filter, 03990AB1

1шт.

A11209

BOWL

- fuel strainer, filter, 03990AB1

1шт.

A11210

ADJUSTER

CUP AND NUT - fuel strainer, filter, 03990AB1

1шт.

A11211

FILTER SCREEN

SCREEN ASSEMBLY - fuel strainer, filter, 03990AB1

1шт.

A11212

BAIL

ASSEMBLY - fuel strainer, filter, 03990AB1

1шт.

A11214

HEAD

- fuel strainer, filter, 03990AB1

1шт.
