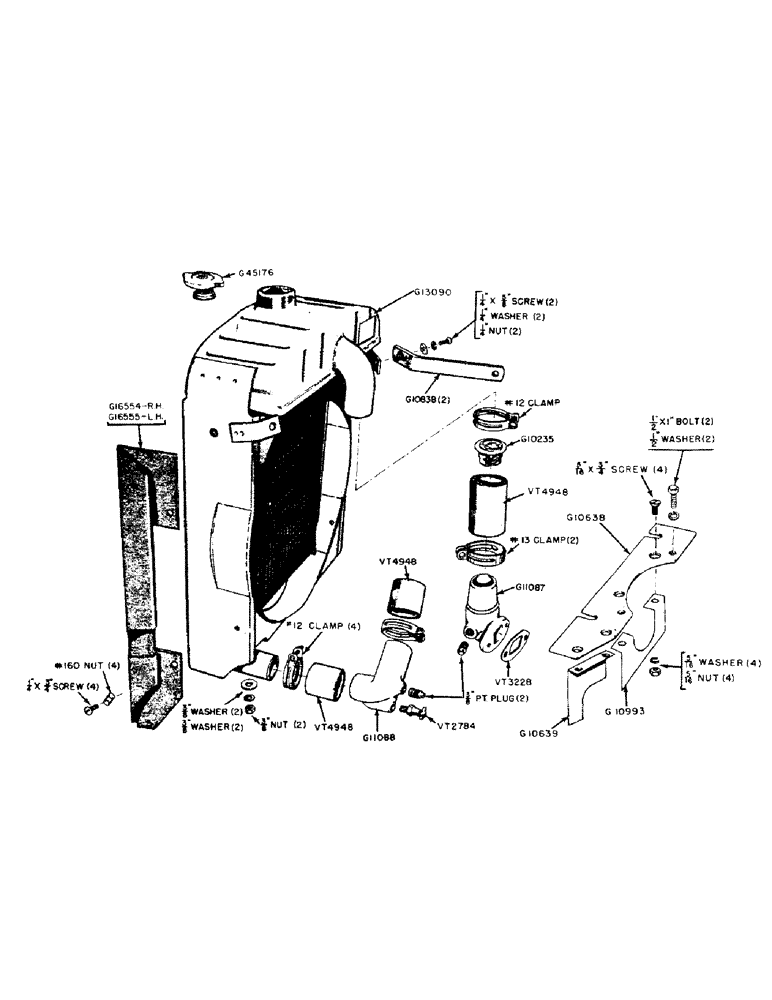

Запчасти Case IH 320 (015) - RADIATOR AND CONNECTIONS (02) - ENGINE

G1153

ELBOW (Use G11087)

1шт.

G1154

ELBOW (Use G11088)

1шт.

G10235

THERMOSTAT

(148 degrees to 153 degrees F)

1шт.

G10638

BRACKET - mounting, Serial Range: radiator-housing

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G10639

DEFLECTOR - side

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" flat hd. mach. screw w/hex. nut and lockwasher

2шт.

G10838

BRACE - radiator to engine head

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

G10993

DEFLECTOR - lower center

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" flat hd. mach. screw w/hex. nut and lockwasher

2шт.

G11087

ELBOW - water outlet (Includes 3/8" pipe plug)

1шт.

G11088

ELBOW - water inlet (Includes 3/8" pipe plug)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex. hd. bolt w/lockwasher

2шт.

G13090

RADIATOR (Less cap)

1шт.

NSS

NOT SOLD SEPARAT

3/8" N.C. hex. nut and lockwasher

2шт.

G16554

BAFFLE - R.H. circulation

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw w/#160 speed nut

2шт.

G16555

BAFFLE - L.H. circulation

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw w/#160 speed nut

2шт.

G45176

CAP

- radiator (4 lb. pressure type)

1шт.

VT137

ELBOW (Use G11087)

1шт.

VT526

ELBOW (Use G11088)

1шт.

VT2784

X

VALVE - drain, lower elbow

1шт.

VT3228

X

GASKET - outlet elbow

1шт.

VT4948

X

HOSE - lower elbow (1-3/4" I.D. x 2")

2шт.

NSS

NOT SOLD SEPARAT

#12 hose clamp

4шт.

VT4948

X

HOSE - upper elbow (1-3/4" I.D. x 2")

1шт.

NSS

NOT SOLD SEPARAT

#12 hose clamp

1шт.

NSS

NOT SOLD SEPARAT

#13 hose clamp

2шт.
