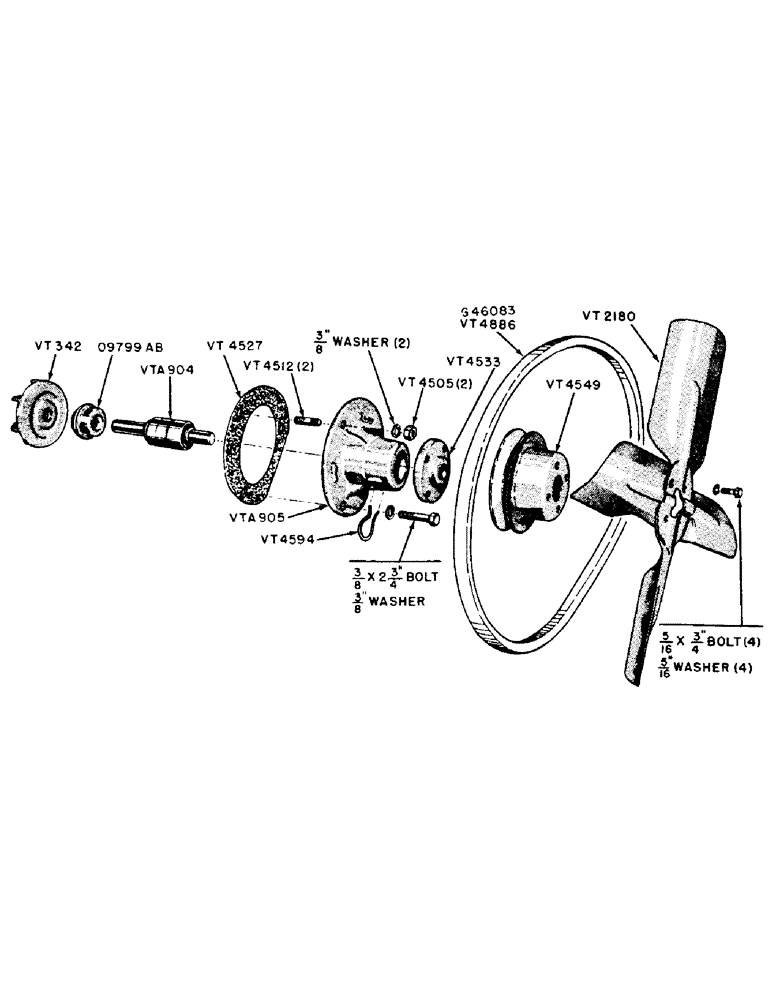

Запчасти Case IH 320 (014) - WATER PUMP AND FAN (02) - ENGINE

VT341

BODY (Use VTA905)

1шт.

VT342

IMPELLER - water pump

1шт.

O9799AB

SEAL ASSEMBLY

1шт.

VT2180

X

FAN

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" hex. hd. bolt, NC w/lockwasher

4шт.

VT4505

NUT - mounting stud

2шт.

VT4512

X

STUD - mounting, water pump body

2шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher, Shakeproof, IT

2шт.

VT4527

X

GASKET - pump, Serial Range: body-head

1шт.

VT4533

HUB - fan

1шт.

VT4549

X

PULLEY - water pump

1шт.

VT4594

X

RING - retainer

1шт.

VT4886

X

"V" BELT - fan and generator drive

1шт.

VTA904

X

SHAFT - drive, includes bearing and slinger

1шт.

VTA905

X

BODY AND SEAL ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-3/4" hex. hd. bolt, NC w/IT Shakeproof lockwasher

1шт.

VTA908

X

WATER PUMP COMPLETE, includes gasket

1шт.
