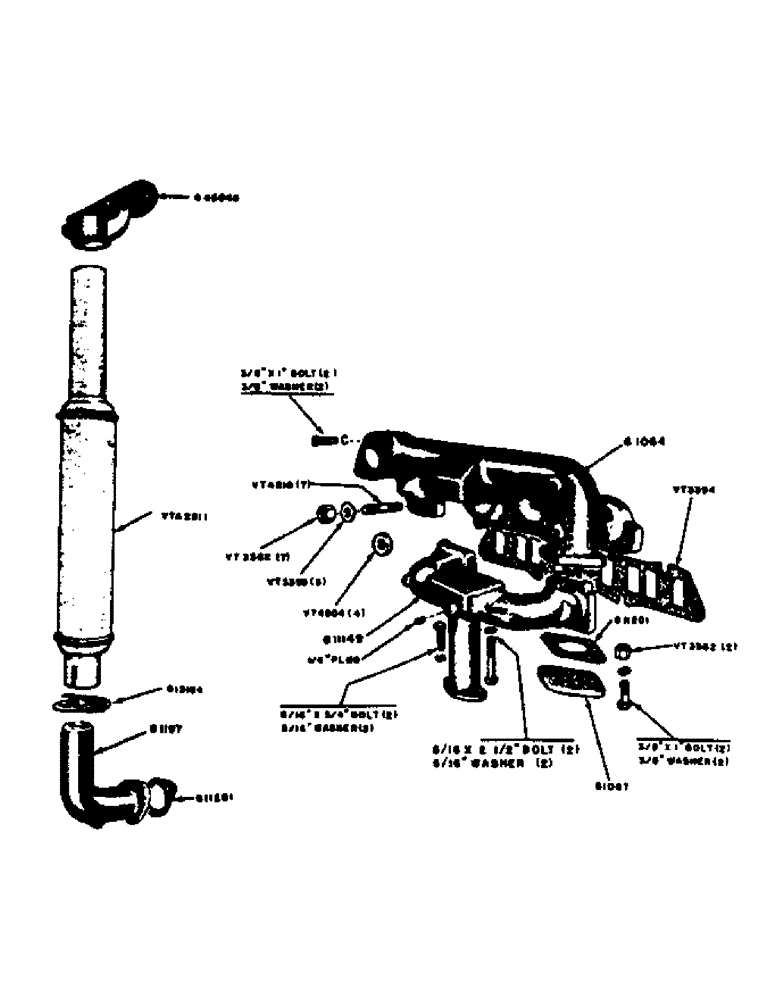

Запчасти Case IH 320 (013) - MANIFOLD AND MUFFLER (02) - ENGINE

G1064

MANIFOLD

- exhaust

1шт.

G1066

X

MANIFOLD - intake (Use G11149)

1шт.

G1067

COVER - exhaust manifold opening

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" hex. head bolt, UNC w/lockwasher

2шт.

G1178

X

MANIFOLD - intake (Use G11149)

1шт.

G1197

ELBOW

- exhaust muffler, upright

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" hex. head bolt UNF w/hex. nut and lockwasher

2шт.

G11149

MANIFOLD

- intake, includes 1/4" std. sq. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2" hex. hd. bolt N.C. w/lockwasher

2шт.

G11201

GASKET

- exhaust manifold elbow and opening cover

2шт.

G13184

CLAMP

- muffler (2")

1шт.

G45048

CAP

- weather, muffler pipe (Extra)

1шт.

VT3362

X

NUT - hex. (Brass 3/8" - 16)

7шт.

VT3393

X

WASHER - plain (3/4" O.D. x 13/32" I.D. x 1/16")

3шт.

VT3394

X

GASKET - manifold, exhaust and intake

1шт.

VT4504

WASHER

- plain (7/8" O.D. x 13/32" I.D. x 1/8")

4шт.

VT4510

X

STUD - manifold to cylinder head (3/8" x 1-3/4")

7шт.

VTA2811

X

MUFFLER - upright

1шт.
