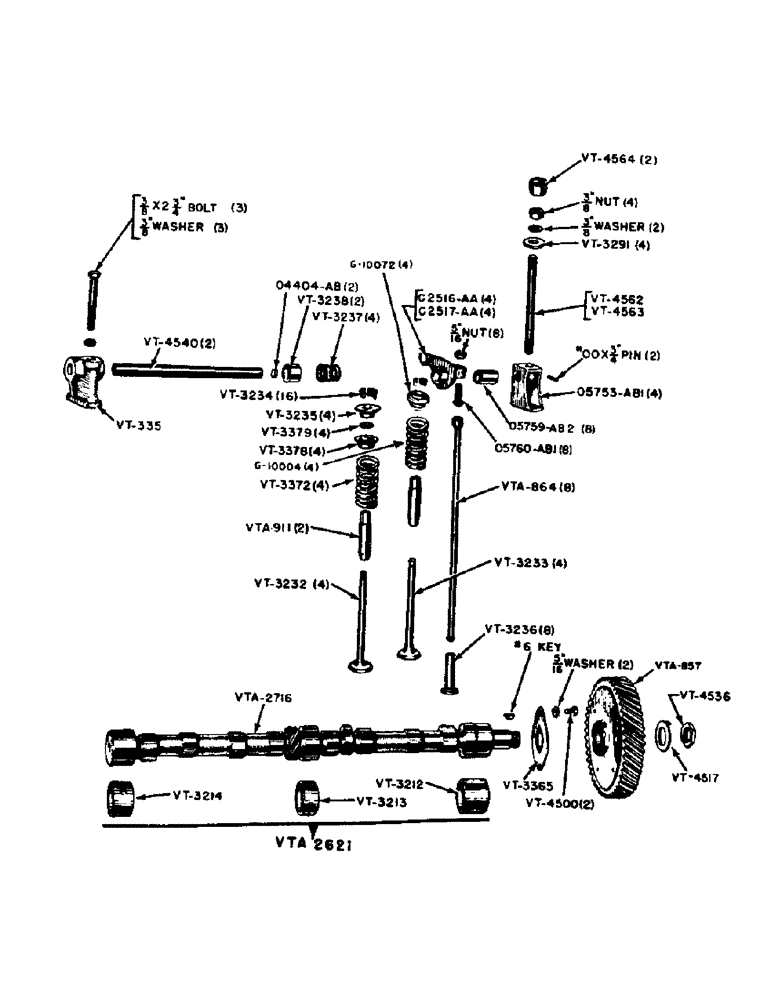

Запчасти Case IH 320 (012) - VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

G10004

SPRING

- exhaust valve

4шт.

G10072

CAP

ROTO-CAP - exhaust valve

4шт.

O4404AB

X

PLUG - rocker arm shaft

2шт.

O5753AB1

BRACKET - rocker arm shaft

4шт.

REFER TO 3/8" HEX BOLT PART IS 13-644

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-3/4" hex. hd. bolt, NC w/lockwasher

2шт.

O5759AB2

X

BUSHING - rocker arm

8шт.

O5760AB1

X

SCREW - rocker arm adjusting

8шт.

REFER TO 5/16" JAM NUT PART IS 25-155

1шт.

NSS

NOT SOLD SEPARAT

5/16" hex. jam nut, NF

8шт.

VT131

X

GUIDE - valve stem (Use VTA911)

1шт.

VT333

CAMSHAFT (Use VTA2716)

1шт.

VT335

BRACKET - center, rockershaft

1шт.

REFER TO 3/8" HEX BOLT PART IS 13-644

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-3/4" hex. hd. bolt, NC w/lockwasher

1шт.

VT540

GEAR (Use VTA857)

1шт.

VT3212

X

BUSHING - front (Use VTA2621)

1шт.

VT3213

BUSHING - center (Use VTA2621)

1шт.

VT3214

X

BUSHING - rear (Use VTA2621)

1шт.

VT3232

X

VALVE - intake (See VTA2634)

4шт.

VT3233

X

VALVE - exhaust (See VTA 2635)

4шт.

VT3234

X

LOCK - retaining, valve spring

16шт.

VT3235

X

RETAINER - valve spring

4шт.

VT3236

X

TAPPET - valve

8шт.

VT3237

X

SPRING - rocker shaft

4шт.

VT3238

X

SPACER - rocker shaft

2шт.

VT3291

X

WASHER - stud (1" O.D. x 13/32" I.D. x 1/8")

4шт.

VT3365

X

PLATE - thrust, camshaft

1шт.

VT3372

SPRING

- intake valve

4шт.

VT3378

X

RETAINER - gasket, intake valve stem

4шт.

VT3379

X

GASKET - valve stem

4шт.

VT4500

X

SCREW - thrust plate

2шт.

REFER TO 5/16 LOCKWASHER PART IS 193-9

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher, ET Shakeproof

2шт.

VT4517

X

LOCK-NUT, camshaft

1шт.

VT4536

X

NUT - camshaft

1шт.

VT4540

X

SHAFT - rocker arm

1шт.

NSS

NOT SOLD SEPARAT

TYPE 00 x 3/4" taper pin

2шт.

VT4562

X

STUD - rocker shaft bracket (3/8" x 4-3/8")

1шт.

VT4563

STUD - rocker shaft bracket (3/8" x 4-3/4")

1шт.

REFER TO 3/8" NUT IS 25-106 AND 3/8" LOCKWASHER PART IS 92-6

1шт.

NSS

NOT SOLD SEPARAT

3/8" hex. nut, NC

4шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher

2шт.

VT4564

X

SPACER - lower, valve cover studs

2шт.

C2516AA

X

ARM - rocker, RH assembly

4шт.

C2517AA

X

ARM - rocker, LH assembly

4шт.

VTA857

X

GEAR (48T) camshaft, includes governor weight

1шт.

VTA864

X

ROD - push

8шт.

VTA911

X

GUIDES - valve stem (Set of 4)

2шт.

VTA2621

X

BUSHINGS - camshaft (Set of 3)

1шт.

VTA2634

VALVES - intake (Set of 4)

1шт.

VTA2635

X

VALVES - exhaust (Set of 4)

1шт.

VTA2716

CAMSHAFT w/VT4536 nut

1шт.

NSS

NOT SOLD SEPARAT

#6 Woodruff key

1шт.
