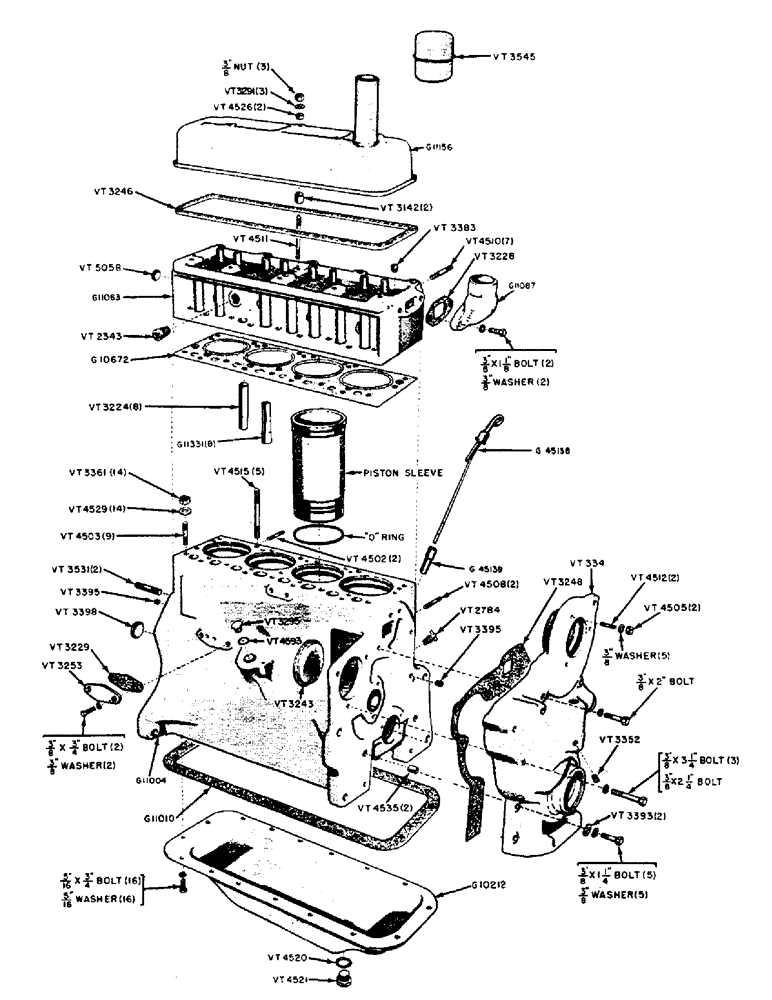

Запчасти Case IH 320 (006) - CYLINDER HEAD, BLOCK AND OIL PAN PARTS, CYLINDER HEAD (02) - ENGINE

G1148

HEAD (Use G11063)

1шт.

G1153

ELBOW (Use G11087)

1шт.

G10672

CYLINDER HEAD GASKET

cylinder head

1шт.

G11063

O-RING

HEAD - cylinder, includes guides, tubes and safety plug

1шт.

G11087

water outlet (Includes 3/8" pipe plug)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex. jd. bolt w/lockwasher

2шт.

G11156

COVER - valve assembly

1шт.

NSS

NOT SOLD SEPARAT

3/8" hex. nut, NC

3шт.

G11331

push rod (w/shoulder) (3-19/32" long) see VT3224 0.687" OD x 3.281" L

8шт.

VT137

ELBOW (Use G11087)

1шт.

VT2343

X

ADAPTER - temperature gage heat bulb

1шт.

VT3142

X

SPACER - cylinder head cover

2шт.

VT3224

TUBE - pushrod (3-19/32" long) see G11331

8шт.

VT3228

X

GASKET - water outlet elbow

1шт.

VT3246

GASKET - valve cover

1шт.

VT3291

X

WASHER - valve cover stud (1" O.D. x 13/32" I.D. x 1/8")

3шт.

VT3361

X

NUT - cylinder to block studs

14шт.

VT3383

X

PLUG - heat fuse

1шт.

VT3545

X

CAP - oil filler and breather

1шт.

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

7шт.

VT4511

STUD - cylinder head cover (3/8" x 5")

1шт.

VT4526

X

SPACER - valve cover studs

2шт.

VT4529

WASHER

cylinder head studs

14шт.

VT5058

PLUG - safety freeze (1-1/8" Hubbard)

1шт.

G1000

BLOCK - cylinder (Use G11004)

1шт.

G11004

CYLINDER , complete with main bearing caps, place bolts, camshaft bushings, and studs

1шт.

G45138

DIPSTICK

oil level, cylinder block

1шт.

G45139

BRACKET

SUPPORT - oil gage rod, cylinder block

2шт.

VT2784

X

VALVE - water drain, engine block, cylinder

1шт.

VT3229

X

GASKET - oil filter pad, cylinder block

1шт.

VT3243

X

COVER - magneto or power steering pump drive hole, cylinder block

1шт.

VT3253

PAD - oil filter opening, cylinder block

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" hex. head bolt, UNC w/lockwasher, cylinder block

2шт.

VT3295

COVER - distributor drive hole, cylinder block

1шт.

VT3395

X

PLUG - pipe, 1/8" P.T. socket head, oil gallery, cylinder block

2шт.

VT3398

X

PLUG - Hubbard, 2-1/8" dia., rear camshaft bearing, cylinder block

1шт.

VT3531

X

STUD - block to torque tube (5/8" x 3"), cylinder

2шт.

VT4502

STUD - engine block to cable clip, (3/8" x 1-1/2"), cylinder

2шт.

VT4503

X

STUD - cylinder head (1/2" x 2"), block

9шт.

VT4508

STUD - generator mounting bracket (3/8" x 1-1/4"), cylinder block

9шт.

VT4515

X

STUD - cylinder head (1/2" x 5-13/16"), block

5шт.

VT4593

X

"O" RING - distributor hole seal, cylinder block

1шт.

VT334

COVER - timing area, gear

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" hex. head bolt, UNC w/lockwasher, timing gear cover

5шт.

NSS

NOT SOLD SEPARAT

3/8" x 2" hex. head bolt, UNC w/lockwasher, timing gear cover

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/4" hex. head bolt, UNC w/lockwasher, timing gear cover

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3-1/4" hex. head bolt, UNC w/hex. nut, lockwasher and plain washer, timing gear cover

3шт.

VT3248

X

GASKET - timing gear cover

1шт.

VT3352

X

PLUG - pipe, 1/8" slotted, timing gear cover

1шт.

VT3393

X

WASHER - cover bolt (3/4" O.D. x 13/32" I.D. x 1/16"), timing gear cover

1шт.

VT4505

NUT - water pump stud (3/8" hex.), timing gear cover

2шт.

VT4512

X

STUD - water pump (3/8" x 1"), timing gear cover

2шт.

VT4535

X

RING - dowel, timing gear, Serial Range: cover-block

2шт.

G10212

OIL PAN - includes pan, VT4521 drain plug and VT4520 gasket

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" hex. hd. bolt, NC w/lockwasher, oil pan

16шт.

G11010

X

GASKET KIT - oil pan, includes VT4520 gasket

1шт.

VT4520

X

GASKET - drain plug, oil pan

1шт.

VT4521

X

PLUG - drain, oil pan

1шт.
