Запчасти Case IH 300B-SERIES (132) - SINGLE FRONT WHEEL AND FORK, 311B AND 411B GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

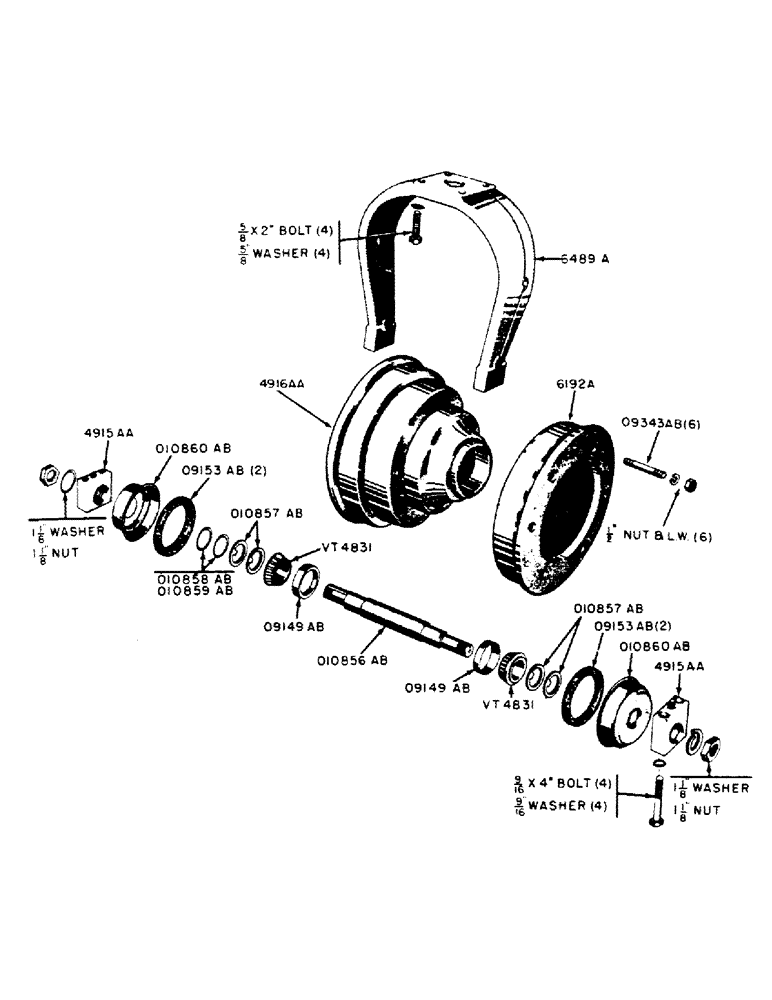

Схема запчастей Case IH 300B-SERIES - (132) - SINGLE FRONT WHEEL AND FORK, 311B AND 411B GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

6192A

FLANGE - single front wheel (for 9.00 x 10 tire)

1шт.

6489A

FORK - single front wheel

1шт.

5/8" x 2" N.F. hex. hd. bolt w/Shakeproot lockwasher (ET #1128)

4шт.

6502A

WHEEL (Use 4916AA)

1шт.

9149AB

CUP - bearing, wheel (Timken #25820)

2шт.

9150AB

CONE - bearing, wheel (Timken #25878) Use VT4831

1шт.

9153AB

WASHER - felt, wheel hub

4шт.

9343AB

STUD - front wheel flange (1/2" x 4")

6шт.

1/2" N.F. hex. nut (heavy) and lockwasher

6шт.

10856AB

SHAFT - axle, single front wheel

1шт.

1-1/8" N.F. hex. jam nut w/lockwasher

2шт.

10858AB

SHIM - axle shaft (.003")

4шт.

10859AB

SHIM - axle shaft (.005")

12шт.

10860AB

RETAINER FELT WASHER

2шт.

VT4831

X

CONE - bearing, wheel (Timken #25877)

2шт.

4915AA

BLOCK AND PIN - fork extension

2шт.

9/16" x 4" N.F. hex. hd. bolt w/lockwasher

4шт.

4916AA

WHEEL (includes 2-09149AB bearing cups and 6-09343AB studs) for 9.00 x 10-8 ply tire

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

Выбрано товаров: 19
