Запчасти Case IH 300B-SERIES (131) - FRONT WHEEL AND HUB, 301B, 311B, 411B GENERAL PURPOSE TRACS. & UTILITY TRACS.W/ ADJUSTABLE AXLE (06) - POWER TRAIN

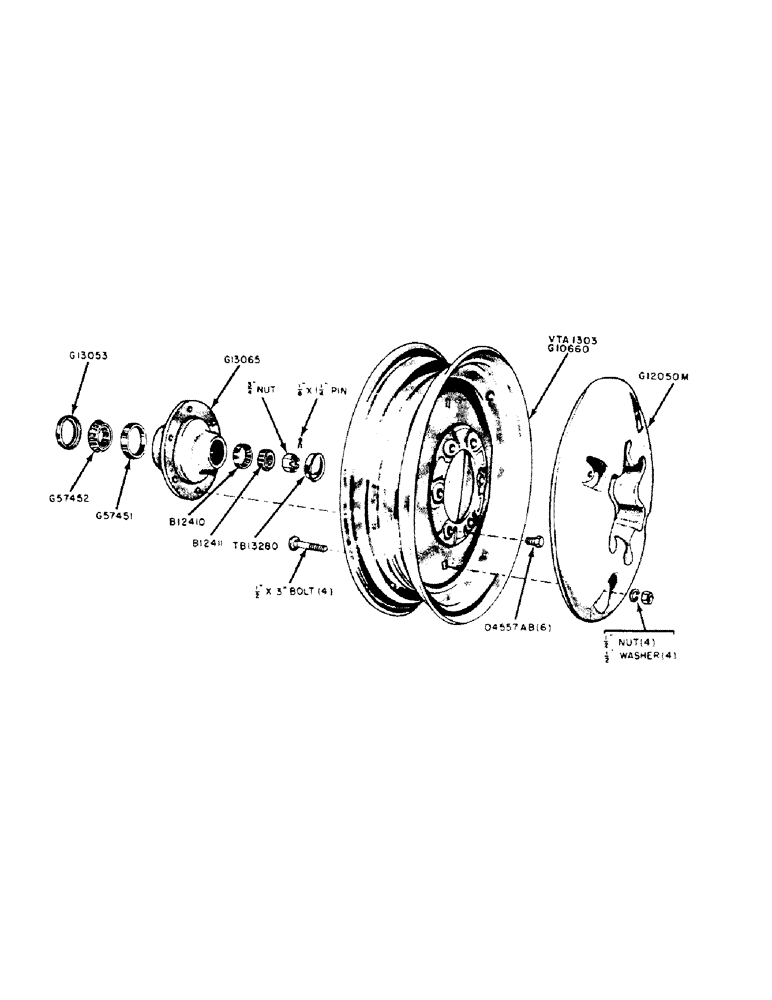

Схема запчастей Case IH 300B-SERIES - (131) - FRONT WHEEL AND HUB, 301B, 311B, 411B GENERAL PURPOSE TRACS. & UTILITY TRACS.W/ ADJUSTABLE AXLE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

B12410

BEARING, CUP,1.782" OD

CUP - outer bearing (Timken #LM-11910)

2шт.

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer bearing (Timken #LM-11949)

2шт.

G1053

WEIGHT - front wheel (Use G12050M)

2шт.

A39251

HUB CAP

HUB - (Use G13065) (Replaces G1086)

1шт.

G10660

X

WHEEL - (5.50 x 16 tire) (See VTA1303)

2шт.

G12050M

WHEEL WEIGHTS, set of 2 w/bolt (Mchy. Item)

1шт.

G13053

OIL SEAL

OIL SEAL - inner

2шт.

G13065

X

HUB - front wheel, includes bearing cups

2шт.

G57451

BEARING, CUP

CUP - inner bearing (Timken #LM-48510)

2шт.

G57452

ROLLER BEARING

CONE - inner bearing (Timken #LM-8548)

2шт.

4557AB

BOLT -, Serial Range: wheel-hub

12шт.

TB13280

X

CAP - wheel hub

2шт.

VTA1303

X

WHEEL (6.00 x 16 tire) For Utility tractor w/adjustable axle

2шт.

Выбрано товаров: 13
