Запчасти Case IH 300B-SERIES (128) - ADJUSTABLE FRONT AXLE, 301B, 311B, 411B GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

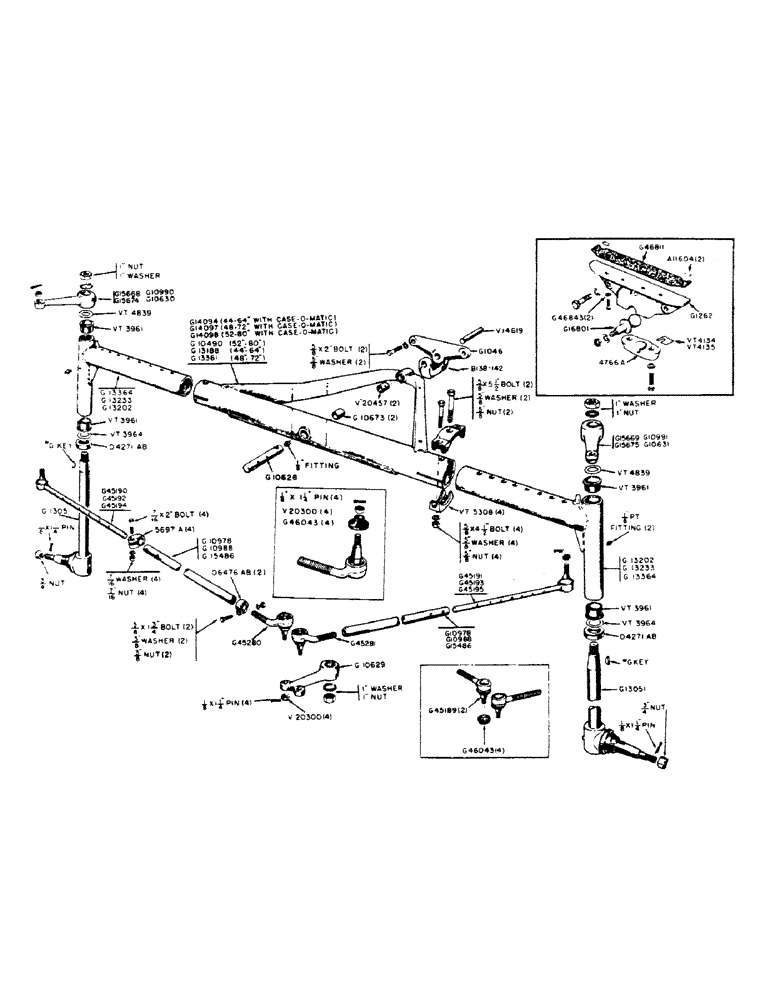

Схема запчастей Case IH 300B-SERIES - (128) - ADJUSTABLE FRONT AXLE, 301B, 311B, 411B GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A11604

OIL PAN GASKET SET

- pivot bracket to engine (411B)

2шт.

G1046

BRACKET - rear pivot (311B) See G1262

1шт.

5/8" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

G1262

BRACKET - rear pivot (411B) See G1228

1шт.

5/16" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G10490

TUBE - center (52"-80") includes pivot bushing (311B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G10628

PIN - pivot, front

1шт.

1/8" 45deg. fitting (Lincoln #5200)

1шт.

G10629

ARM - center steering

1шт.

#G Woodruff key

1шт.

G10630

ARM - steering spindle, R.H. (52"-80") Use with straight tie rod end (See G15674)

1шт.

G10631

X

ARM - steering spindle, L.H. (52"-80") Use with straight tie rod end (See G15675)

1шт.

G10673

BUSHING

- pivot, center tube

2шт.

G10978

TUBE

- tie rod, 20-3/8" long (52"-80")

2шт.

G10988

TUBE - tie rod, 16-3/8" long (44"-64")

2шт.

G10990

X

ARM - steering spindle, R.H. (44"-64" and 48"-72") use with straight tie-rod end (See G15668)

1шт.

G10991

ARM - steering spindle, L.H. (44"-64" and 48"-72") Use with straight tie-rod end (See G15669)

1шт.

G10351

GASKET

SPINDLE - wheel. R.H. and L.H.

2шт.

1" N.F. hex. nut and lockwasher

2шт.

#G Woodruff key

2шт.

G13188

TUBE - center (44"-64") includes pivot bushings (311B) 23.687" L

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G13202

TUBE - extension (52"-80") includes bushings

2шт.

1/8" str. fitting (Lincoln #5000)

2шт.

G13233

TUBE - extension (44"-64") includes bushings

2шт.

1/8" str. fitting (Lincoln #5000)

2шт.

G13361

TUBE - center (48"-72") includes pivot bushings (311B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G13364

TUBE - extension (48"-72") includes bushing

2шт.

1/8" str. fitting (Lincoln #5000)

2шт.

G14094

TUBE - center (44"-64") includes pivot bushings (411B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G14097

TUBE - center (48"-72") includes pivot bushings (411B)

1шт.

G14098

TUBE - center (52"-80") includes pivot bushings (411B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G15486

TUBE - tie, rod, 18-3/8" long (48"-72") 18.375" L

2шт.

G15668

ARM - steering spindle, R.H. (44"-64" and 48"-72") Use with off-set tie rod end (See G10990)

1шт.

G15669

ARM - steering spindle, L.H. (44"-64" and 48"-72") Use with off-set tie rod end (See G10991)

1шт.

G15674

ARM - steering spindle, R.H. (52"-80") Use with off-set tie rod end (See G10630)

1шт.

G15675

ARM - steering spindle, L.H. (52"-80") Use with off-set tie rod end (See G10631)

1шт.

G16801

BALL

- pivot radius rod rear (w/Case-O-Matic)

1шт.

5/8" N.C. hex. nut and lockwasher

1шт.

G45189

END

- tie rod, inner (straight) See G45280 and G45281

2шт.

G45190

TIE-ROD

TIE ROD - notched, R.H., 19-1/2" long (52"-80")

1шт.

G45191

ROD

TIE ROD - notched, L.H., 19-1/2" long (52"-80")

1шт.

G45192

END ASSY.

TIE ROD - notched, R.H., 17-1/2" long (48"-72")

1шт.

G45193

ROD

TIE ROD - notched, L.H., 17-1/2" long (48"-72")

1шт.

G45194

TIE ROD - notched, R.H., 15-1/2" long (44"-64")

1шт.

G45195

TIE ROD - notched, L.H., 15-1/2" long (44"-64")

1шт.

G45280

ROD

END - tie rod, R.H. inner (off-set) See G45189

1шт.

G45281

ROD

END - tie rod, L.H. inner (off-set) See G45189

1шт.

G46043

COVER

- dust, tie rod end

4шт.

G46811

GASKET

- rear pivot bracket (411B)

1шт.

G46843

X

WASHER - sealing, rear pivot bracket (w/Case-O-Matic)

2шт.

4766A

CAP - pivot ball (411B)

1шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

5697A

X

CLAMP - outer, tie rod

4шт.

7/16" x 2" N.F. hex. hd. bolt w/hex. nut and lockwasher

4шт.

4271AB

BEARING - thrust, wheel spindle (Timken #T-139)

2шт.

6476AB

CLAMP - inner, tie rod end (includes 3/8" x 1-3/4" bolt w/hex. nut and lockwasher)

2шт.

VT3961

X

BUSHING - wheel spindle (in extension tube)

4шт.

VT3964

X

WASHER - thrust, wheel spindle (2-3/8" O.D. x 1-13/32" I.D. x 5/32")

2шт.

VT4134

SHIM (.040") ball cap (w/Case-O-Matic)

1шт.

VT4135

SHIM (.010") ball cap (w/case-O-Matic)

1шт.

VT4839

X

SHIM - adjusting, wheel spindle (.010")

1шт.

VT5308

CLAMP - extension tube to center tube

4шт.

5/8" x 4-1/2" N.F. hex. hd. bolt w/hex. nut and lockwasher

4шт.

5/8" x 5-1/2" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

V14619

PIN - pivot, radius rod (311B)

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod end (9/16" N.F. slotted)

4шт.

1/8" x 1-1/4" cotter pin

4шт.

V20457

X

BUSHING - rear pivot, radius rod (311B)

1шт.

B138-142

ROLL PIN - radius rod pivot pin (1/4" x 2")

1шт.

Выбрано товаров: 75
