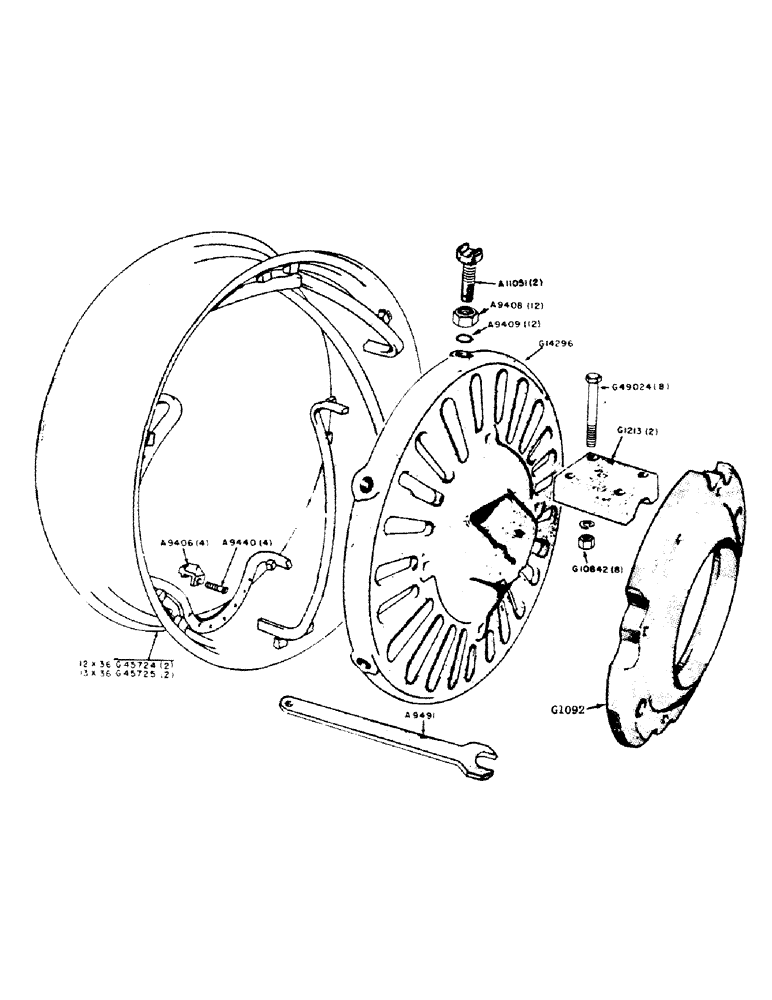

Запчасти Case IH 300B-SERIES (122) - POWER ADJUSTED WHEEL, 312B GENERAL PURPOSE TRACTOR (06) - POWER TRAIN

A9406

STOP

LUG - stop, rim

4шт.

A9408

NUT

- jack screw

12шт.

A9409

X

"O" RING - jack screw

12шт.

A9440

STOP

SCREW - rim stop

4шт.

A9491

WRENCH - jack screw

1шт.

A11501

SCREW - jack (includes A9408 nut)

12шт.

G1092

WEIGHT - wheel (Use G12018M or G12612M)

2шт.

G1213

CLAMP - wheel hub

2шт.

G1725

WHEEL (Use G14296)

1шт.

G10842

NUT

- hub bolt (3/4" N.F.)

8шт.

G12018M

WEIGHT - wheel, 2nd set (Set of 2, includes 4-5/8" x 3-1/4" carr. bolt w/hex. nut and lockwasher) Mach. Item

1шт.

G12612M

WEIGHT - wheel, 1st set (Set of 2, includes 4-5/8" x 3-3/4" carr. bolt w/hex. nut and lockwasher) Mach. Item

1шт.

G14296

WHEEL (includes matching clamp, 4-G49024 bolt and 4-G10942 nut w/I.T. Shakeproof lockwasher)

2шт.

G45724

RIM (W11-36) for 12.3 x 36 tire

2шт.

G45725

RIM (W12-36) for 13.9 x 36 tire

2шт.

G49024

BOLT - wheel hub (3/4" x 5-3/4")

8шт.

3/4" I.T. Shakeproof lockwasher

8шт.
