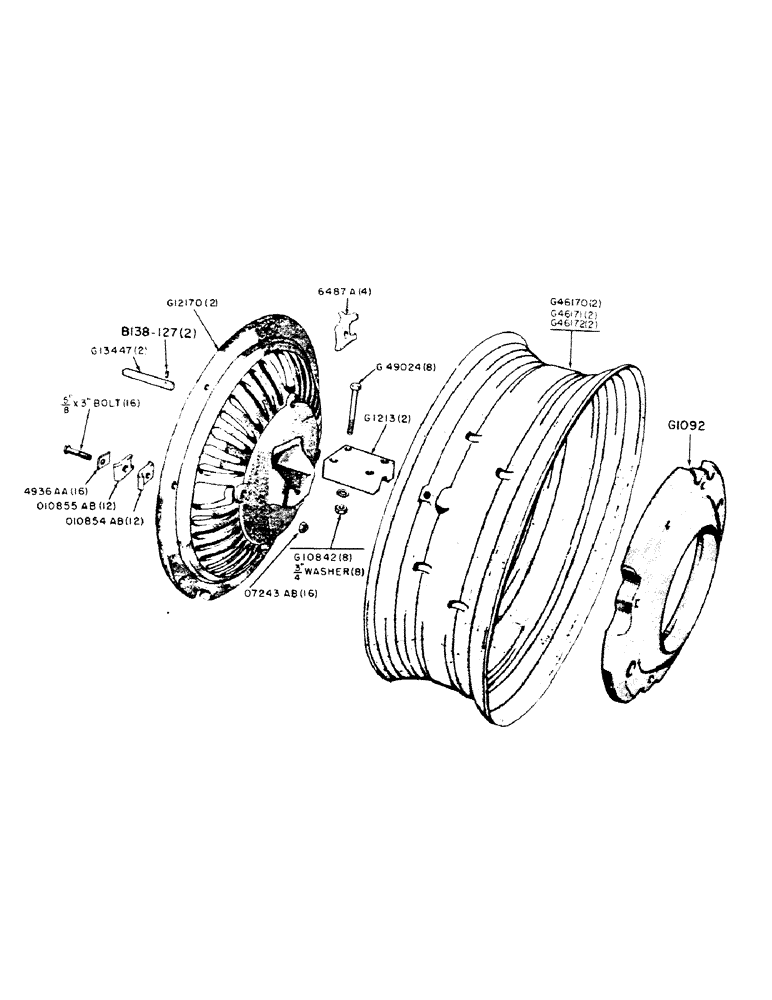

Запчасти Case IH 300B-SERIES (121) - REAR WHEELS , 312B GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

G1092

WEIGHT - wheel (Use G12018M or G12522M)

2шт.

G1201

WHEEL (Use G12170)

1шт.

G1213

CLAMP - wheel hub

2шт.

G10842

NUT

- hub bolt (3/4" N.F.)

8шт.

G12018M

WEIGHT - wheel, 2nd set (Set of 2, includes 4-5/8" x 3-1/4" carr. bolt w/hex. nut and lockwasher) Mach. Item

1шт.

G12170

WHEEL - rear (includes matching clamp, 4-G49024 bolts and 4-G10842 nuts w/lockwasher)

2шт.

G12522M

WEIGHT - wheel, 1st set (Set of 2, includes 4-5/8" x 4-1/2" carr. bolt w/hex. nut and lockwasher) Mach. Item

1шт.

G13447

KEY - wheel hub to axle (includes B138-127 roll pin)

2шт.

G46170

RIM (W10-36) for 11.2 x 36 tire

2шт.

G46171

RIM (W11-36) for 12.4 x 36 tire

2шт.

G46172

RIM (W12-36) for 13 x 36 tire

2шт.

G49024

BOLT - wheel hub clamp (3/4" x 5-3/4")

8шт.

3/4" I.T. Shakeproof lockwasher

8шт.

6487A

X

CLAMP - rim drive

4шт.

5/8" x 3" N.C. hex. hd. bolt

4шт.

4936AA

LUG - locking, rim clamp bolt

16шт.

7243AB

NUT - rim bolt

16шт.

10854AB

CLAMP - male, rim mounting

12шт.

5/8" x 3" N.C. hex. hd. bolt

12шт.

10855AB

CLAMP - female, rim mounting

12шт.

B138-127

ROLL PIN - G13447 key (1/4" x 1/2")

2шт.
