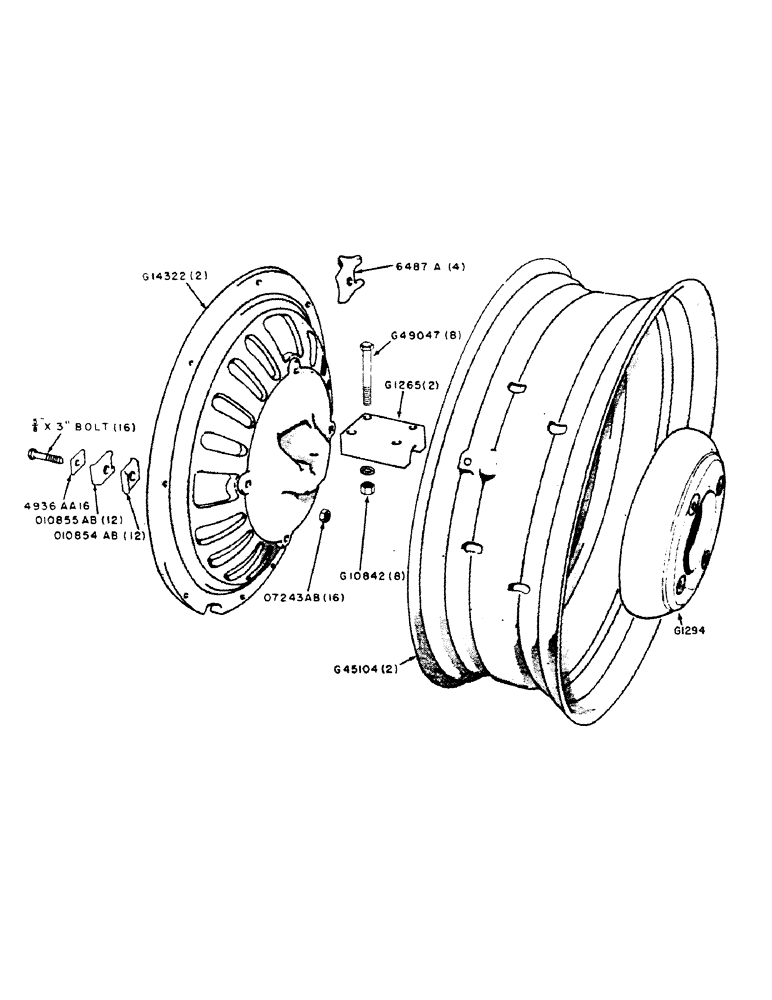

Запчасти Case IH 300B-SERIES (120) - REAR WHEELS, 411B GENERAL PURPOSE TRACTOR (06) - POWER TRAIN

G1264

WHEEL (Use G14322)

2шт.

G1265

CLAMP - wheel hub

2шт.

G1294

WEIGHT - wheel (Use G12536M)

2шт.

G10842

NUT

- hub bolt (3/4"NF)

8шт.

G12536M

WEIGHT - wheel (Set of 2, includes 4-5/8" x 4-3/4" carr. bolts w/hex. nut and lockwasher) Mach. Item

1шт.

G14322

WHEEL - rear (includes G1265 matching clamp, 4-G49047 bolts, 4-shakeproof lockwashers and 4-G10842 nuts)

2шт.

G45104

RIM - rear wheel (W12-28 for 12" x 28" or 13" x 28" tire)

2шт.

G49047

BOLT

- wheel hub (3/4" x 5")

8шт.

3/4" I.T. Shakeproof lockwasher

8шт.

6487A

X

CLAMP - rim drive

4шт.

5/8" x 3" NC hex. hd. bolt

4шт.

7243AB

NUT - rim clamp bolt

16шт.

10854AB

CLAMP - rim mounting, male

12шт.

5/8" x 3" NC hex. hd. bolt

12шт.

10855AB

CLAMP - rim mounting, female

12шт.

4936AA

LUG - locking, rim clamp bolt

16шт.
