Запчасти Case IH 300B-SERIES (119A) - REAR WHEELS AND RIMS, UTILITY TRACTORS BEFORE NO. 6128060 (06) - POWER TRAIN

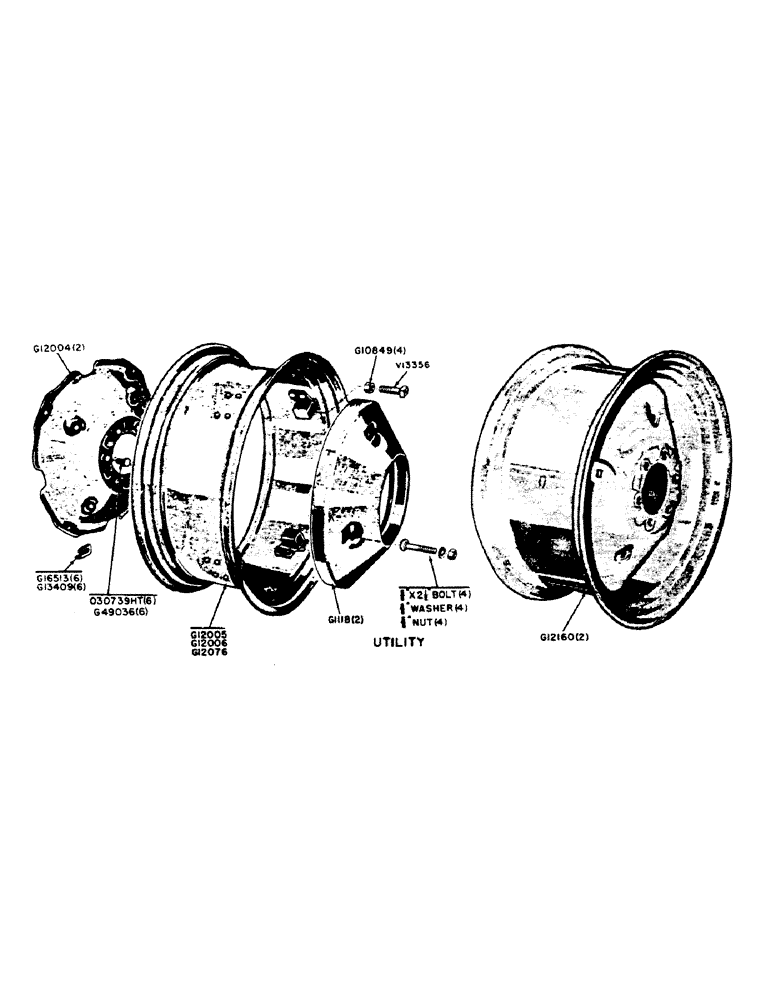

Схема запчастей Case IH 300B-SERIES - (119A) - REAR WHEELS AND RIMS, UTILITY TRACTORS BEFORE NO. 6128060 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G1118

WEIGHT - rear wheel (75 lbs.) See G12071M and G12072M

2шт.

G10849

NUT - flanged, rim bolt

8шт.

G12004

WHEEL - rear (See G12160)

2шт.

G12005

RIM - rear wheel (10" x 24" tire) Standard

2шт.

G12006

RIM - rear wheel (11" x 24" tire)

2шт.

G12071M

WEIGHT - wheel (set of 2 w/bolts) (Mchy. Item)

1шт.

G12072M

WEIGHT - wheel (set of 2 w/long bolts, for use as second pair) (Mchy. Item)

1шт.

G12076

RIM - rear wheel (13" x 24" tire)

2шт.

G12160

WHEEL - rear, complete with rim (11" or 13" x 24" tire) heavy duty

2шт.

G48004

X

BOLT - drive in, wheel to hub (includes special nut) (Used when threads in axle flange have been damaged) See G49036

12шт.

G49036

WHEEL BOLT

BOLT - wheel to hub (9/16" x 1-3/4") See G48004

12шт.

9/16" NF hex. jam nut

12шт.

30739HT

BOLT - wheel to hub (See G49036 or G48004)

12шт.

V13356

BOLT -, Serial Range: rim-wheel

8шт.

Выбрано товаров: 14
