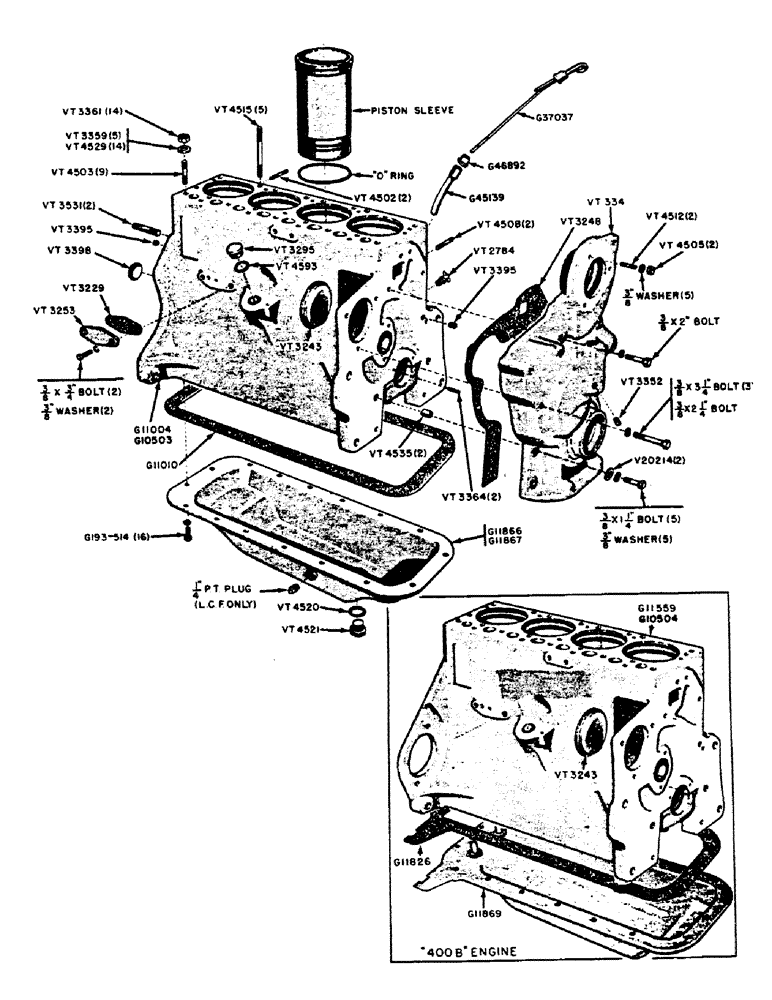

Запчасти Case IH 300B-SERIES (008) - SPARK IGNITION ENGINES, CYLINDER BLOCK, TIMING GEAR COVER, OIL PAN (02) - ENGINE

G1000

CASTING, (Use G11004 or G10502)

1шт.

G1235

CASTING, (Use G11559 or G10504)

1шт.

G10502

SHORT BLOCK ASSEMBLY - 300B Series, 148 Engine, 3-3/8" bore, (Includes studs, camshaft, cylinder sleeves, pistons and rings, rods, crankshaft, timing gears and oil pump)

1шт.

G10504

SHORT BLOCK ASSEMBLY - 400B Series, 148 Engine, 3-3/8" bore, (Includes studs, camshaft, cylinder sleeves, pistons and rings, rods, crankshaft, timing gears and oil pump)

1шт.

G11004

BLOCK - cylinder, stripped (300B Series), 148 Engine, 3-3/8" bore

1шт.

G11559

BLOCK - cylinder, stripped, (400B Series), 148 Engine, 3-3/8" bore

1шт.

G37037

DIPSTICK

- oil level (Includes G46892 seal)

1шт.

G45139

BRACKET

SUPPORT - dipstick

1шт.

G46892

OIL SEAL

- rubber, dipstick

1шт.

VT2784

X

VALVE - water drain, cylinder block

1шт.

VT3229

X

GASKET - oil filter pad

1шт.

VT3243

X

COVER - magneto drive hole

1шт.

VT3253

PAD - oil filter opening

1шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

VT3295

COVER - distributor drive hole

1шт.

VT3359

WASHER - cylinder head studs (LPG)

5шт.

VT3361

X

NUT - cylinder head studs

14шт.

VT3395

X

PLUG - pipe, oil galler (1/8" socket hd.)

2шт.

VT3398

X

PLUG - rear, camshaft bearing (2-1/8" Hubbard)

1шт.

VT3531

X

STUD - block to torque tube (5/8" x 3")

2шт.

VT4502

STUD - engine block to cable clip (3/8" x 1-1/2")

2шт.

VT4503

X

STUD - cylinder head (1/2" x 2")

9шт.

VT4508

STUD - generator mounting bracket (3/8" x 1-1/4")

2шт.

VT4515

X

STUD - cylinder head (1/2" x 5-7/8")

5шт.

VT4529

WASHER

- cylinder head studs (9 for LPG - See VT3359)

14шт.

VT4593

X

"O" RING - distributor hole seal

1шт.

VT334

COVER - timing gear

1шт.

3/8" x 1-1/4" hex. head bolt, UNC w/lockwasher

5шт.

3/8" x 2" hex. head bolt, UNC w/lockwasher

1шт.

3/8" x 2-1/4" hex. head bolt, UNC w/lockwasher

1шт.

3/8" x 3-1/4" hex. head bolt, UNC w/lockwasher

3шт.

VT3248

X

GASKET - timing gear cover

1шт.

VT3352

X

PLUG - pipe, 1/8" slotted, timing gear cover

1шт.

VT4505

NUT - water pump stud (3/8" hex.), timing gear cover

2шт.

VT4512

X

STUD - water pump (3/8" x 1"), timing gear cover

2шт.

VT4535

X

RING - dowel, timing gear, Serial Range: cover-block

2шт.

V20214

WASHER

- cover bolt (3/4" O.D. x 13/32" I.D. x 1/16"), timing gear cover

2шт.

G11010

X

GASKET KIT - oil pan, 300B Series (Includes VT4520 gasket)

1шт.

G11826

X

GASKET KIT - oil pan, 400B Series (Includes VT4520 gasket)

1шт.

G11866

X

OIL PAN - 300B Series gasoline and L.P.G. (Includes VT4521 plug, VT4520 gasket and 16-G193-514 attaching bolts)

1шт.

G11867

OIL PAN - 300B Series low cost fuel (Includes VT4521 plug, VT4520 gasket and 16-G193-514 attaching bolts)

1шт.

G11869

OIL PAN - 400B Series (Includes VT4521 plug, VT4520 gasket and 14-G193-514 attaching bolts)

1шт.

VT4520

X

GASKET - drain plug, oil pan

1шт.

VT4521

X

PLUG - drain, oil pan

1шт.
