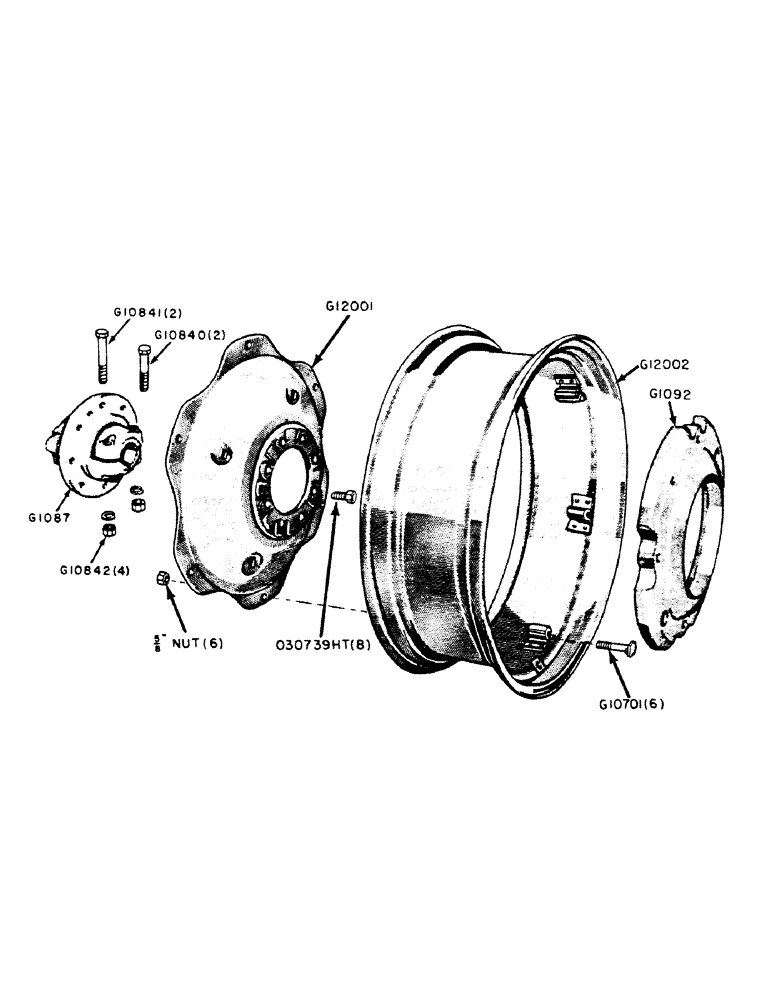

Запчасти Case IH 300B-SERIES (118) - REAR WHEELS AND RIMS, 301B, 311B GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

G1087

X

HUB - rear wheel

2шт.

G1092

WEIGHT - wheel (Use G12018M)

2шт.

G10701

BOLT

- rim, rear wheel (5/8" x 2-11/16" key hd., NF)

12шт.

5/8" hex. nut, NF

12шт.

G10840

BOLT

- wheel hub clamp (3/4" x 3-3/4")

4шт.

G10841

BOLT

BOLT - wheel hub (3/4" x 4-1/2")

4шт.

G10842

NUT

- wheel hub bolt (3/4" NF)

8шт.

3/4" lockwasher

8шт.

G12001

DISC

WHEEL - rear (28" rim)

2шт.

G12002

RIM

- rear wheel (11" x 28" tires)

2шт.

G12018M

WEIGHT - wheel (Set of 2, includes 4-5/8" x 3-1/4" carr. bolts w/hex. nut and lockwasher) Mach. Item

1шт.

30739HT

BOLT -, Serial Range: wheel-hub

16шт.
