Запчасти Case IH 300B-SERIES (116) - DIFFERENTIAL BRAKE ASSEMBLY (06) - POWER TRAIN

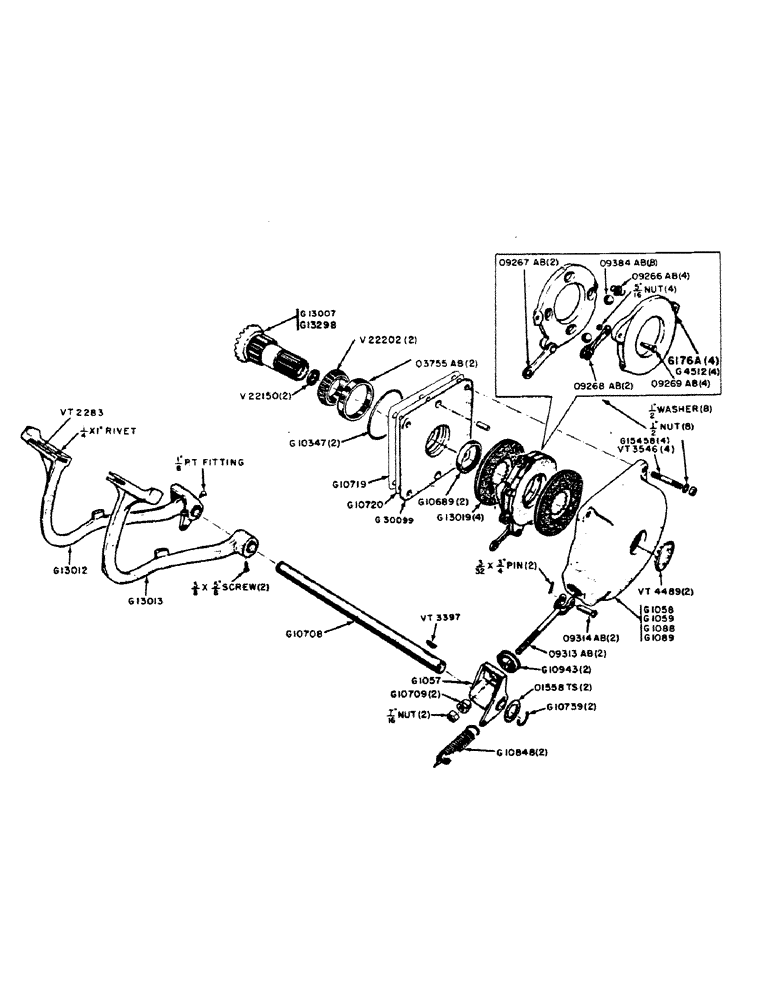

Схема запчастей Case IH 300B-SERIES - (116) - DIFFERENTIAL BRAKE ASSEMBLY (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G1057

LEVER

- brake cross shaft, LH

1шт.

G1058

COVER - brake, RH (Gen. Purpose)

1шт.

G1059

COVER - brake, LH (Gen. Purpose)

1шт.

G1070

CARRIER (Use G30099)

1шт.

G1072

PEDAL - brake, RH (Use G13012)

1шт.

G1073

X

PEDAL - brake, LH (Use G13013)

1шт.

G1088

COVER - brake, RH (Utility)

1шт.

G1089

COVER - brake, LH (Utility)

1шт.

G4512

DISC

- brake actuating (Tractor #6120689 and after) See 6176A

4шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - inner seal, axle housing (5-1/4" dia.)

2шт.

G10689

SEAL

OIL SEAL - bearing carrier

2шт.

G10708

SHAFT

- cross, clutch and brake pedals

1шт.

G10709

NUT

- brake rod adjusting (7/16" NF special)

2шт.

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

G10739

X

SNAP RING - brake pedal cross shaft

2шт.

G10848

SPRING

- brake pedal return

2шт.

G10943

DUST CAP

CAP - dust, brake rod

2шт.

G13007

GEAR - differential side, includes plug (Before tractor #6098668)

2шт.

G13012

PEDAL

- brake, RH (includes VT2283 interlock and rivet)

1шт.

1/8" 67-1/2deg. fitting (Lincoln #5300)

1шт.

G13013

PEDAL

- brake, LH (includes 3/8" x 5/8" NC sq. hd. cup pt. set screw)

1шт.

G13019

DISC

- middle, with bonded brake lining

4шт.

REF PART NUMBER G13019 IF DEALER LOOKING FOR A 7" DIA DISC, SEE COMMENTS ON

1шт.

PT # 1975466C2 (SUBBED FROM A40794) JMB 2/26/96

1шт.

G13298

GEAR - differential side, includes plug (Tractor #6098668 and after)

2шт.

G15458

STUD

- brake cover to transmission (1/2" x 4-1/2") (Utility)

4шт.

1/2" hex. nut, NC and lockwasher

4шт.

G30099

CARRIER - bearing, side gear

2шт.

3/8" x 3/4" flat hd. mach. screw (Spin Lock)

4шт.

6176A

X

DISC - brake actuating (Before tractor #6120689) See G4512

4шт.

3755AB

CUP - bearing, carrier (Timken #394A)

2шт.

9266AB

SPRING - actuating, brake discs

4шт.

9267AB

LINK - plain actuating, brake discs

2шт.

9268AB

LINK - straddle, brake actuating

2шт.

9269AB

BOLT - actuating link stud

4шт.

5/16" hex. jam nut. NF

4шт.

9313AB

ROD - brake yoke link

2шт.

9314AB

PIN - yoke, brake rod

2шт.

3/32" x 3/4" cotter pin

2шт.

9384AB

BALL - actuating disc (7/8" dia.)

8шт.

1558TS

WASHER - brake shaft ends (1-7/8" OD x 1-3/32" ID #16 ga.)

2шт.

V22202

BELLCRANK

CONE - bearing, carrier (Timken #390)

2шт.

V22150

CAP

PLUG - differential side gear

2шт.

VT2283

INTERLOCK - brake pedal

1шт.

1/4" x 1-1/4" ctsk. hd. rivet

1шт.

VT3397

KEY - G13013 brake pedal and G1057 brake, Serial Range: lever-shaft

2шт.

VT3546

X

STUD - brake cover to transmission (1/2" x 2-1/2") (8 for Gen. Purpose and 4 for Utility) See G15458

8шт.

1/2" hex. nut, NC and lockwasher

8шт.

VT4489

X

PLUG - button, brake cover

2шт.

Выбрано товаров: 50
