Запчасти Case IH 300B-SERIES (110) - TRANSMISSION CASE AND REAR AXLE HOUSINGS, GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

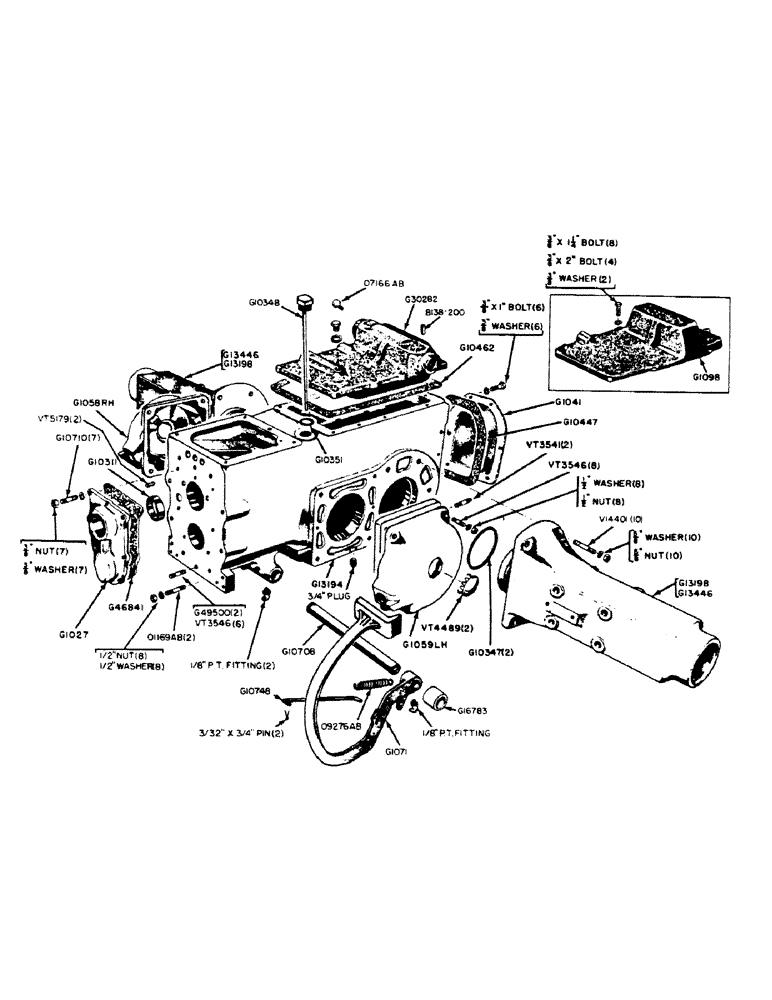

Схема запчастей Case IH 300B-SERIES - (110) - TRANSMISSION CASE AND REAR AXLE HOUSINGS, GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G1027

COVER

- front, transmission case (4-speed transmission only)

1шт.

G1029

HOUSING (Use G13198)

1шт.

G1030

CASE - transmission (Use G13194)

1шт.

G1041

COVER

- rear, transmission case (without P.T.O. only)

1шт.

3/8" x 1" NC hex. hd. bolt w/lockwasher

6шт.

G1042

HOUSING - E.H. rockshaft (Use G30382) See Page 171

1шт.

G1058

COVER - RH brake

1шт.

G1059

COVER - LH brake

1шт.

G1071

PEDAL - clutch

1шт.

1/8" 67-1/2deg. fitting (Lincoln #5300)

1шт.

G1098

COVER - transmission case (without Eagle Hitch)

1шт.

3/8" x 1-1/4" NC hex. hd. bolt w/lockwasher

8шт.

3/8" x 2" NC hex. hd. bolt w/lockwasher

4шт.

G1200

HOUSING (Use G13446)

1шт.

G1351

HOUSING - E.H. rockshaft (Use G30382) See Page 171

1шт.

G10311

COLLAR

- pilot, for G1027 cover

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - inner seal, axle housing (5-1/4" dia.)

2шт.

G10348

DIPSTICK

- transmission oil level

1шт.

G10351

GASKET

- dipstick

1шт.

G10447

GASKET

- G1041, Serial Range: cover-case

1шт.

G10462

GASKET

- G1098 or G1042 to transmission case

1шт.

G10708

SHAFT

- clutch and brake pedals

1шт.

G10710

STUD

- front cover to transmission case (3/8" x 1-5/8")

7шт.

3/8" NF hex. nut and lockwasher

7шт.

G10748

LINK

ROD - clutch, Serial Range: pedal-lever

1шт.

3/32" x 3/4" cotter pin

2шт.

G13194

CASE - transmission (includes 2-VT2067 snap rings, 2-VT2097 bearing cups and 7-G10710, 2-G49500, 2-01169AB, 2-VT3541, 14-VT3546 and 10-VT3716 studs)

1шт.

3/4" std. sq. hd. pipe plug

1шт.

1/8" 45deg. fitting (Lincoln #5200)

2шт.

G13198

HOUSING - rear axle, includes bearing cups (301B, 311B, 411B)

2шт.

G13446

HOUSING - rear axle, includes bearing cups (302B, 312B)

2шт.

G16783

SPACER

- cross shaft (In place of G1071 pedal w/Case-O-Matic)

1шт.

G46841

GASKET

- front cover

1шт.

G49500

STUD

- torque tube to transmission case (1/2" x 2-13/16")

2шт.

1/4" NF hex. nut and lockwasher

2шт.

1169AB

STUD - torque tube to transmission case (1/2" x 4-7/8")

2шт.

1/2" NF hex. nut and lockwasher

2шт.

7166AB

BREATHER - rear cover, transmission case

1шт.

9276AB

SPRING - return, clutch pedal

1шт.

VT3541

STUD - drawbar support to transmission case (5/8" x 2")

2шт.

5/8" NF hex. nut and lockwasher

2шт.

VT3546

X

STUD - torque tube and brake cover (1/2" x 2-1/2")

14шт.

1/2" NF hex. nut and lockwasher

14шт.

VT4489

X

PLUG - button, brake cover

2шт.

VT5179

X

DOWEL - torque tube to transmission case (1/2" x 1-5/16")

2шт.

V14401

STUD - axle housing to transmission case (5/8" x 2-11/16")

10шт.

5/8" NF hex. nut and lockwasher

10шт.

B138-200

ROLL PIN - E.H. rockshaft housing to transmission case (1/2"x1")

1шт.

Выбрано товаров: 48
