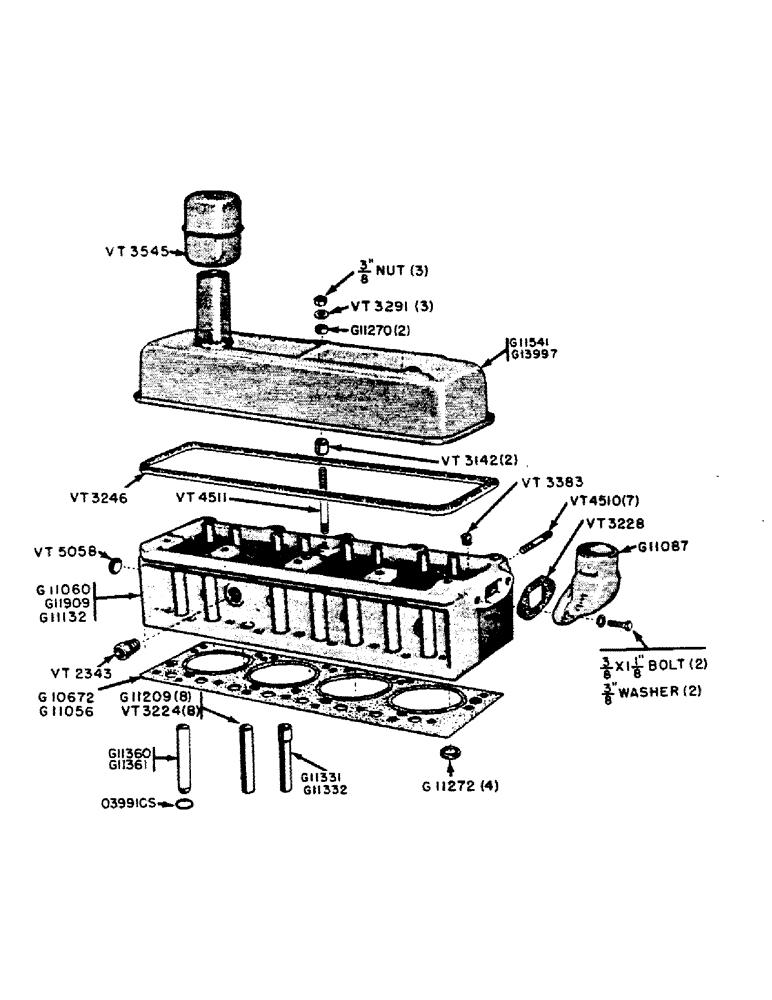

Запчасти Case IH 300B-SERIES (006) - SPARK IGNITION ENGINES, CYLINDER HEAD (02) - ENGINE

G1134

HEAD (Use G11060)

1шт.

G1148

HEAD (Use G11909)

1шт.

G1153

ELBOW (Use G11087)

1шт.

G1160

HEAD (Use G11132)

1шт.

G10672

CYLINDER HEAD GASKET

- head to block (gasoline and L.P.G.)

1шт.

G11056

O-RING

GASKET - head to block (low cost fuel)

1шт.

G11060

O-RING

HEAD - cylinder (includes guides, tube, inserts and safety plugs) low cost fuel

1шт.

G11087

ELBOW - water outlet (includes 3/8" pipe plug)

1шт.

3/8" x 1-1/4 N.C. hex. hd. bolt w/lockwasher

2шт.

G11132

CYLINDER HEAD

HEAD - cylinder (includes guides, tubes, "O" rings, inserts and plugs) L.P.G.

1шт.

G11209

TUBE - push rod (L.P.G.)

8шт.

G11270

SPACER

- valve cover stud

2шт.

G11272

INSERT

S - exhaust valve seat (See Page 15)

4шт.

G11331

TUBE - push rod (gasoline and low cost fuel) step type 0.687" OD x 3.281" L

8шт.

G11332

TUBE - push rod (L.P.G.) step type

8шт.

G11360

TUBE,0.687" OD x 3.687" L

- push rod, (gasoline) Beveled edge type

8шт.

G11361

TUBE - push rod (L.P.G.) Beveled edge type

8шт.

G11541

COVER - valve assembly (L.P.G.)

1шт.

G11909

HEAD - cylinder (includes guides, tubes, "O" rings, inserts and plugs) gasoline

1шт.

REF: G11909 HEAD - CYLINDER

1шт.

USE A G11888 CYL. HEAD W/VALVES, SPRINGS & GUIDES TO REPLACE THIS HEAD.

1шт.

G11888 HEAD WITH VALVES IS USED BECAUSE HEAD USES DIFFERENT SIZE VALVE THAN WAS USED IN G11909. G11874 IS STRIPPED HEAD W/

1шт.

GUIDES ONLY. 24-MAY-96

1шт.

IF THERE IS TROUBLE GETTING THE CORRECT VALVE SETTING OR VALVES WONT CLOSE BUY SHORTER PUSH RODS G11086 11 5/64" IN LIEU OF

1шт.

VTA864 (A30259) 11 9/30" (11 18/64") LONG DIFFERENCE OF 13/64(203) VALVES USED IN G11888 HEAD AN 5.25" LENGTH VALVE USED IN G11909 HEAD AN 5" LENGTH VT3232-A30347, VT3233 USE A30348. 24-MAY-96

1шт.

G13997

COVER - valve assembly (gasoline and low cost fuel)

1шт.

3/8" N.C. hex nut

3шт.

VT137

ELBOW (Use G11087)

1шт.

VT2343

X

ADAPTER - temperature gauge heat bulb

1шт.

VT3142

X

SPACER - under valve cover

2шт.

VT3224

TUBE - push rod (gasoline and low cost fuel)

8шт.

VT3228

X

GASKET - elbow, water outlet

1шт.

VT3246

GASKET - valve, Serial Range: cover-head

1шт.

VT3291

X

WASHER - valve cover stud (3/4" O.D. x 13/32" I.D. x 1/8")

3шт.

VT3383

X

PLUG - heat fuse

1шт.

VT3545

X

CAP - oil filler and breather

1шт.

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

7шт.

VT4511

STUD - valve cover (3/8" x 5")

1шт.

VT5058

PLUG - safety freeze (1-1/8" Hubbard)

1шт.

3991CS

"O" RING - push rod tube

16шт.
