(095) - INSTRUMENT PANEL, CASE-O-MATIC DRIVE

Запчасти Case IH 300B-SERIES (095) - INSTRUMENT PANEL, CASE-O-MATIC DRIVE (06) - POWER TRAIN

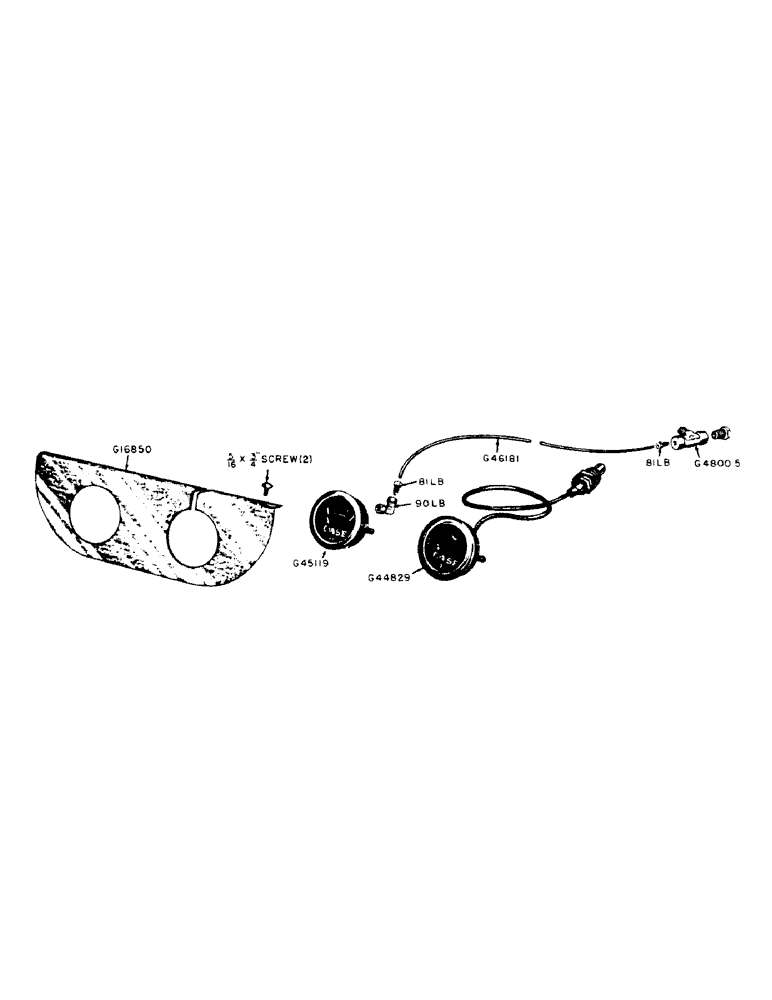

Схема запчастей Case IH 300B-SERIES - (095) - INSTRUMENT PANEL, CASE-O-MATIC DRIVE (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G222-520

ELBOW - pressure line to gage (90LB - 1/8" x 1/8")

1шт.

G16850

PANEL - Case-O-Matic drive gages

1шт.

5/16" x 3/4" truss hd. mach. screw

2шт.

G44829

GAUGE

GAGE - oil temperature

1шт.

G45119

GAUGE

GAGE - pressure

1шт.

G46181

LINE - oil pressure 0.125" OD x 23" L

1шт.

G48005

TEE

FITTING - control valve (Includes G222-500- 1/8" tube nut)

1шт.
