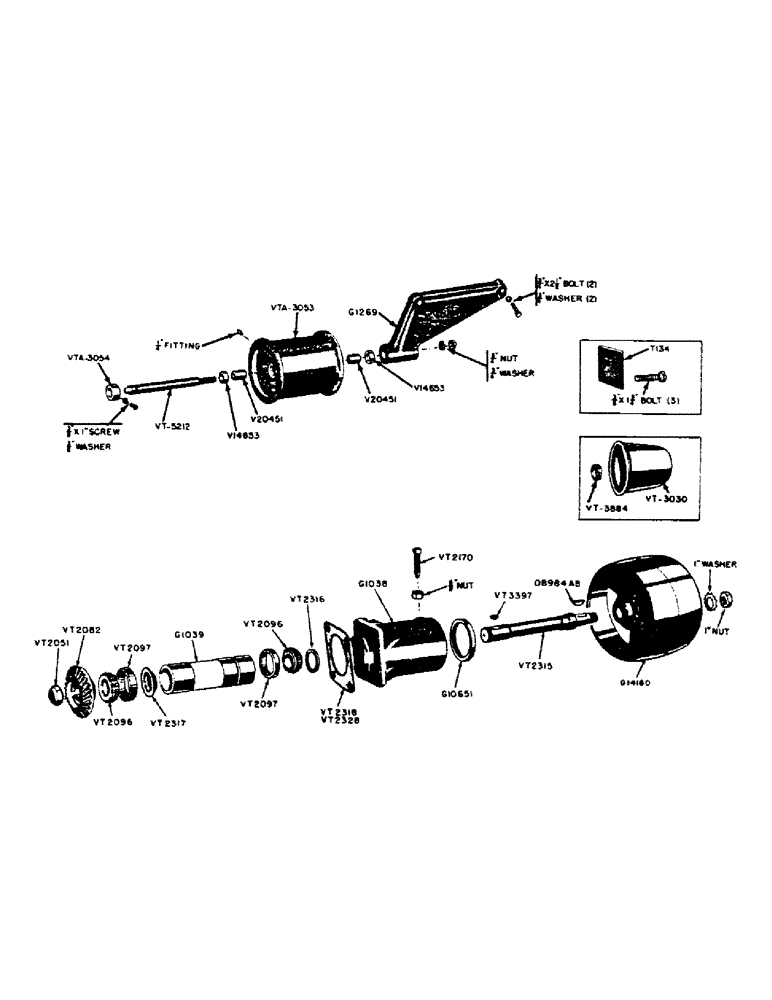

Запчасти Case IH 300B-SERIES (087) - BELT PULLEY ATTACHMENT, IDLER PULLEY WITH ADJUSTABLE FRONT AXLE, 300B SERIES TRACTORS (06) - POWER TRAIN

G1038

HOUSING - sleeve, belt pulley

1шт.

5/8" x 1-1/2" hex. hd. bolt, NC w/I.T. Shakeproof lockwasher

4шт.

G1039

SLEEVE - belt pulley shaft

1шт.

G10651

OIL SEAL

- front, sleeve housing

1шт.

G14160

PULLEY - belt (9-1/4" O.D. x 6-3/8" wide)

1шт.

T134

PULLER - belt pulley

1шт.

3/8" x 1-3/4" hex. hd bolt, NC

3шт.

8984AB

KEY - pulley to shaft (Woodruff)

1шт.

VT2051

NUT - adjusting, shaft

1шт.

VT2082

GEAR - belt pulley shaft

1шт.

VT2096

X

CONE - bearing (Timken #14137-A)

2шт.

A29977

BEARING CUP

CUP - bearing (Timken #14276) (Replaces VT2097)

2шт.

VT2170

SET SCREW - belt pulley sleeve

1шт.

5/8" hex. nut, NC

1шт.

VT2315

SHAFT - belt pulley

1шт.

1" hex. jam nut, NF and E.T. Shakeproof lockwasher

1шт.

VT2316

X

OIL SEAL - pulley shaft

1шт.

VT2317

SHIELD - oil, shaft

1шт.

VT2318

SHIM - pulley sleeve housing (.005" blue)

1шт.

VT2328

SHIM - pulley sleeve housing (.003" green)

1шт.

VT3030

COVER - pulley shaft

1шт.

VT3397

KEY - gear to shaft (Woodruff)

1шт.

VT3884

SPACER - between cover and shaft

1шт.

G1269

BRACKET - mounting, idler pulley (tractors w/ adjustable front axle)

1шт.

3/4" x 2-1/2" hex. hd. bolt, NC w/lockwasher

2шт.

VT631

PULLEY (Use VTA3053), idler (tractors w/ adjustable front axle)

1шт.

V14653

OIL SEAL, idler pulley (tractors w/ adjustable front axle)

2шт.

V20451

BUSHING - idler pulley (tractors w/ adjustable front axle)

2шт.

VT5212

SHAFT - idler pulley (tractors w/ adjustable front axle)

1шт.

3/4" hex. nut, NC and lockwasher

1шт.

VTA3053

PULLEY - idler, includes bushings, (tractors w/ adjustable front axle)

1шт.

1/4" str. drive fitting (Alemite #1743)

1шт.

VTA3054

THRUST COLLAR ASSEMBLY, idler pulley (tractors w/ adjustable front axle)

1шт.

3/8" x 1" sq. hd. dog pt. set screw w/hex. jam nut

1шт.
