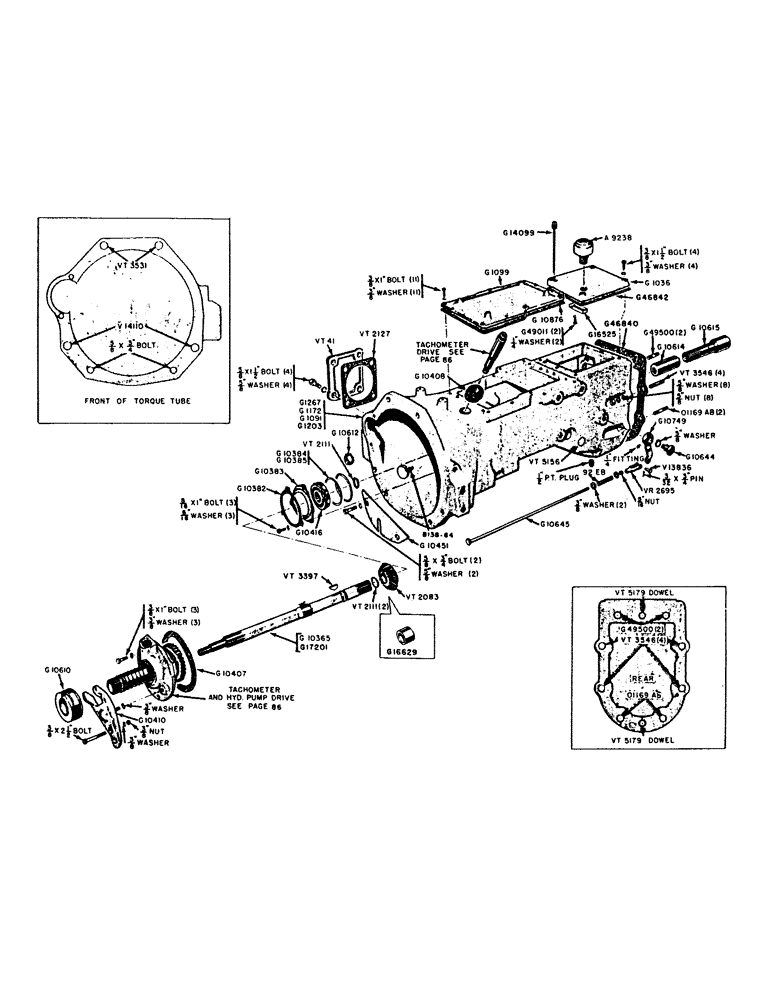

Запчасти Case IH 300B-SERIES (084) - TORQUE TUBE, 300B SERIES TRACTORS (06) - POWER TRAIN

A9238

BREATHER

- rear cover

1шт.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather

1шт.

B138-64

ROLL PIN - timing pointer (1/8" x 1-3/8")

1шт.

G1036

COVER - rear, torque tube (w/4 speed transmission)

1шт.

3/8" x 1-1/2" NC hex. hd. bolt w/lockwasher

4шт.

G1091

TUBE - torque (diesel)

1шт.

G1099

COVER

- front, torque tube (tractors without hydraulics)

1шт.

3/8" x 1" NC hex. hd. bolt w/lockwasher

11шт.

G1172

TUBE - torque (spark ignition engine)

1шт.

1/2" sq. hd. pipe plug

1шт.

G1203

TUBE - torque (diesel engine w/shuttle transmission)

1шт.

G1267

TUBE - torque (spark ignition engine w/shuttle)

1шт.

G10365

SHAFT - clutch main drive (Before Tractor #6097696)

1шт.

G10382

LOCK

- bearing retainer

1шт.

5/16" x 1" NC hex. hd. bolt w/lockwasher

3шт.

G10383

BEARING CAP

CAP - clutch shaft bearing

1шт.

G10384

SHIM - adjusting, rear bearing (.005")

1шт.

G10385

SHIM - adjusting, rear bearing (.010")

1шт.

G10407

GASKET

- tachometer drive housing

1шт.

G10408

SEAL

- rubber, tachometer drive opening

1шт.

G10410

X

YOKE - clutch throwout

1шт.

3/8" x 2-1/2" hex. hd. bolt (NC cut thrd.) w/hex. nut and lockwasher

1шт.

G10416

BALL BEARING,30mm ID x 72mm OD x 19mm W

BEARING - clutch main shaft (ND #43306)

1шт.

G10451

COVER - flywheel

1шт.

5/8" x 3/4" NC hex. hd. bolt w/lockwasher

2шт.

G10610

BEARING ASSY

BEARING - throwout

1шт.

G10612

COVER

- plug button, timing hole

1шт.

G10614

SLEEVE - drive shaft coupling (without hand clutch)

1шт.

G10615

SLEEVE - drive shaft coupling (4-speed transmission only)

1шт.

G10644

SCREW

BOLT - shoulder, clutch lever

1шт.

5/8" lockwasher (Shakeproof)

1шт.

G10645

ROD - clutch throwout

1шт.

G10749

LEVER - clutch throwout rod

1шт.

1/4" grease fitting (Lincoln #5013)

1шт.

G10876

GASKET

- for G1099 front cover

1шт.

G14099

TUBE,1.5, 3.562" L

DIPSTICK - oil level, torque tube

1шт.

G16525

DEFLECTOR - oil, under G1036 cover

1шт.

G16629

SPACER - clutch shaft (replaces VT2083 gear w/shuttle)

1шт.

G17201

SHAFT - clutch main drive (Tractor #6097696 and after)

1шт.

G46840

GASKET

GASKET - torque tube to transmission case

1шт.

G46842

GASKET

- rear cover

1шт.

G49011

SCREW - cap, oil deflector

2шт.

1/4" lockwasher

2шт.

G49500

STUD

- upper, torque tube to transmission (1/2" x 2-3/16")

2шт.

1/2" NF hex. nut and lockwasher

2шт.

1169AB

STUD - torque tube to transmission (1/2" x 4-7/8")

2шт.

1/2" NC hex. nut and lockwasher

2шт.

V13836

PIN - yoke

1шт.

3/32" x 3/4" cotter pin

1шт.

V14110

BOLT - ground body, torque tube to engine (5/8" x 3-1/2")

2шт.

5/8" NF hex. nut and lockwasher

2шт.

VR2695

X

YOKE - clutch throwout rod

1шт.

5/16" NF hex. jam nut

1шт.

VT41

COVER - belt pulley opening

1шт.

5/8" x 1-1/2" NC hex. hd. bolt w/Shakeproof lockwasher

4шт.

VT2083

GEAR - drive, belt pulley

1шт.

VT2111

X

SNAP RING - retaining, drive gear

2шт.

VT2127

X

GASKET - belt pulley opening

1шт.

VT3397

KEY - drive gear, belt pulley

1шт.

VT3531

X

STUD - torque tube to engine (5/8" x 3")

2шт.

5/8" NF hex. nut and lockwasher

2шт.

VT3546

X

STUD - torque tube to transmission (1/2" x 2-1/2")

4шт.

VT5156

PLUG - expansion (hand clutch lever opening)

1шт.

VT5179

X

DOWEL - torque, Serial Range: tube-transmission

2шт.

92EB

SPRING - clutch throwout rod

1шт.

3/8" plain washer

2шт.
