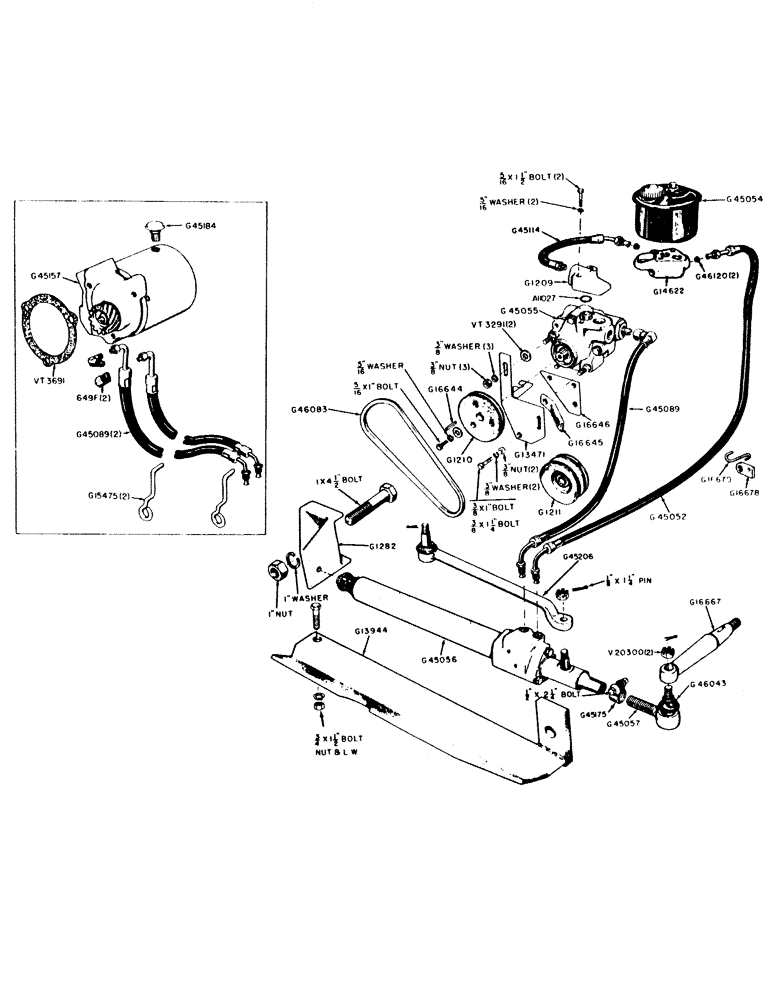

Запчасти Case IH 300B-SERIES (148) - POWER STEERING ATTACHMENT W/BELT DRIVEN PUMP, W/GEAR DRIVEN PUMP, GAS UTILITY TRACTOR (05) - STEERING

A8248

PLATE - name (under steering wheel nut)

1шт.

A11027

GASKET

"O" RING -, Serial Range: pump-adapter

1шт.

G1209

ADAPTER - G45114, Serial Range: hose-pump

1шт.

5/16" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

G1210

BULB

PULLEY - hydraulic pump

1шт.

5/16" x 1" N.C. hex. hd. bolt w/lockwasher and plain washer

1шт.

G1211

PULLEY - double, generator

1шт.

G1282

BRACKET - mounting, Serial Range: cylinder-axle

1шт.

1" x 4-1/2" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G1283

ADAPTER - reservoir (Use G14622)

1шт.

G13471

SUPPORT - pump mounting plate

1шт.

3/8" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G13944

GUARD - cylinder and valve

1шт.

3/4" x 1-1/2" N.C. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G14622

ADAPTER - reservoir (Includes G46120 seats)

1шт.

5/16" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G16644

KEY -, Serial Range: pulley-pump

1шт.

G16645

BRACE - radiator

1шт.

G16646

PLATE - mounting pump

1шт.

G16647

BRACKET - mounting, reservoir

1шт.

G16667

X

ARM - steering, tie rod end to L.H. spindle

1шт.

G16678

LUG - hose clip

1шт.

G16679

CLIP -, Serial Range: hose-block

1шт.

G45051

HOSE - reservoir to pump (13" long)

1шт.

G45054

RESERVOIR

- hydraulic oil

1шт.

G45055

PUMP - hydraulic

1шт.

3/8" N.F. hex. nut and lockwasher

3шт.

G45056

CYLINDER

AND VALVE - hydraulic

1шт.

G45057

X

END - tie-rod, cylinder and valve to steering arm

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G45089

HOSE - pump to cylinder valve (44" long)

1шт.

G45113

HOSE - cylinder valve to reservoir (52" long)

1шт.

G45175

CLAMP

- tie rod (1-1/4" I.D.) (Includes 1/2" x 2-1/4" N.F. hex. hd. bolt w/hex. nut and lockwasher)

1шт.

G45206

DRAG LINK

- center steering, Serial Range: arm-cylinder

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

1/2" N.F. slotted hex. nut

1шт.

G46043

COVER

- dust, tie rod end

1шт.

G46083

V-BELT,0.42" W x 7.50" L

Drive, Hydraulic Power Steering Pump 0.42" W x 7.50" L

1шт.

G46120

SEAT,0.375" DIA.

- reservoir hose

2шт.

V14102

SEAL KIT

BOLT - VT5114 clamp

1шт.

5/16" N.F. hex. nut and lockwasher

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod end

1шт.

VT3291

X

WASHER - spacer, pump mounting (1" O.D. x 13/32" I.D. x 1/8")

3шт.

VT5114

CLAMP

- tie rod (7/8" I.D.) See G45175

1шт.

G15475

SUPPORT - hose, power steering attachment w/ gear driven pump gas utility tractors

2шт.

5/8" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

G30484

KIT

- pump replacement (includes G11346 generator bracket, G222-769 elbow and G222-1042 connector), power steering attachment w/ gear driven pump gas utility tractors

1шт.

When replacing old style pump, with 1/4" P.T. port holes, order G30484 kit also. G222-926, 3/8" O.D. x 3/8" female P.T. included in kit is used only on Gen. Purpose Tractors.

1шт.

G45089

HOSE - pump to cylinder valve (44" long), power steering attachment w/ gear driven pump gas utility tractors

2шт.

G45184

BREATHER

- pump and reservoir, power steering attachment w/ gear driven pump gas utility tractors

1шт.

G45231

PUMP, HYDRAULIC

PUMP AND RESERVOIR (includes G45184 breather), power steering attachment w/ gear driven pump gas utility tractors

1шт.

When replacing old style pump, with 1/4" P.T. port holes, order G30484 kit also. G222-926, 3/8" O.D. x 3/8" female P.T. included in kit is used only on Gen. Purpose Tractors.

1шт.

3/8" x 3-1/8" N.C. hex. hd. bolt w/lockwasher

3шт.

VT3691

X

GASKET - pump to block, power steering attachment w/ gear driven pump gas utility tractors

1шт.

G222-769

ELBOW - pressure hose to pump (69F - 3/8" O.D. x 3/8" P.T.), power steering attachment w/ gear driven pump gas utility tractors

1шт.

G222-938

ELBOW - hose to pump (649F - 3/8" O.D. x 1/4" P.T.) Use with old style pump w/1/4" P.T port holes, power steering attachment w/ gear driven pump gas utility tractors

2шт.

G222-1042

CONNECTOR - return hose to pump (Parker #6-1404-4, 3/8" O.D.), power steering attachment w/ gear driven pump gas utility tractors

1шт.
