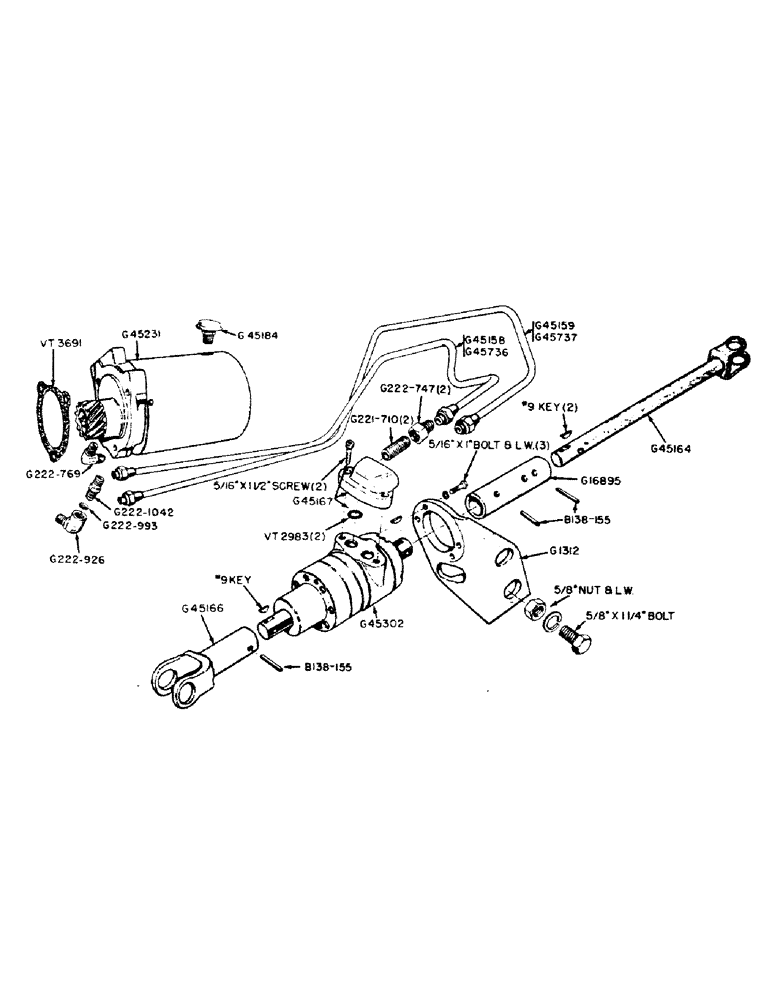

Запчасти Case IH 300B-SERIES (145) - POWER STEERING ATTACHMENT, GENERAL PURPOSE TRACTORS (05) - STEERING

G1312

BRACKET - mounting, booster motor

1шт.

5/8" x 1-1/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G16895

SLEEVE - upper connecting, booster, Serial Range: motor-shaft

1шт.

G30484

KIT

- pump replacement (includes G11346 generator bracket, G222-1042 connector, G222-769 elbow and G222-926 elbow) See Note

1шт.

G45158

TUBE - oil pressure, pump to booster (311B)

1шт.

G45159

TUBE - oil return, booster to pump (311B) 0.375" OD x 18.375" L

1шт.

G45164

SHAFT - steering

1шт.

G45166

SLEEVE - lower connecting (includes yokes)

1шт.

G45167

PORT BLOCK KIT - tubes to booster (includes (2) VT2983 "O" rings and (2) 5/16" x 1-1/2" N.C. socket hd. cap screws)

1шт.

G45184

BREATHER

- pump and reservoir

1шт.

G45231

PUMP, HYDRAULIC

PUMP AND RESERVOIR (includes G45184 breather) See Note

1шт.

3/8" x 3-1/8" N.C. hex. hd. bolt w/lockwasher

3шт.

G45302

PUMP, HYDRAULIC

BOOSTER MOTOR (includes G45167 port block kit)

1шт.

5/16" x 1" N.C. hex. hd. bolt w/lockwasher

3шт.

#9 Woodruff key

2шт.

G45336

SEAL KIT - booster motor (includes "O" rings and tube of Locktite sealout)

1шт.

G45736

TUBE - oil pressure, pump to booster (411B)

1шт.

G45737

TUBE - oil return, booster to pump (411B)

1шт.

VT2983

X

"O" RING - port block

2шт.

VT3691

X

GASKET -, Serial Range: pump-block

1шт.

B138-155

ROLL PIN - connecting sleeve (5/16" x 1-1/4")

3шт.

G221-710

NIPPLE - pipe, tube to booster (3/8" P.T. x 1-1/2" extra heavy)

2шт.

G222-747

COUPLING - tube to booster (46F - 3/8" O.D. x 3/8" P.T.)

2шт.

G222-769

ELBOW - pressure tube to pump (49F - 3/8" O.D. x 3/8" P.T.)

1шт.

G222-926

ELBOW - return tube (669F - 3/8" O.D. x 3/8" P.T., includes G222-993 gasket)

1шт.

G222-938

ELBOW - tube to pump (649F - 3/8" O.D. x 1/4" P.T.) Use on old style pumps w/1/4" P.T. port holes

2шт.

G30484

KIT

Use when replacing old style pump

1шт.

G222-993

GASKET - elbow (625F - 3/8")

1шт.

G222-1042

CONNECTOR - return tube to pump (Parker #6-1404-4, 3/8" O.D.)

1шт.

FOOTNOTE

1шт.

Note: See Ag Parts Bulletin No. 4-68 dated 5-20-68.
