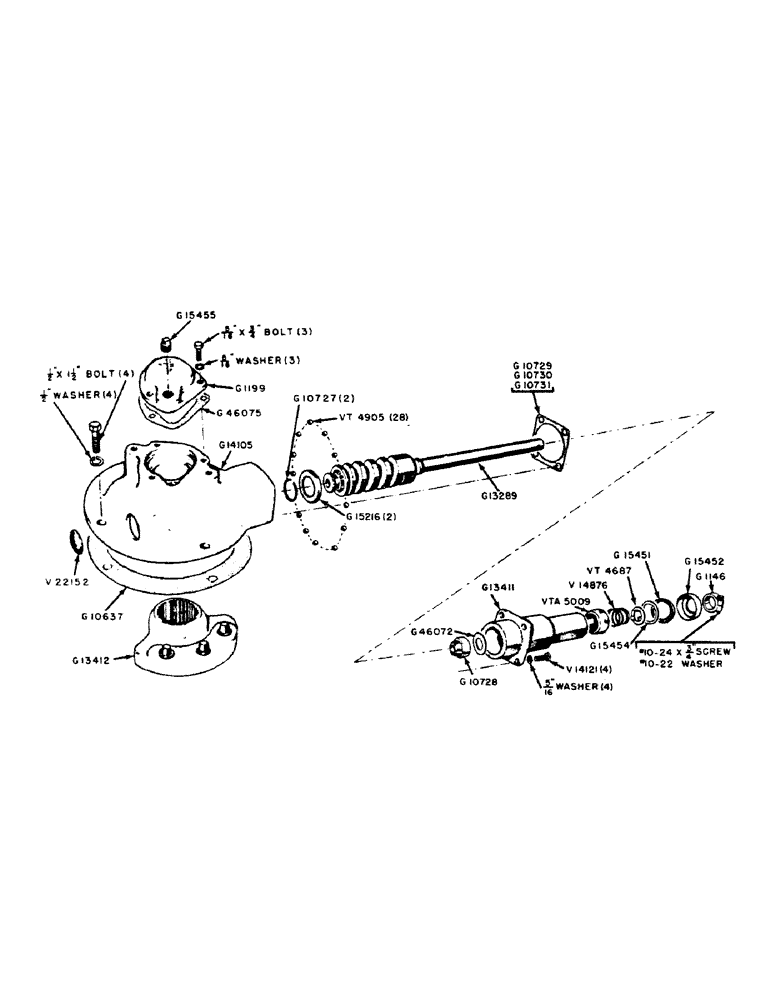

Запчасти Case IH 300B-SERIES (138) - STEERING GEAR CAM AND LEVER HOUSING, 312B TRACTOR AND 311B, 411B W/ SINGLE FRONT WHEEL (05) - STEERING

G1146

CLAMP - retaining, steering shaft

1шт.

#10-24 x 3/4" filister hd. mach. screw w/lockwasher

1шт.

G1186

HOUSING - steering (Use G14105)

1шт.

G1199

CAP - steering housing

1шт.

5/16" x 3/4" NC hex. hd. bolt w/lockwasher

3шт.

G10637

GASKET

- steering housing

1шт.

G10727

RING

- retaining, bearing cup

2шт.

G10728

SEAL

OIL SEAL - steering cam shaft

1шт.

G10729

SHIM,.003" Thk

Housing cover .003" Thk

1шт.

G10730

SHIM,.010" Thk

Housing cover .010" Thk

1шт.

G10731

SHIM,.002" Thk

Housing .002" Thk

1шт.

G13289

STEERING CAM AND SHAFT

1шт.

G13411

COVER - housing, steering shaft, includes G10728 oil seal and G46072 gasket

1шт.

G13412

LEVER - front steering

1шт.

G14105

HOUSING - steering, includes VT2097 bearing cup

1шт.

1/2" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

G15216

CUP ASSY.

CUP - bearing, steering cam

2шт.

G15451

FELT

SEAL - felt, outboard bearing

1шт.

G15452

CUP ASSY.

CUP - felt seal

1шт.

G15454

WASHER

- protective, G15451 felt washer

1шт.

G15455

PLUG - vented, G1199 cap (3/8" PT)

1шт.

G46072

GASKET

GASKET - for G10728 oil seal

1шт.

G46075

-, Serial Range: cap-housing

1шт.

V14121

SPRING

BOLT - housing cover (5/16" x 3/4" NC)

4шт.

5/16" lockwasher

4шт.

V14876

ARM

SPRING - bearing, steering shaft

1шт.

V22152

CAP

PLUG - expansion, steering housing (1-1/2" dia.)

2шт.

VT4687

WASHER

SEAT - spring, steering shaft bearing

1шт.

VT4905

X

BALL - cam bearing (5/16")

28шт.

VTA5009

X

BEARING ASSEMBLY - steering shaft

1шт.
