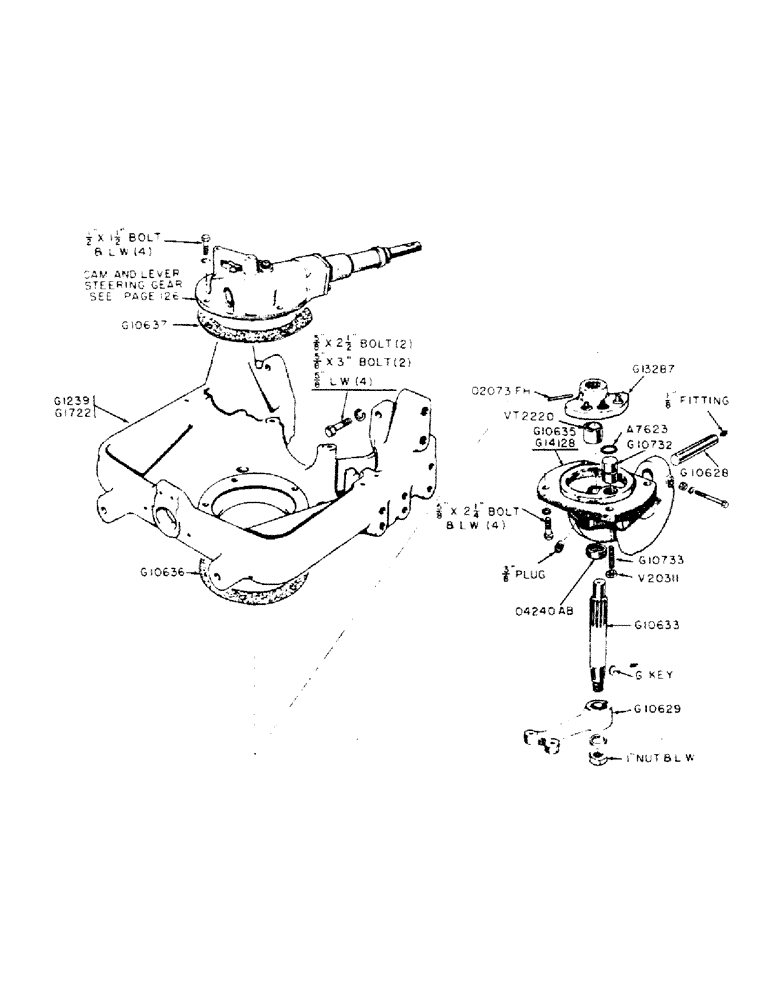

Запчасти Case IH 300B-SERIES (127) - STEERING LEVER SHAFT AND SUPPORT, 301B, 311B, 411B GENERAL PURPOSE TRACTORS (05) - STEERING

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug seal (1-1/4" dia.)

1шт.

G1048

SUPPORT (Use G10635)

1шт.

G1239

SUPPORT - front axle and radiator (Diesel engine)

1шт.

5/8" x 2-1/2" NF hex. hd. bolt w/hex. nut and lockwasher

2шт.

5/8" x 3" NF hex. hd. bolt w/hex. nut and lockwasher

2шт.

G1286

SUPPORT (Use G14128)

1шт.

G1722

X

SUPPORT - front axle and radiator (gasoline engine)

1шт.

5/8" x 2-1/2" NF hex. hd. bolt w/hex. nut and lockwasher

2шт.

5/8" x 3" NF hex. hd. bolt w/hex. nut and lockwasher

2шт.

G10628

PIN - pivot, center tube

1шт.

1/8" 45deg. fitting (Lincoln #5200)

1шт.

G10629

ARM - center steering

1шт.

#G Woodruff key

1шт.

G10633

SHAFT

- steering lever

1шт.

1" NF hex. nut and lockwasher

1шт.

G10635

SUPPORT

- axle pivot, includes VT2220 bushing (300B Series)

1шт.

3/8" std. sq. hd. pipe plug

1шт.

5/8" x 2-1/4" NF hex. hd. bolt w/hex. nut and lockwasher

4шт.

G10636

X

GASKET - pivot support to front end support

1шт.

G10637

GASKET

- steering housing to front end support

1шт.

G10732

PLUG - adjusting, steering lever

1шт.

G10733

SCREW - set, adjusting plug

1шт.

G13287

LEVER

- steering

1шт.

G14128

SUPPORT - axle pivot, includes VT2220 bushing (400B Series)

1шт.

3/8" std. sq. hd. pipe plug

1шт.

5/8" x 2-1/4" NF hex. hd. bolt w/hex. nut and lockwasher

4шт.

4240AB

OIL SEAL - upper, steering spindle

1шт.

2073FH

ROLL PIN - steering lever to steering shaft (1/4" x 2-1/4")

1шт.

V20311

X

NUT - lock, adjusting screw plug set screw

1шт.

VT2220

X

BUSHING - pivot support

1шт.
