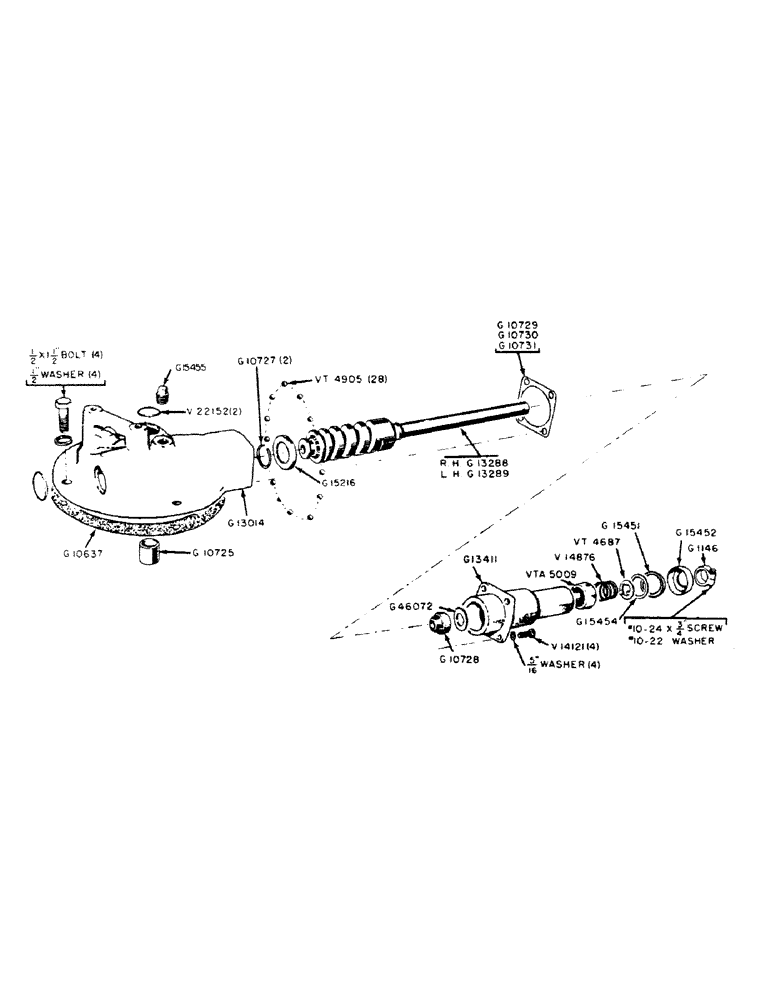

Запчасти Case IH 300B-SERIES (126) - STEERING GEAR CAM AND LEVER HOUSING (05) - STEERING

G1055

HOUSING (Use G13014)

1шт.

G1146

CLAMP - retaining, steering shaft

1шт.

#10 - 24 x 3/4" filister hd. mach. screw w/#10 lockwasher

1шт.

G10637

GASKET

- steering

1шт.

G10725

BUSHING

- steering housing

1шт.

G10727

RING

- retaining, bearing cup

2шт.

G10728

SEAL

OIL SEAL - steering cam shaft

1шт.

G10729

SHIM,.003" Thk

Housing cover .003" Thk

1шт.

G10730

SHIM,.010" Thk

Housing cover .010" Thk

1шт.

G10731

SHIM,.002" Thk

Housing cover .002" Thk

1шт.

G13014

HOUSING - steering, includes G10725 bushing

1шт.

1/2" x 1-1/2" NC hex. hd. bolt w/lockwasher

4шт.

G13288

CAM

STEERING CAM AND SHAFT. Utility

1шт.

G13289

STEERING CAM AND SHAFT (Gen. Purpose)

1шт.

G13411

COVER - housing, steering shaft (includes G10728 oil seal, and G46072 gasket)

1шт.

G15216

CUP ASSY.

CUP - bearing, steering cam

2шт.

G15451

FELT

SEAL - felt, outboard bearing

1шт.

G15452

CUP ASSY.

CUP - felt seal

1шт.

G15454

WASHER

- protective, G15451 Seal

1шт.

G15455

PLUG - vented, G13014 housing

1шт.

G46072

GASKET

GASKET - for G10728 seal

1шт.

V14121

SPRING

BOLT - housing cover (5/16" x 3/4" NC)

4шт.

5/16" lockwasher

4шт.

V14876

ARM

SPRING - bearing, steering shaft

1шт.

V22152

CAP

PLUG - expansion, steering housing (1-1/2" dia.)

2шт.

VT4687

WASHER

SEAT - spring, steering shaft bearing

1шт.

VT4905

X

BALL - cam bearing (5/16")

28шт.

VTA5009

X

BEARING ASSEMBLY - steering shaft

1шт.
