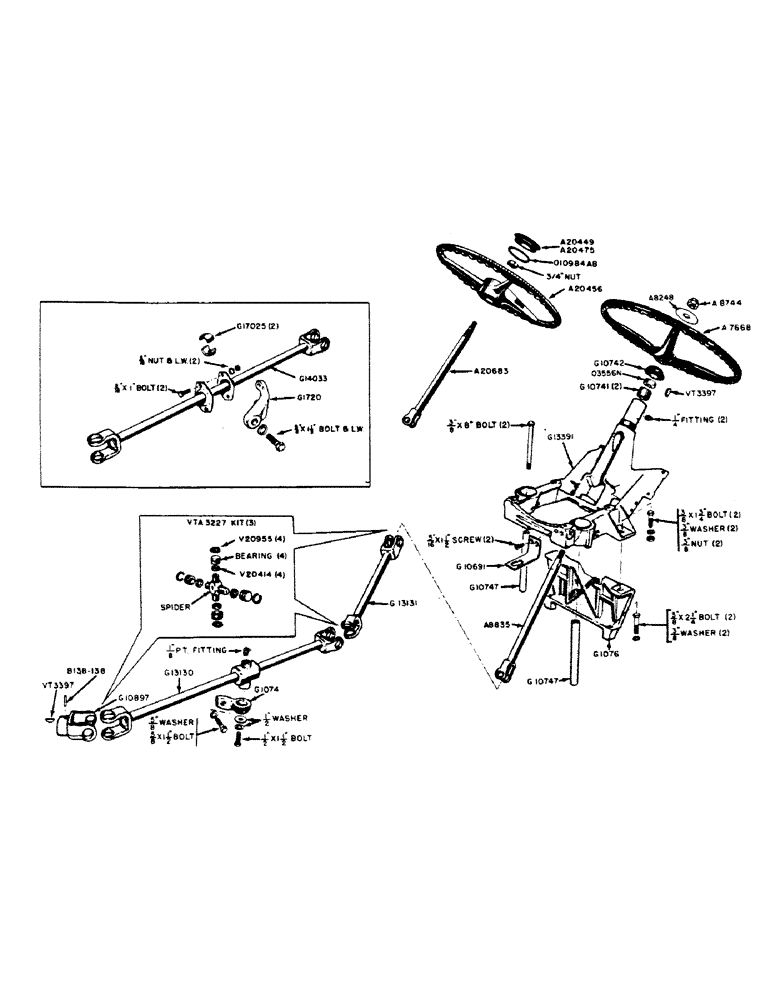

Запчасти Case IH 300B-SERIES (124) - STEERING WHEEL, SHAFTS AND UNIVERSALS, 300B SERIES TRACTORS (05) - STEERING

B138-138

ROLL PIN - front universal joint (1/4" x 1-1/2")

1шт.

A7668

WHEEL

- steering (Before tractor #6120001)

1шт.

A8744

NUT

- steering wheel to shaft (Before tractor #6120001)

1шт.

A8248

PLATE - name (Power Steering) (Before tractor #6120001)

1шт.

A8835

SHAFT - upper, includes yokes (Before tractor #6120001)

1шт.

A20449

EMBLEM CASE/IH

MEDALLION - steering wheel (Tractor #6120001 and after)

1шт.

A20456

WHEEL (STEERING)

WHEEL - steering (Tractor #6120001 and after)

1шт.

3/4" N.F. hex. jam nut

1шт.

A20475

CAP

MEDALLION - steering wheel, Power Steering (Tractor #6120001 and after)

1шт.

A20683

SHAFT - upper, includes yokes (Tractor #6120001 and after)

1шт.

G1074

SUPPORT - bearings, lower shaft (Before tractor #6108203)

1шт.

G1075

SUPPORT (Use G13391)

1шт.

G1076

BRACKET - rear mounting, steering support

1шт.

3/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G1184

SUPPORT (Use G13391)

1шт.

G1720

SUPPORT - bearing, lower shaft (Tractor #6108203 and after)

1шт.

5/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

1шт.

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- steering shaft, upper

2шт.

G10742

SEAL

- dust, upper steering shaft

1шт.

G10747

PIPE - front support (7-3/8" long) 0.75" OD x 7.375" L

2шт.

G10897

YOKE

- front universal joint

1шт.

G13130

SHAFT LOWER (Includes yokes and bearing) Before tractor #6108203

1шт.

1/8" 45deg. fitting (Lincoln #5200)

1шт.

1/2" x 1-1/2" N.C. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G13131

SHAFT - intermediate (Includes yokes)

1шт.

G13391

SUPPORT - upper steering shaft (Includes 2 - G10741 bushings)

1шт.

1/4" str. fitting (Lincoln #5013)

2шт.

3/8" x 1-3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G14033

SHAFT - lower (Includes yokes and bearing holders) Tractor #6108203 and after

1шт.

5/16" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G17025

CYLINDER END CAP

BEARING HALF - G14033 shaft (Tractor #6108302 and after)

2шт.

10984AB

"O" RING - medallion (Tractor #6120001 and after)

1шт.

VT642

BEARING (Use G13130)

1шт.

VT3397

KEY - Woodruff, steering wheel and universal joint

2шт.

VTA3227

X

KIT - universal joint spider (Includes spider, 4 - bearings, 4 - V20414 washers and 4 - V20953 snap rings)

3шт.

3556N

COLLAR - thrust, upper shaft (only Gen. Purpose w/Power Steering)

1шт.

1/4" x 3/8" N.C. Socket hd. cup point set screw

1шт.

V20414

WASHER - cork, universal joint (See VTA3227)

12шт.

V20955

X

SNAP RING - universal joint (See VTA3227)

12шт.
