(079) - ELECTRIC HORN ATTACHMENT

Запчасти Case IH 300B-SERIES (079) - ELECTRIC HORN ATTACHMENT (04) - ELECTRICAL SYSTEMS

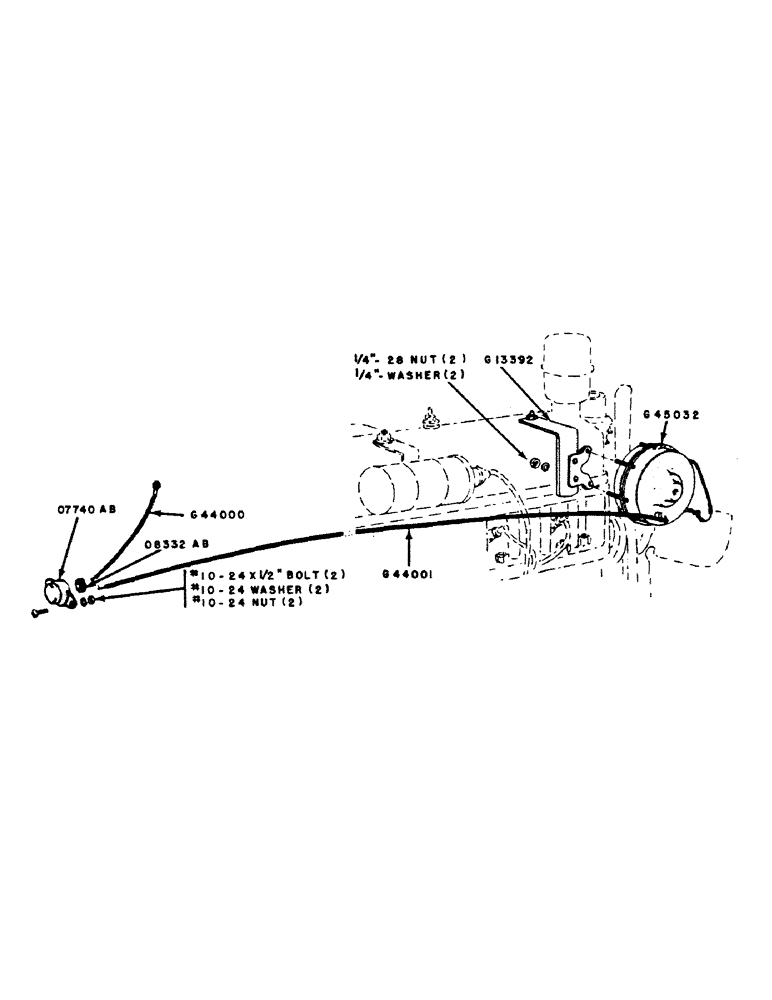

Схема запчастей Case IH 300B-SERIES - (079) - ELECTRIC HORN ATTACHMENT (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G13357

BRACKET - horn mounting (diesel engine)

1шт.

G13392

BRACKET - horn mounting (Spark ignition engine)

1шт.

G44000

CABLE - horn button to ammeter (11" long)

1шт.

G44001

CABLE - horn button to horn (65" long)

1шт.

G45033

HORN - electric (12 volt)

1шт.

1/4" NF hex. nut and lockwasher

2шт.

7740AB

HORN BUTTON

1шт.

#10-24 x 1/2" rd. hd. mach screw w/hex. nut and lockwasher

2шт.

8332AB

GROMMET - rubber

1шт.
