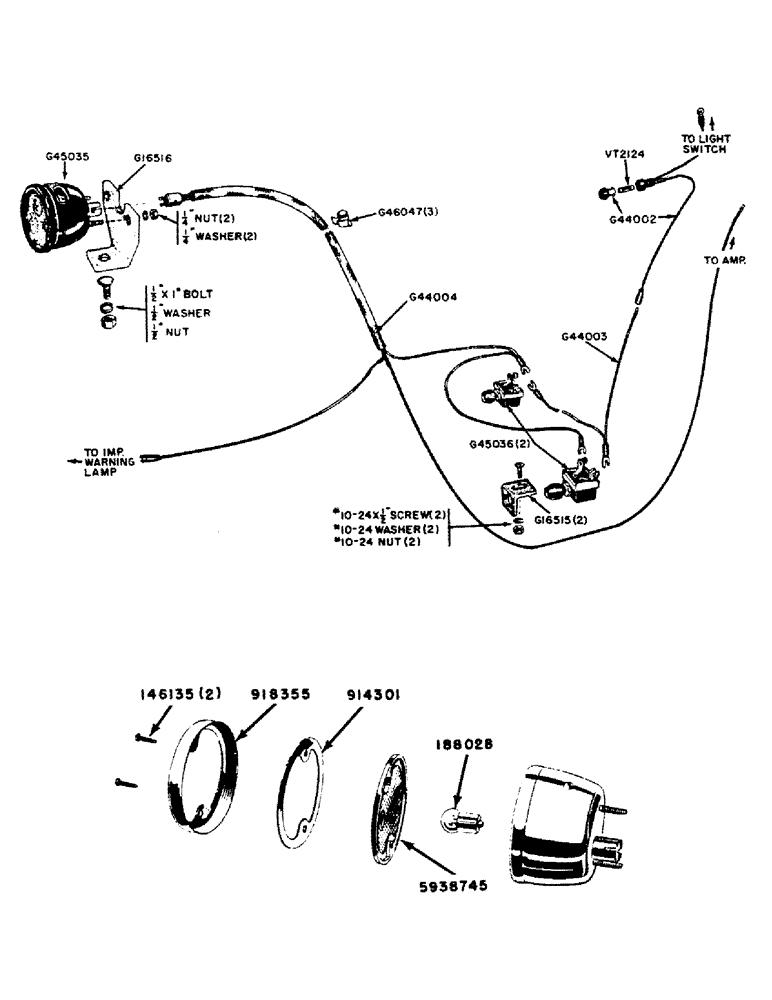

Запчасти Case IH 300B-SERIES (078) - STOP LIGHT ATTACHMENT (04) - ELECTRICAL SYSTEMS

G16515

BRACKET - mounting, stop light switch

2шт.

#10-24 x 1/2" rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

G16516

BRACKET - mounting, stop light

1шт.

1/2" x 1" carr. bolt w/hex. nut and lockwasher

1шт.

G44002

CABLE - ammeter to stop light cable, includes VT2124 fuse

1шт.

G44003

CABLE - fuse to stop light switches

1шт.

G44004

CABLE - stop light to stop light switches and main light switch cable

1шт.

G45035

LIGHT - stop and tail, combination (12 volt)

1шт.

1/4" NC hex. nut and lockwasher

2шт.

G45036

SWITCH - stop light

2шт.

G46047

CLIP -, Serial Range: cable-fender

3шт.

VT2124

X

FUSE (#3 - 20 amp.)

1шт.

146135

SCREW - door, parts for G45035 stop lamp

2шт.

188028

PLATE,2C2V, #1251R, 12.8V

- 3 C.P., double filament, 12-16 volt, parts for G45035 stop lamp

1шт.

914301

GASKET - lens, parts for G45035 stop lamp

1шт.

918355

DOOR, parts for G45035 stop lamp

1шт.

5938745

LENS, parts for G45035 stop lamp

1шт.
